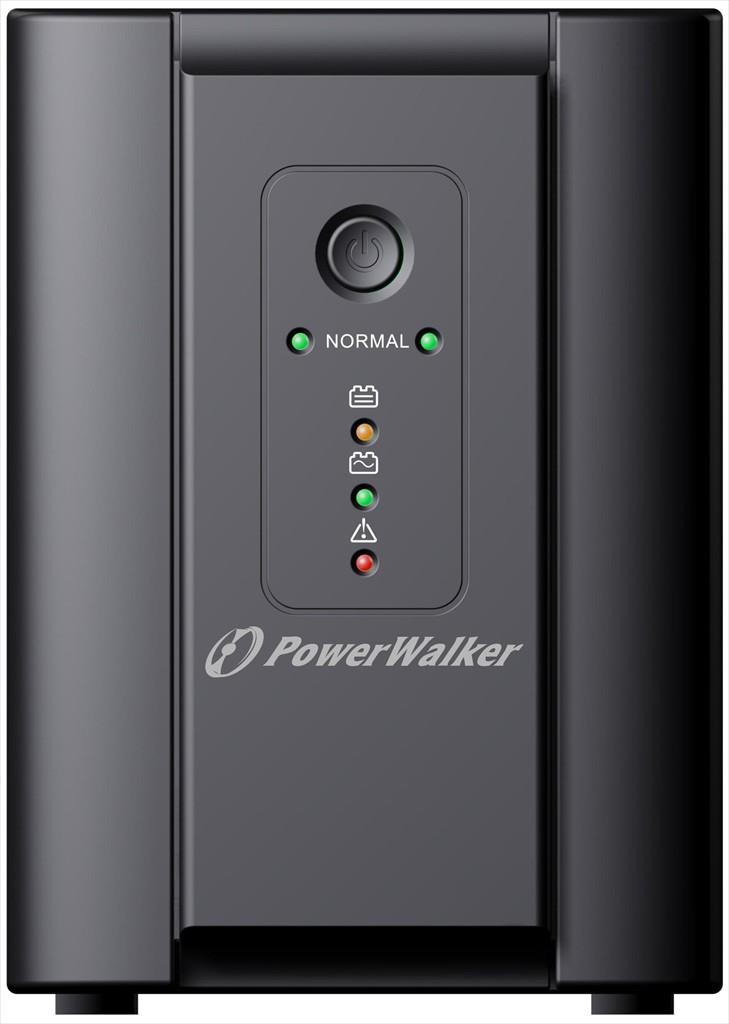

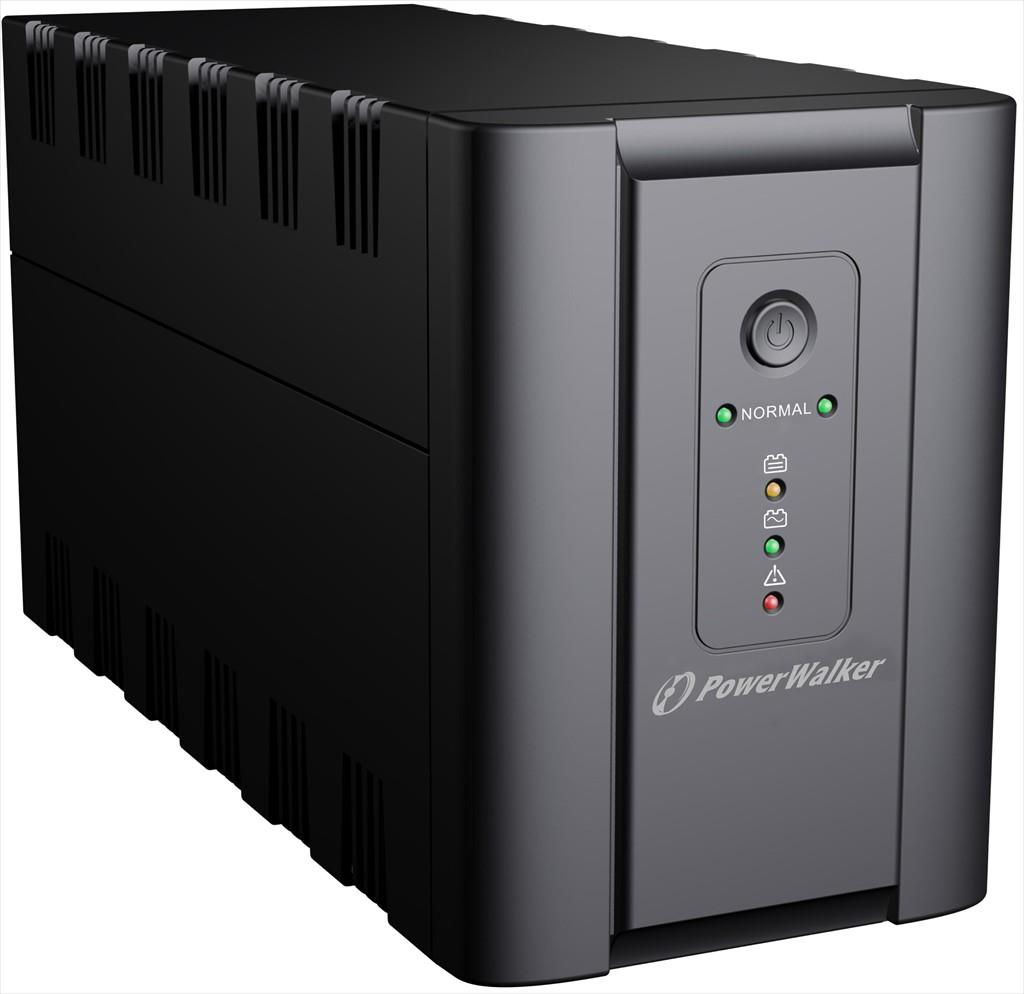

Model Name: VI 1200 SH PowerWalker
Features
- Line-interactive (VI) UPS with 1200 VA / 600 W power capacity
- Human Interface Device (HID) supported for native OS integration
- Data line surge protection via RJ-11 and RJ-45 ports (100 Mbit)
- Multiple output sockets: Type F, IEC C13, with C14 input connector
- Silent operation without fan for quiet environments
- Automatic Voltage Regulator (AVR) for stable output voltage
- Includes WinPower monitoring software via USB Type B connection
Specification
- UPS type: Line-Interactive (VI)
- Phases (IN-OUT): 1-1
- Form factor: Tower
- Power capacity: 1200 VA / 600 W
- Output power factor: 0.50
- Input voltage range: 170–280 VAC ±7%
- Input frequency range: 50 Hz or 60 Hz (self-adaptive)
- Waveform: Simulated sine wave
- Nominal output voltage: 230 VAC
- Output frequency (battery mode): ±1 Hz
- Input connector: C14

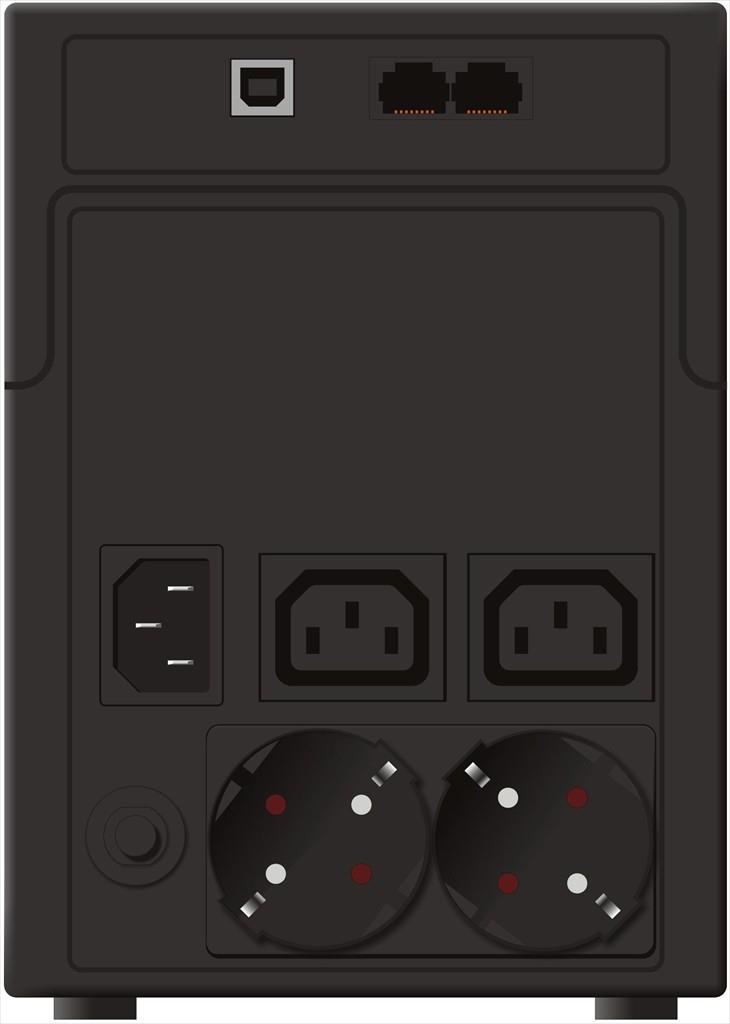

- Output sockets: 2 × Type F (CEE 7/3), 2 × IEC C13
- LINE mode efficiency (full load): 95.0%
- Battery mode efficiency (full load): 60.0%
- Transfer time (AC/Line to battery): 4–8 ms
- Data line protection: RJ-11 port, RJ-45 port (100 Mbit)
- Additional features: Circuit breaker reset, HID support, AVR
- IEC 62040-3 classification: VI-SY-333
- Batteries: 2 × 12.0 V / 7.0 Ah
- DC voltage: 2 × 12.0 V
- Charger current: 1.2 A
- Recharge time: 4 h to 90%
- Full load backup time: 1.3 min
- Half load backup time: 11.0 min
- Communication: USB Type B – for monitoring software
- Software: WinPower
- Noise level: < 30 dB
- Fan logic: No fan
- Operating temperature: 0°C – 40°C
- Humidity: 0% – 90% RH (non-condensing)
- IP rating: IP20
