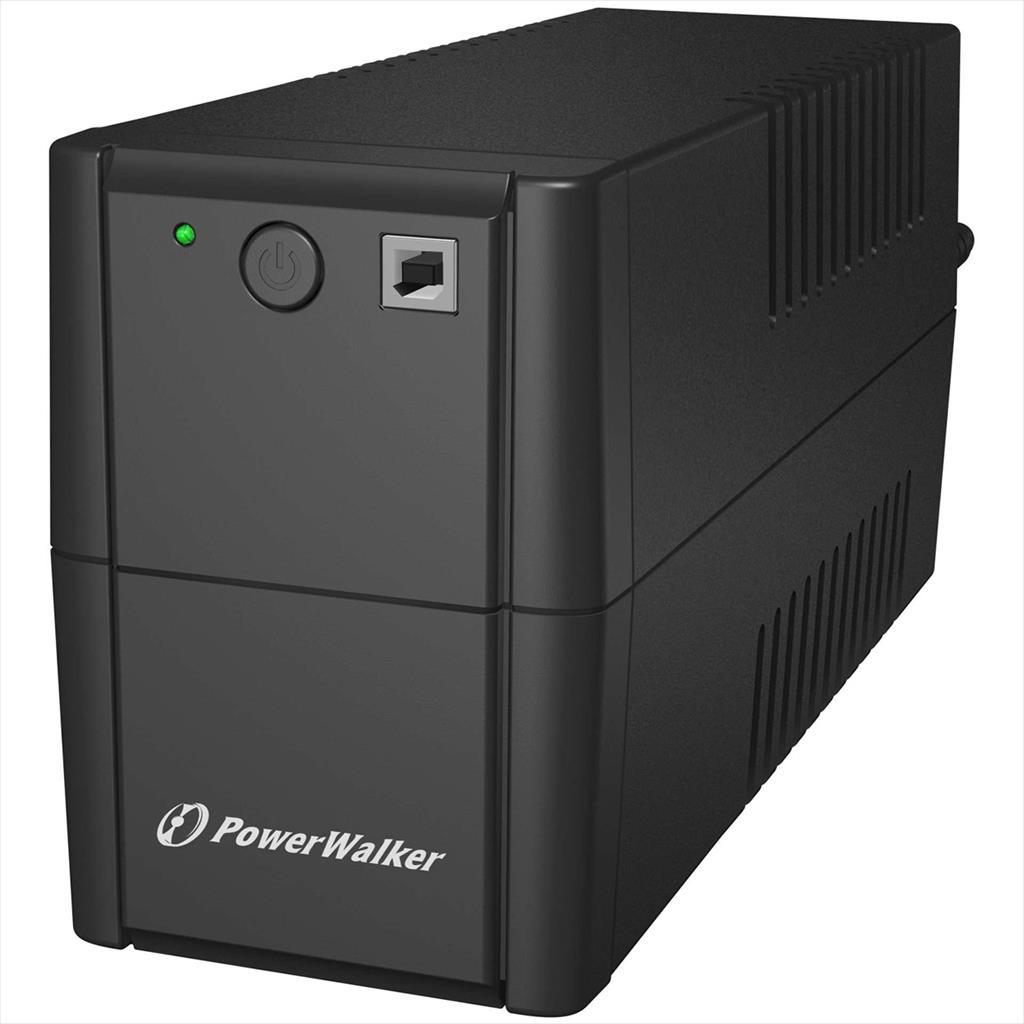

Ups 850va / 480w powerwalker vi 850 sh, 2xshuko, usb, rj11, 10120049

Model name: POWERWALKER VI 850 SH

Specifications:

• General Features
• Type: Line-Interactive (VI)
• Phases (IN-OUT): 1-1
• Form Factor: Tower
• Power Capacity: 850VA / 480W
• Output Power Factor: 0.56
• Input
• Input Voltage Range: 170-280 VAC ±7%
• Frequency Range: 50Hz or 60Hz (self-adaptive)
• Output
• Waveform: Simulated Sine Wave
• VA: 850
• Nominal Output Voltage: 230 VAC
• Frequency (Battery Mode): ±1Hz
• Output Power Factor: 0.56

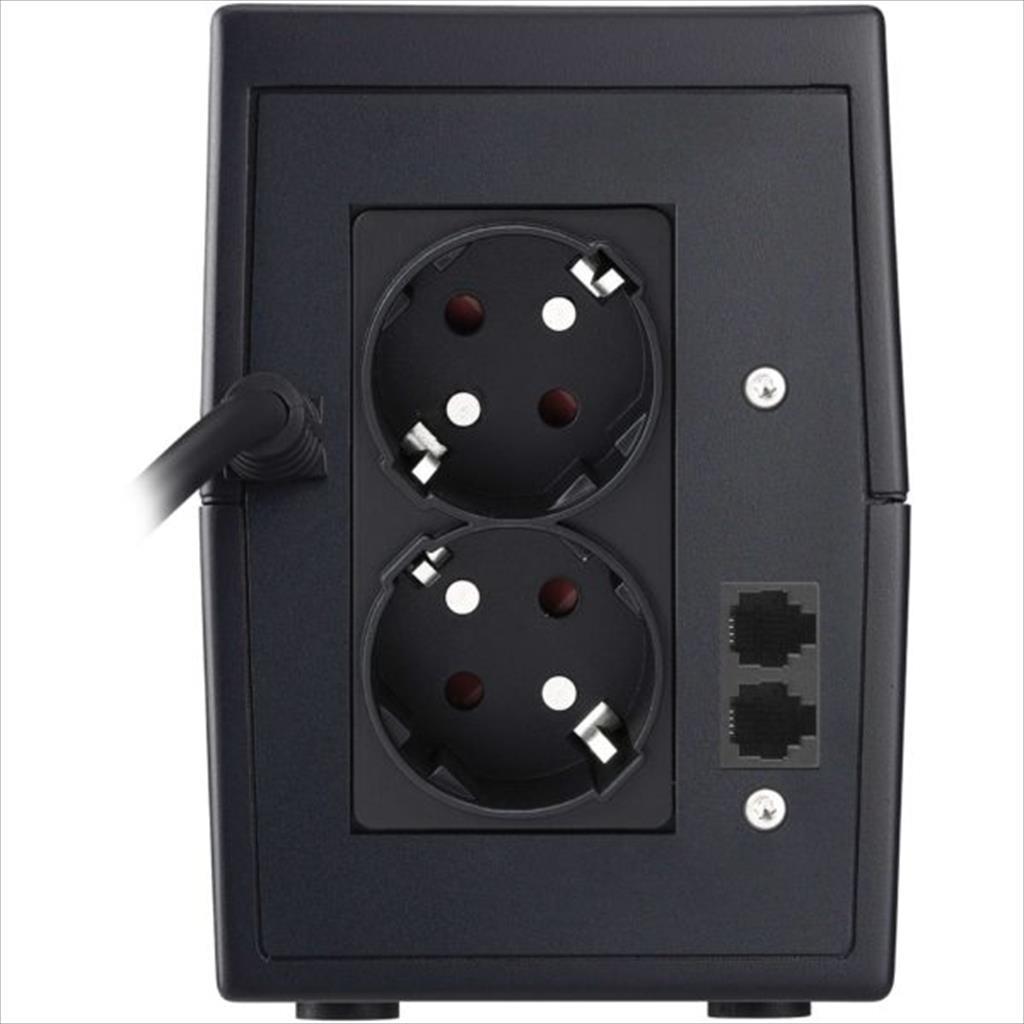

• Input & Output Connectors
• Input Connector: CEE 7/7
• Type F (CEE 7/3): 2
• Technical Details
• LINE Mode Efficiency [%] (Full Load): 95.0
• Battery Mode Efficiency [%] (Full Load): 60.0
• Transfer Time (AC / Line Mode to Battery Mode) [ms]: 4-8ms
• Data Line Protection: RJ-11 Port
• Additional Features: Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
• IEC 62040-3 classification: VI-SY-333
• Batteries and Autonomy
• Batteries: 1x 12.0V/9.0Ah
• DC Voltage: 1x 12.0V
• Recharge Time: 4h to 90%
• Full Load Backup Time [min]: 0.1
• Half Load Backup Time [min]: 6.0
• Charger: 1.2A
• Recharge Time: 4h to 90%
• Communication
• Communication: USB Type B – for Monitoring Software
• Software: WinPower
• Management and Environment
• Software: WinPower
• Communication: USB Type B – for Monitoring Software
• Noise Level: < 30dB
• Fan Logic: No fan
• Temperature: 0°C – 40°C
• Humidity: 0% – 90% RH (non-condensing)
• IP: IP 20
