Model Name: TUF GAMING B450-PLUS II
Features
- ASUS TUF Gaming series ATX motherboard with AMD B450 chipset
- AM4 socket supporting AMD Ryzen processors (APU required for integrated graphics output)
- 4× DDR4 DIMM slots supporting DDR4 2666 MHz (up to 3466 MHz OC)
- PCI-Express slot(s) for discrete graphics cards
- Onboard video outputs: HDMI and DVI (with iGPU-ready APU)
- High-quality onboard audio with Realtek ALC1220 codec
- 1× M.2 slot and 6× SATA3 ports for storage expansion

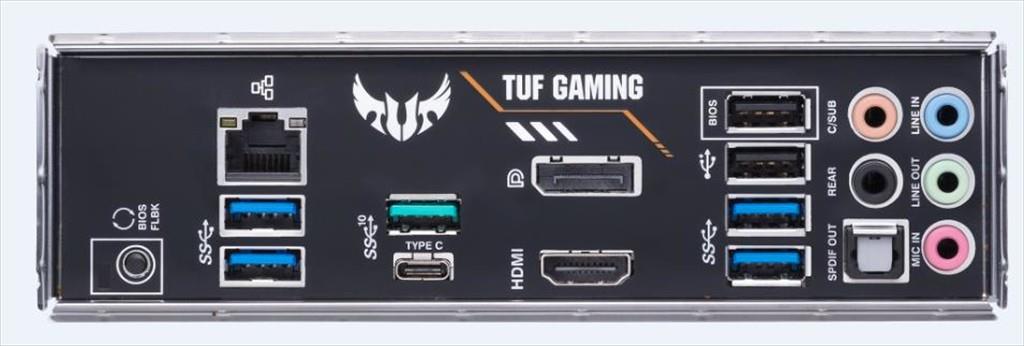

- Multiple USB 3.2 Gen1/Gen2 and USB-C ports on rear I/O
- 2× internal RGB 12V headers for lighting customization
Specification
- Series: ASUS TUF Gaming
- Form factor: ATX
- Chipset: AMD B450
- Socket: AM4
- Memory type: DDR4
- RAM slots: 4
- Memory support: DDR4 2666 MHz (up to 3466 MHz OC)
- Graphics support: PCI-Express graphics cards
- Integrated graphics: Only with iGPU-ready APU
- Video outputs: 1 × HDMI, 1 × DVI, 0 × D-Sub, 0 × DisplayPort
- Audio: Integrated sound card, Realtek ALC1220
- PCI slots: 0 legacy PCI
- External USB 2.0: 2
- External USB 3.2 Gen1 (USB 3.0): 4
- External USB 3.2 Gen2 Type-A: 1
- External USB 3.2 Gen2 Type-C: 1
- External USB 4.0 Type-C: 0
- Internal USB 2.0 headers: 2
- Internal USB 3.0 (3.2 Gen1) headers: 1
- Internal USB Type-C headers: 0
- Internal A-RGB 5 V (3-pin): 0
- Internal RGB 12 V (4-pin): 2
- M.2 slots: 1
- SATA3 ports: 6
