MB 1851 H810M-H ASROCK, 2xDDR5 6400MHz, M.2, HDMI, PCIex16 4.0, PCIex1, 4xSATAIII, 4xUSB3.2Gen1, 7.1 ChannelsMB 1851 H810M-H ASROCK, 2xDDR5 6400MHz, M.2, HDMI, PCIex16 4.0, PCIex1, 4xSATAIII, 4xUSB3.2Gen1, 7.1 Channels

Model name: ASROCK H810M-H

Specifications:

• CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors
  (Go to GIGABYTE’s website for the latest CPU support list.)
  L3 cache varies with CPU
• Chipset: Intel® H810 Express Chipset
• Memory:
  • Support for DDR5 6400/5600 MT/s memory modules
  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Support for Extreme Memory Profile (XMP)
• Onboard Graphics:
  • 1 x HDMI port, max resolution 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)
  • 1 x D-Sub port, max resolution 1920×1200@60 Hz
• Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots:
  • CPU: 1 x PCIe x16 slot (PCIe 4.0, x16)
  • Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1)
• Storage Interface:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, 1, 5, 10 support for SATA devices
• USB:
  • 1 x USB Type-C® (USB 3.2 Gen 1, internal header)
  • 3 x USB 3.2 Gen 1 (1 rear, 2 internal header)
  • 3 x USB 2.0/1.1 (1 rear, 2 internal header)
  • 4 x USB 2.0/1.1 on back panel (via USB 2.0 Hub)
• Internal I/O Connectors:
  • 1 x 24-pin ATX power
  • 1 x 8-pin ATX 12V power
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable RGB Gen2 headers
  • 1 x M.2 Socket 3
  • 4 x SATA 6Gb/s
  • 1 x front panel header
  • 1 x front panel audio
  • 1 x S/PDIF Out
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1
  • 1 x USB 2.0/1.1
  • 1 x TPM header
  • 1 x serial port header
  • 1 x Clear CMOS jumper

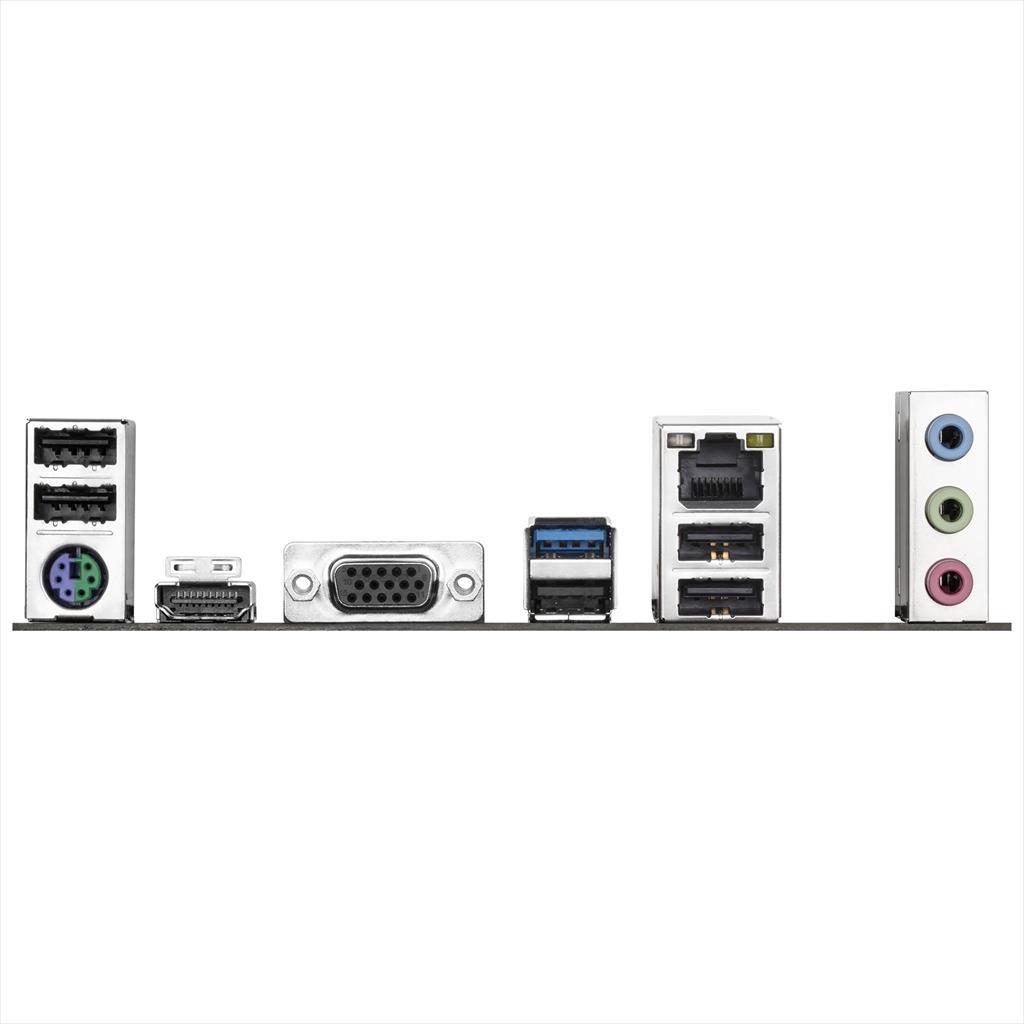

• Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse
  • 1 x HDMI
  • 1 x D-Sub
  • 1 x USB 3.2 Gen 1
  • 5 x USB 2.0/1.1
  • 1 x RJ-45
  • 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
• BIOS:
  • 1 x 256 Mbit flash
  • AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Bundled Software:
  • Norton® Internet Security (OEM)
  • LAN bandwidth management software
• Operating System:
  • Windows 11 64-bit
  • Windows 10 64-bit
• Form Factor: Micro ATX (24.4cm x 21.5cm)
