Ups 1200va/600w powerwalker basic vi 1200 shl, 2xshuko, usb

Model name: POWERWALKER BASIC VI 1200 SHL

Specifications:

• Type: Line-Interactive (VI)
• Phases (IN-OUT): 1-1
• Form Factor: Tower
• Power Capacity: 1200VA / 600W
• Output Power Factor: 0.50
• Input:
  • Input Voltage Range: 170-280 VAC ±7%
  • Frequency Range: 50Hz or 60Hz (self-adaptive)
• Output:
  • Waveform: Simulated Sine Wave
  • VA: 1200
  • Nominal Output Voltage: 230 VAC
  • Frequency (Battery Mode): ±1Hz
  • Output Power Factor: 0.50

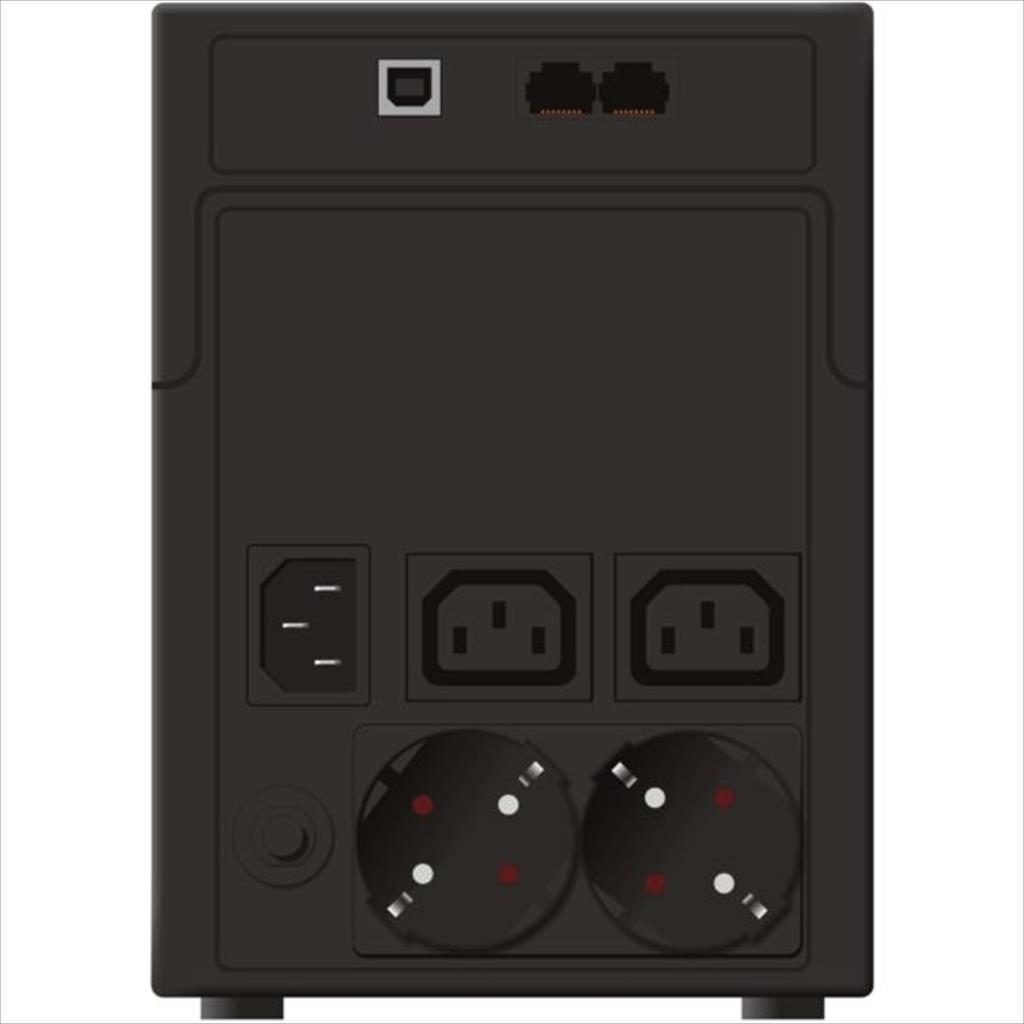

• Input & Output Connectors:
  • Input Connector: C14
  • Type F (CEE 7/3): 2
  • IEC C13: 2
• Technical Details:
  • LINE Mode Efficiency (Full Load): 95.0%
  • Battery Mode Efficiency (Full Load): 60.0%
  • Transfer Time (AC / Line Mode to Battery Mode): 4–8ms
  • Data Line Protection: RJ-11 Port, RJ-45 Port (100mbit)
  • Additional Features: LCD Display, Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
  • IEC 62040-3 Classification: VI-SY-333
• Batteries and Autonomy:
  • Batteries: 2x 12.0V/7.0Ah
  • DC Voltage: 2x 12.0V
  • Recharge Time: 4h to 90%
  • Full Load Backup Time: 1.3 min
  • Half Load Backup Time: 11.0 min
  • Charger: 1.2A
• Communication:
  • Communication: USB Type B – for Monitoring Software
  • Software: WinPower
• Management and Environment:
  • Noise Level: < 30dB
  • Fan Logic: No fan
  • Temperature: 0°C – 40°C
  • Humidity: 0% – 90% RH (non-condensing)
  • IP: IP 20
