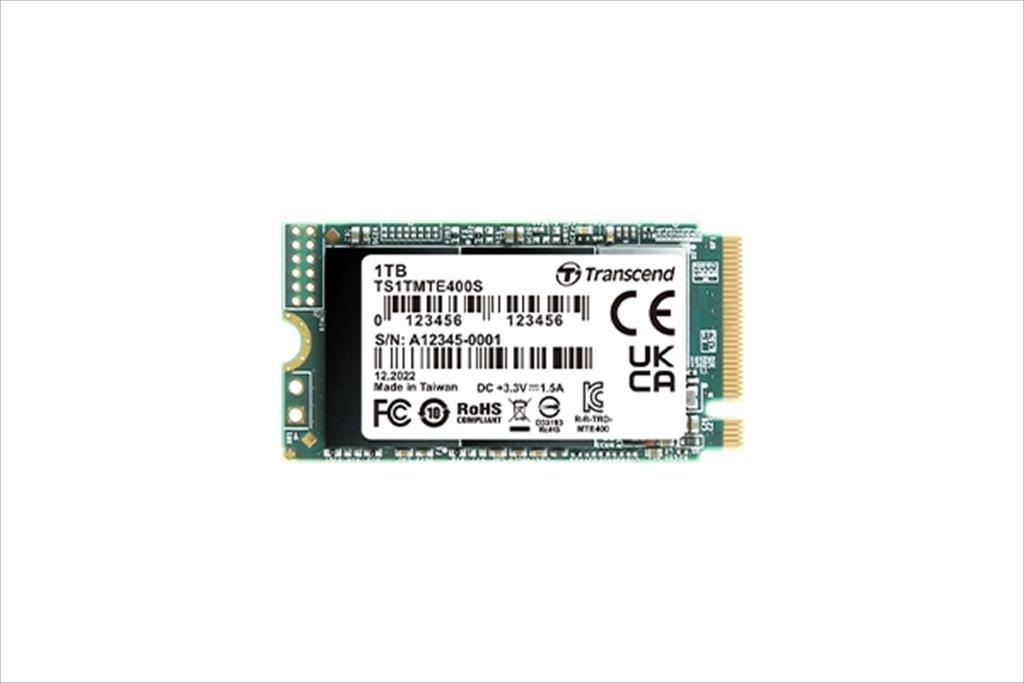

SSD Specifications

• Dimensions: Single-sided 42 mm x 22 mm x 2.23 mm (1.65″ x 0.87″ x 0.09″)
• Weight: 5 g (0.18 oz)
• Type: M.2 2242
• Interface: NVMe PCIe Gen3 x4
• Storage: 3D NAND flash
• Capacity: 256 GB/512 GB/1 TB
• Operating Environment: Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
• Operating Voltage: 3.3V±5%
• Performance (Sequential Read/Write – CrystalDiskMark):
  1 TB – up to 2,000/1,700 MB/s
  512 GB – up to 2,000/900 MB/s
  256 GB – up to 2,000/1,000 MB/s
• Performance (4K Random Read/Write – IOmeter):
  1 TB – up to 102,000/275,000 IOPS
  512 GB – up to 53,000/235,000 IOPS
  256 GB – up to 60,000/240,000 IOPS
• Terabytes Written (TBW):
  1 TB – 400 TBW
  512 GB – 200 TBW
  256 GB – 100 TBW
• Mean Time Between Failures (MTBF): 2,000,000 hour(s)
• Drive Writes Per Day (DWPD): 0.21 (5 yrs)
• Note: Speed may vary due to host hardware, software, usage, and storage capacity.
  The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  Terabytes Written (TBW) expresses the endurance under the highest capacity.
  Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
