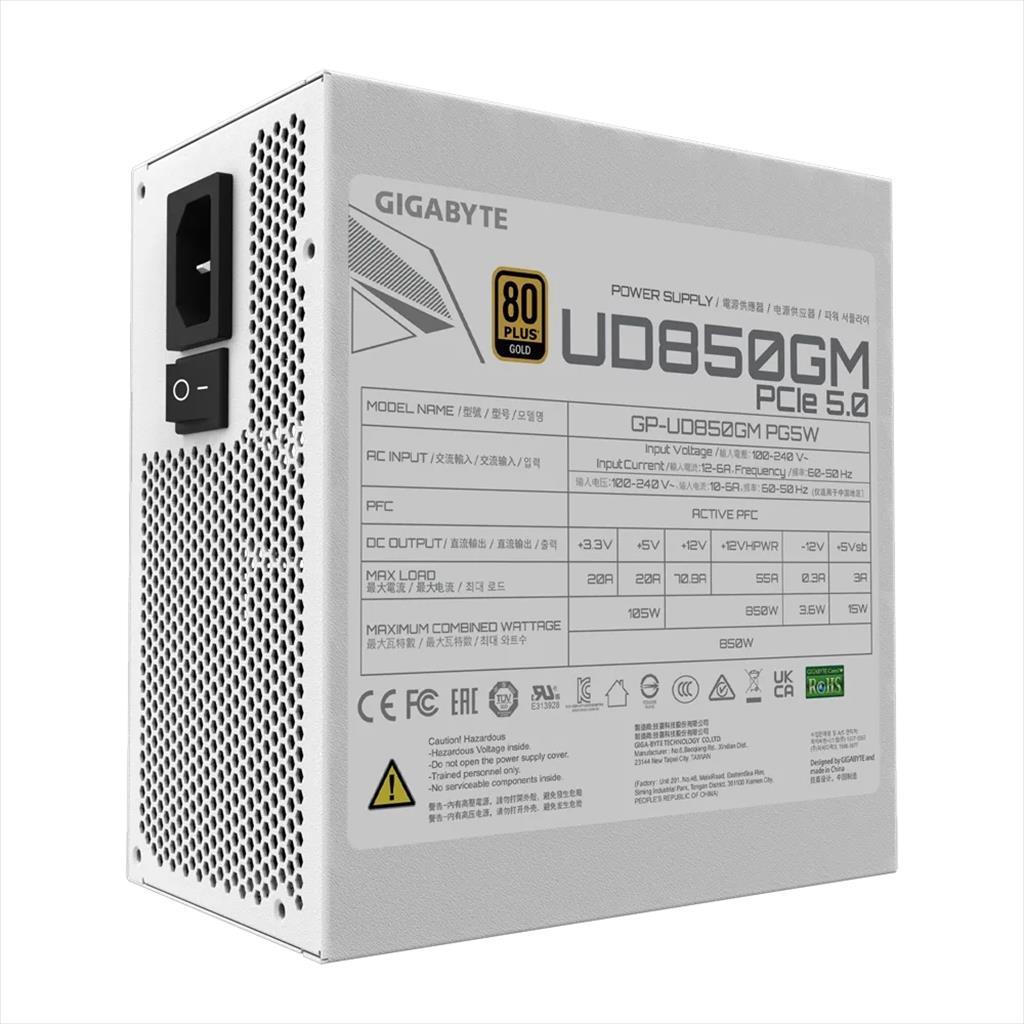

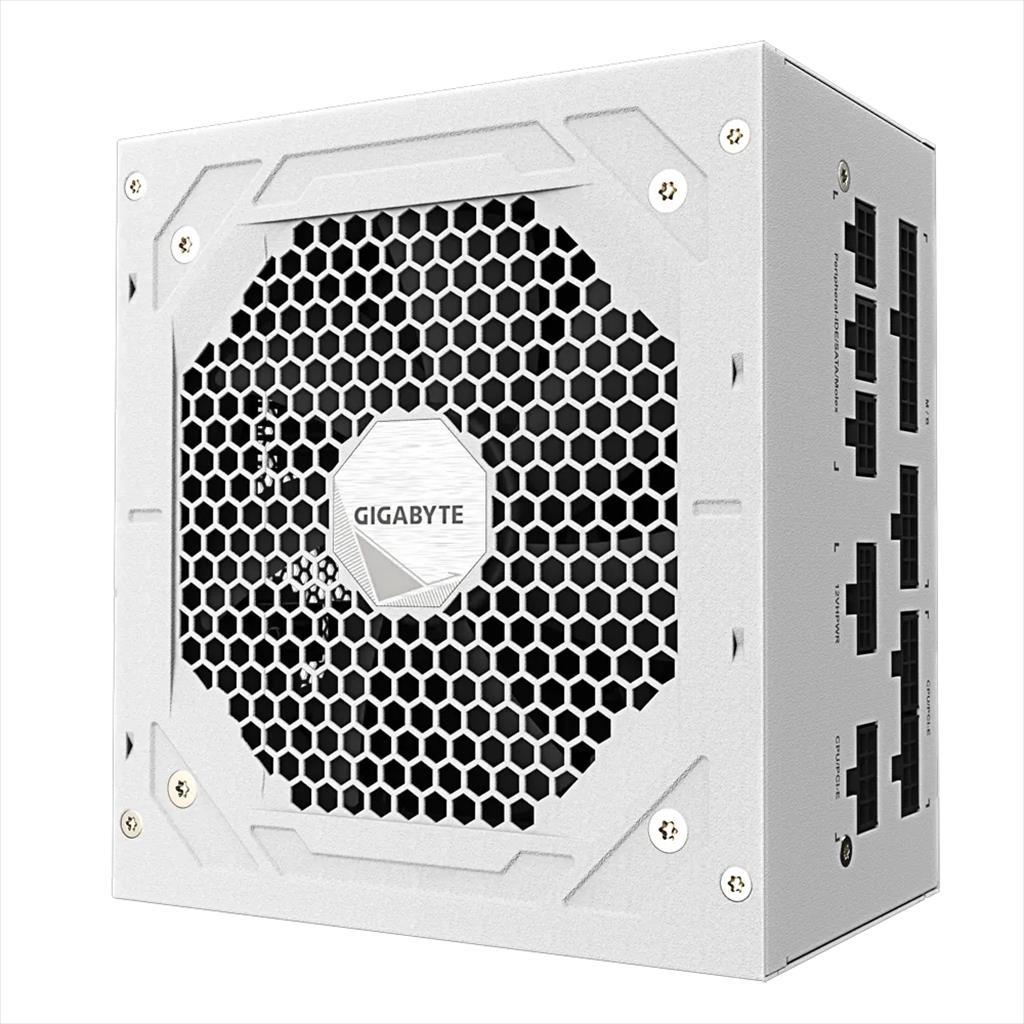

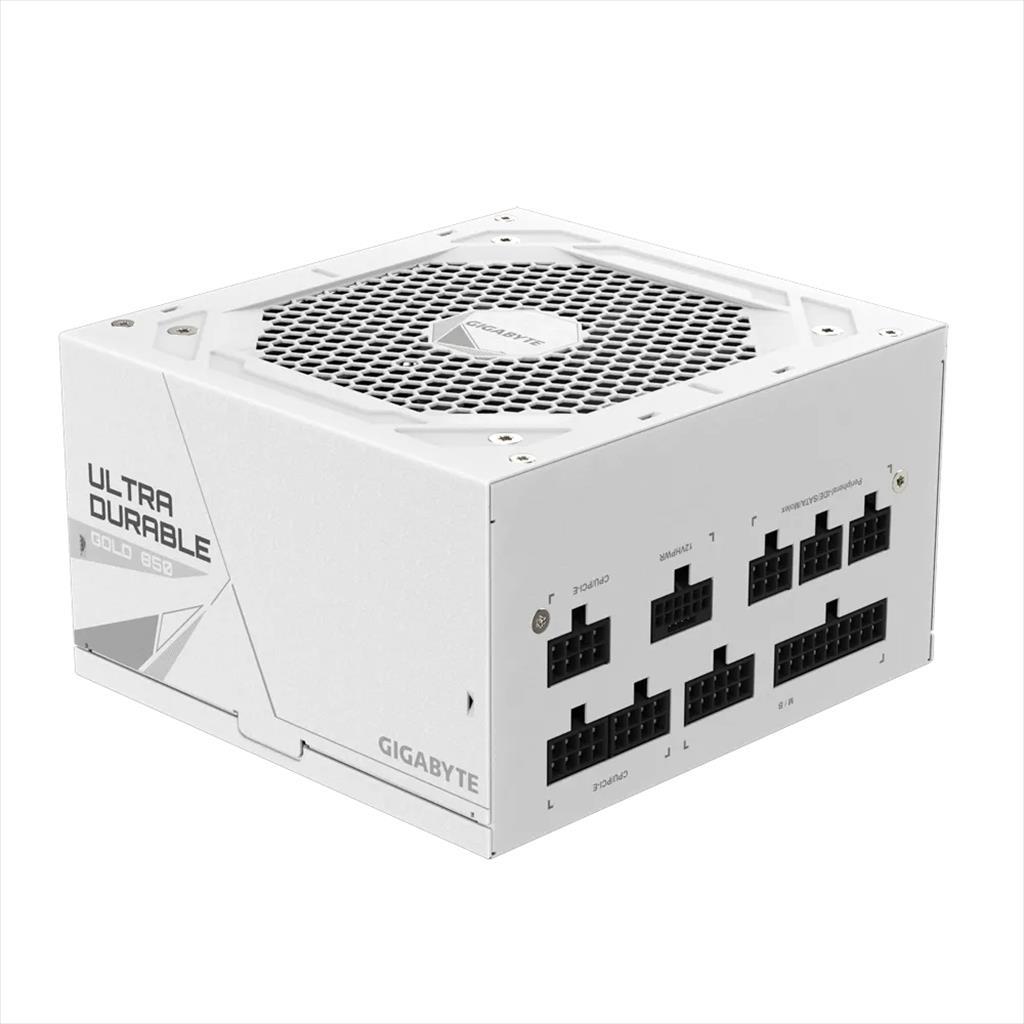

Model Name: GIGABYTE UD850GM PG5W 80 PLUS GOLD
Specification :
- Type: Intel Form Factor ATX 12V v3.0
- PFC: Active PFC (>0.9 typical)
- Input Voltage: 100-240 Vac (full range)
- Input Current: 12-6A
- Input Frequency: 60-50 Hz
- Output Capacity: 850W
- Dimension: 150 x 140 x 86 mm
- Fan Type: 120mm Hydraulic Bearing(HYB)fan
- 80 PLUS: Gold
- Efficiency: 90% at typical load
- MTBF: >100,000 hours
- Protection: OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal: 100-150ms
- Hold Up Time: >16ms
- Cable Type: Flat, All white
- Connectors:
- ATX/MB 20+4 Pin x 1: 610mm*1
- CPU/EPS 4+4 Pin x 2: 600mm+200mm*1
- PCI-e 16 Pin x 1: 700mm*1
- PCI-e 6+2 Pin x 4: 600mm+150mm*2
- SATA x 8: 600mm+150mm+150mm+150mm*2
- 4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
