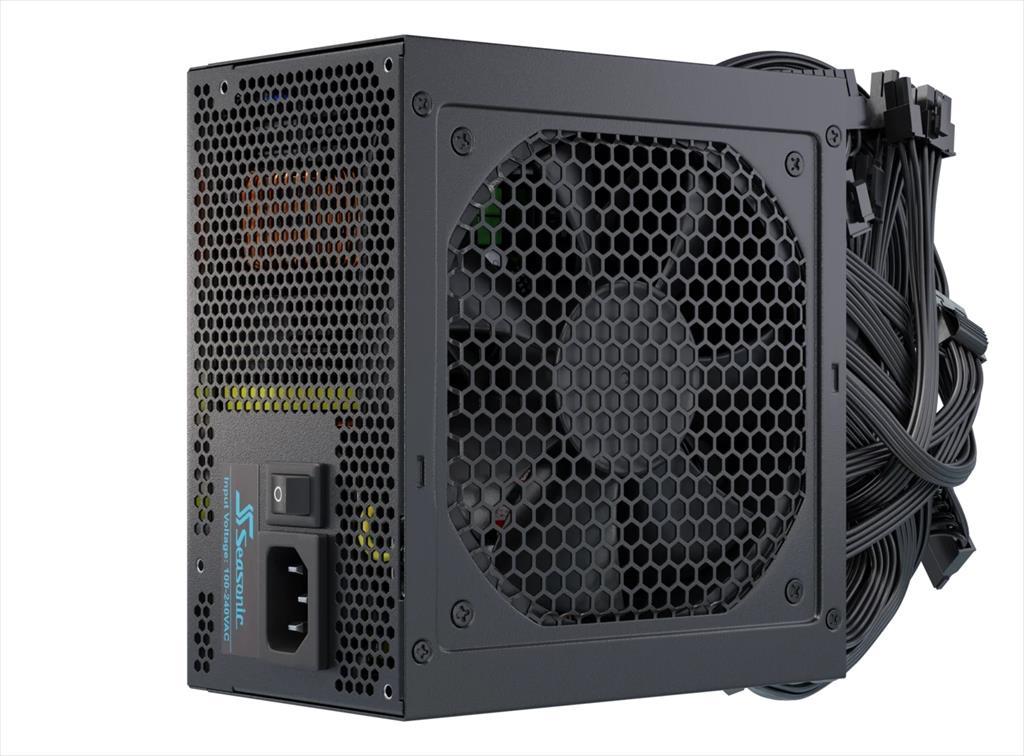

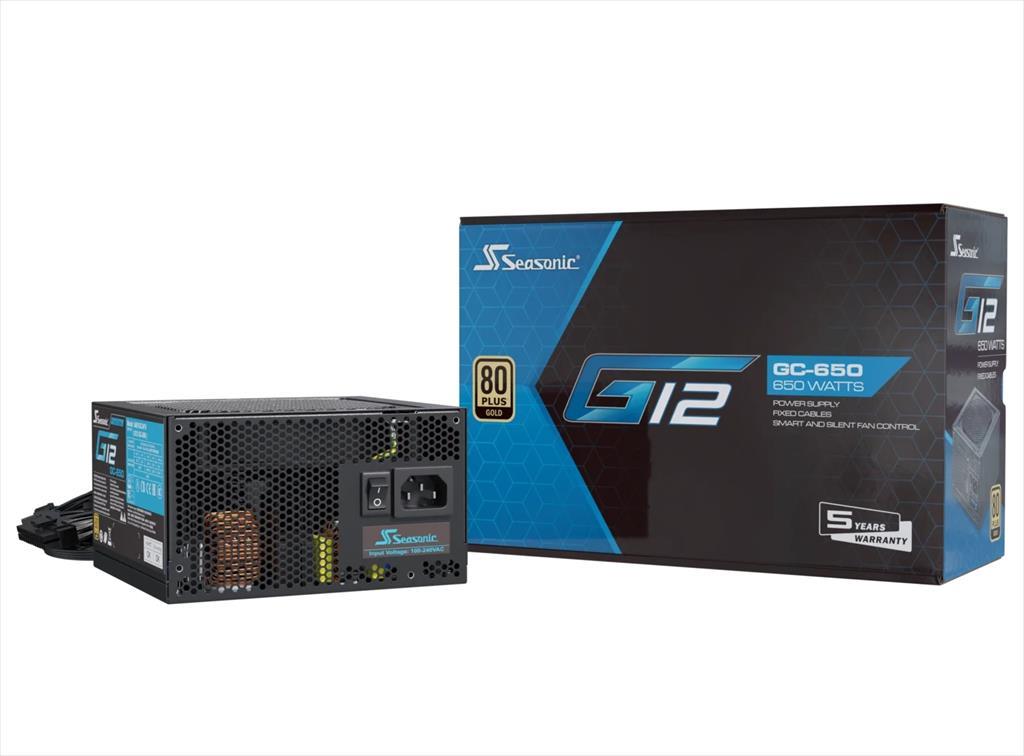

Psu 650w seasonic 80+ gold, g12-gc-650

Model Name: SEASONIC G12-GC-650

Specification

• 80PLUS®: Gold
• Cybenetics Efficiency Level: TBA
• Cybenetics Noise Level: TBA
• Form Factor: ATX/EPS
• Dimensions: 140 × 150 × 86 mm
• Fan Information:
  • Fan Size: 120 mm
  • Fan Control: Smart and Silent Fan Control
  • Fan Bearing: Sleeve Bearing
• Cable Information:
  • Modularity: Fixed Cables
  • Cable type: Flat Black Cables
• Electrical Features:
  • Operating Temperature: 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
  • MTBF @ 25 °C, excl. fan: 100,000 hours
  • AC Input: Full Range
  • Protection: OPP, OVP, OCP, SCP
• Safety and Environmental:
  • Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
  • Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Power Output:
  • AC Input: 100 V – 240 V, 8 – 4 A, 50 Hz – 60 Hz
  • DC Output:
    • Rail +3.3 V: 20 A, +5 V: 20 A, +12 V: 54 A, -12 V: 0.3 A, +5 VSB: 2.5 A
    • Maximum Power: 100 W, 648 W, 3.6 W, 12.5 W
  • Total continuous power: 650 W
