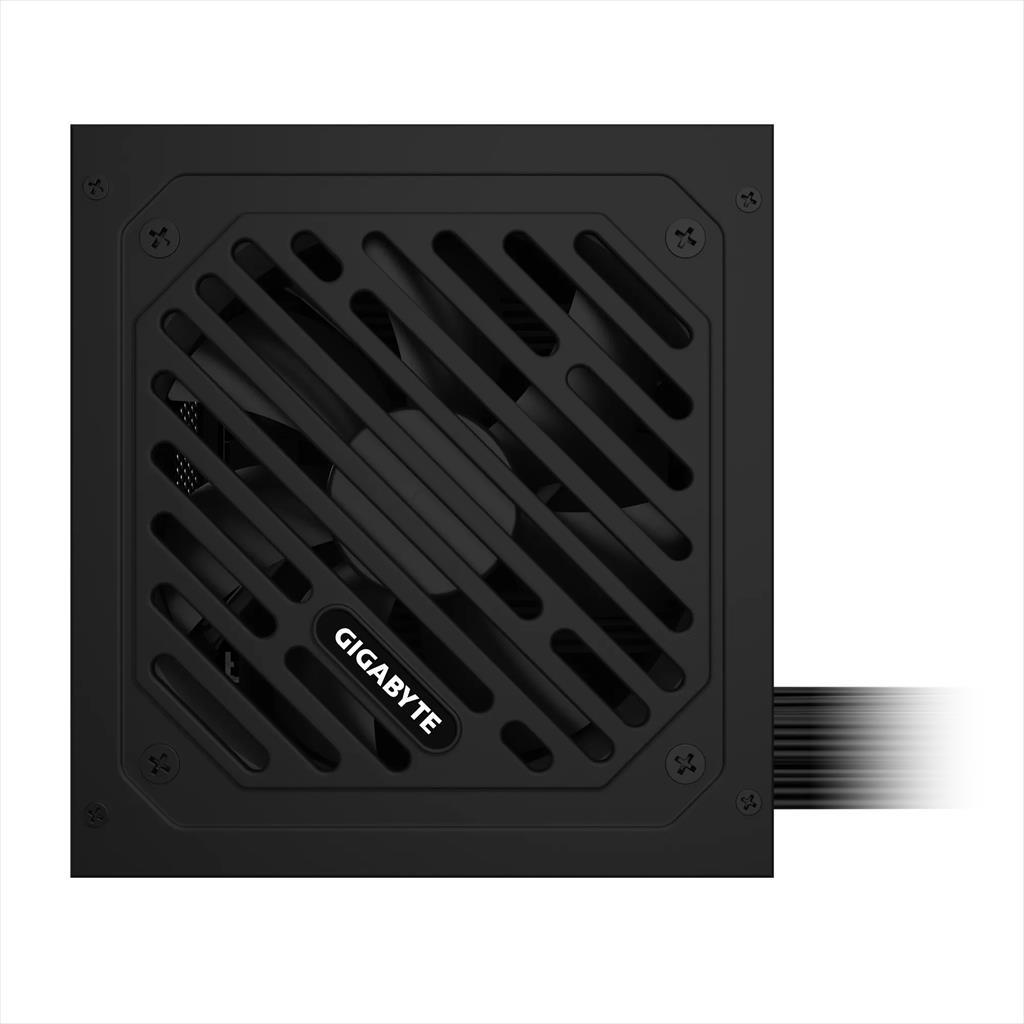

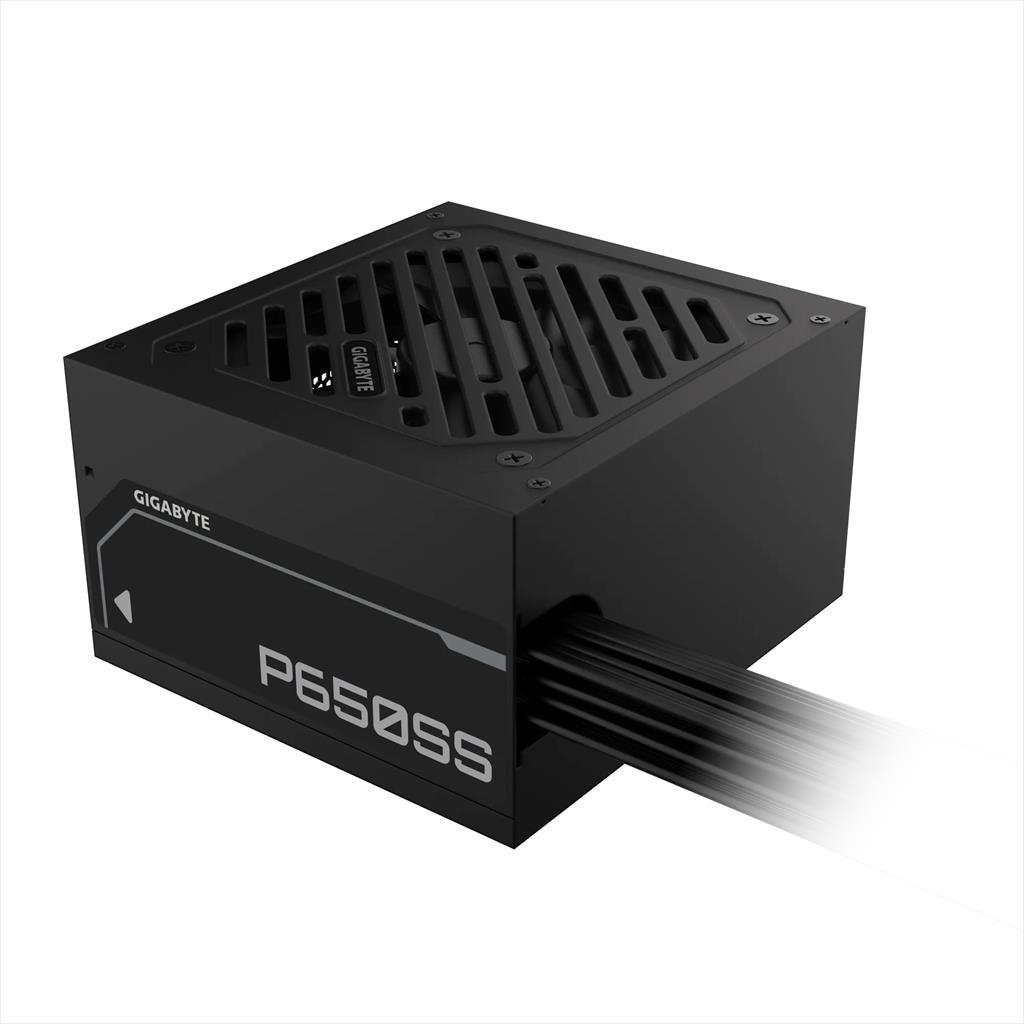

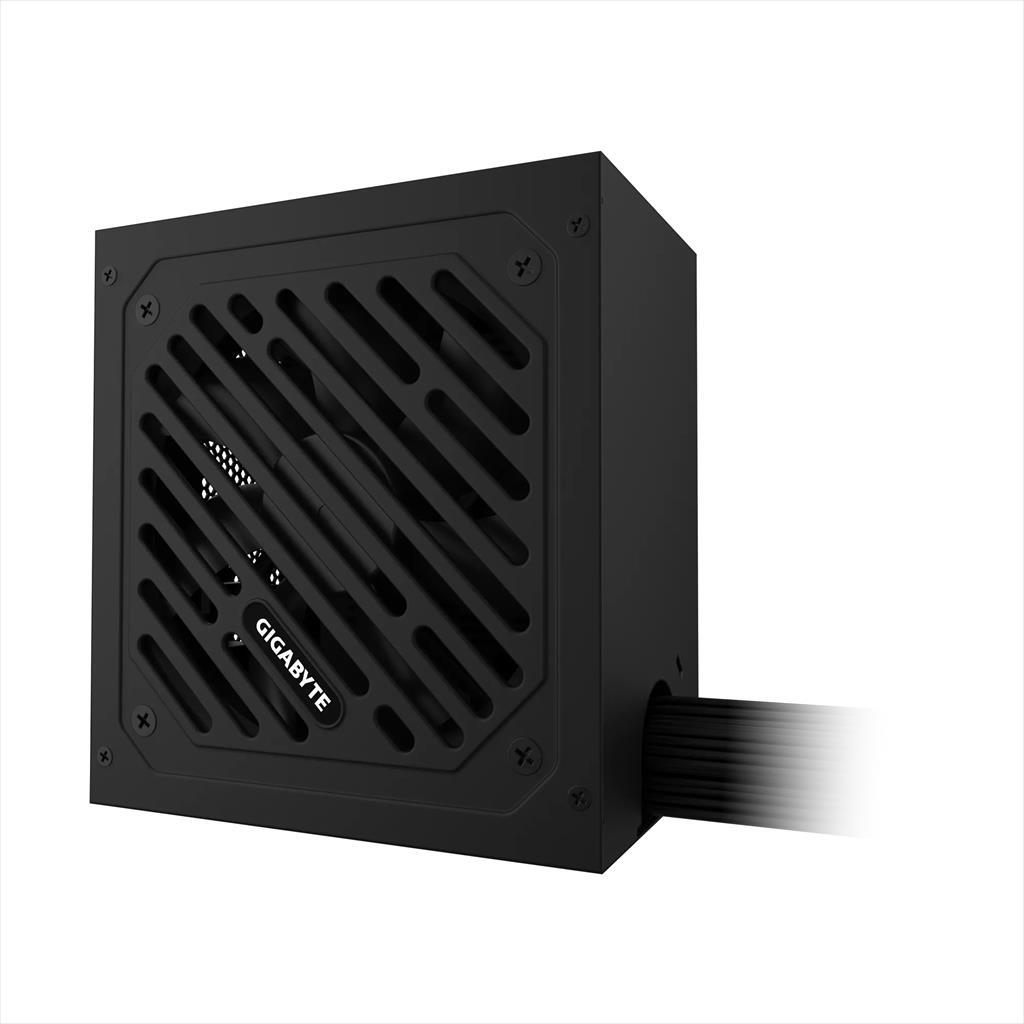

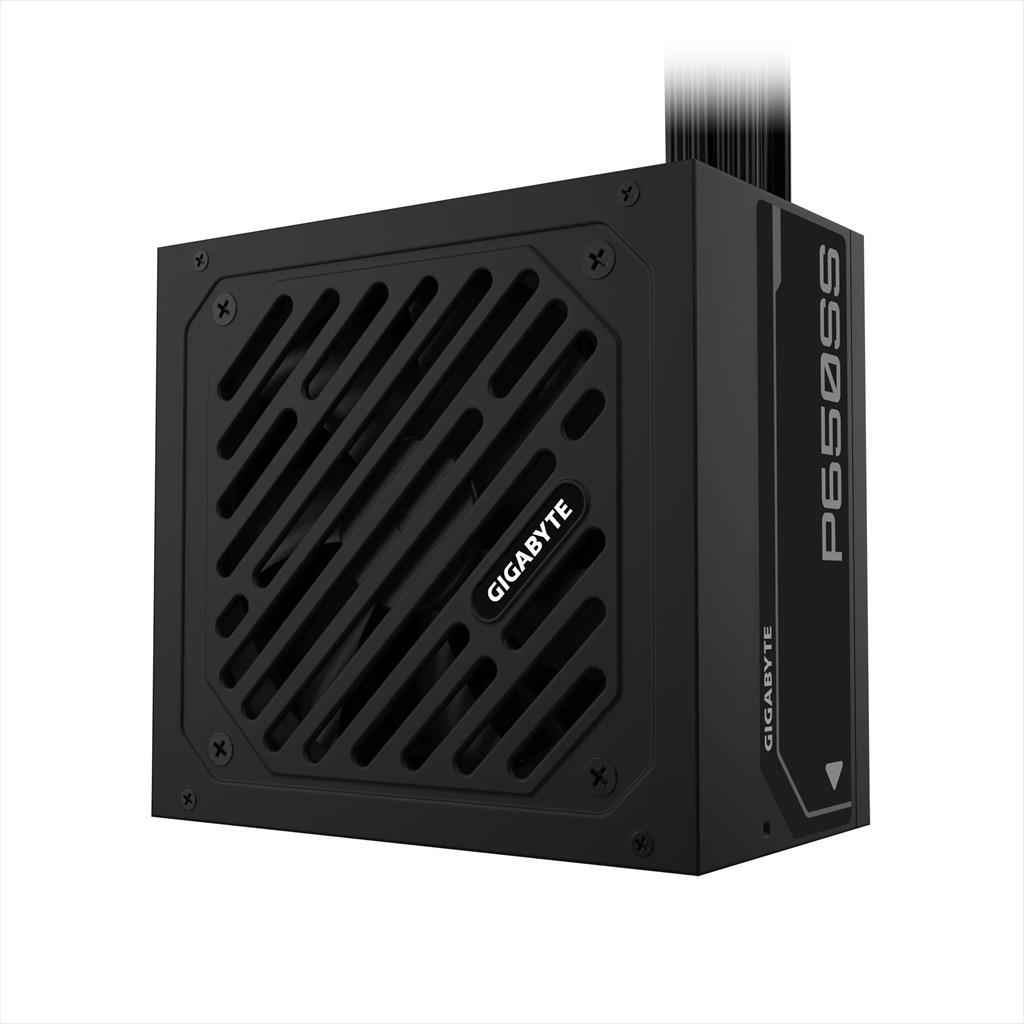

PSU 650W GIGABYTE P650SS 80 PLUS SILVER, GP-P650SS

Model name: GIGABYTE P650SS

Specifications:

• Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 155–240 Vac
• Input Current: 6.3A
• Input Frequency: 50–60 Hz
• Output Capacity: 650W
• Dimension: 150 x 140 x 86 mm
• Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan
• 80 PLUS: Silver
• Efficiency: 90% at typical load (230V EU)
• MTBF: >100,000 hours
• Protection: OVP / OPP / SCP / UVP / OCP / OTP
• Power Good Signal: 100–150ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1: 600mm
  • CPU/EPS 4+4 Pin x 2: 650mm + 120mm
  • PCI-e 6+2 Pin x 2: 600mm x2
  • SATA x 3 + 4 Pin Peripheral x 1: 500mm + 120mm + 120mm + 120mm
  • SATA x 2 + 4 Pin Peripheral x 2: 500mm + 120mm + 120mm + 120mm
