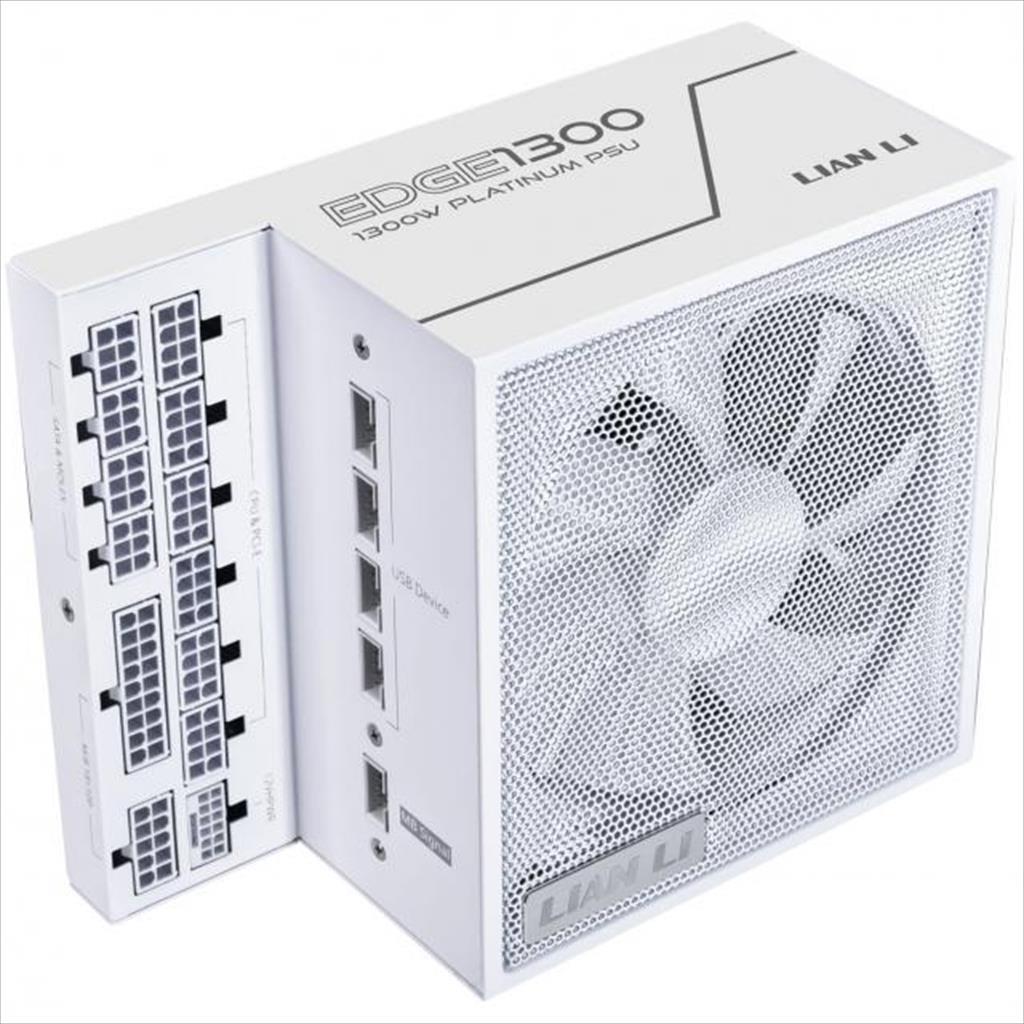

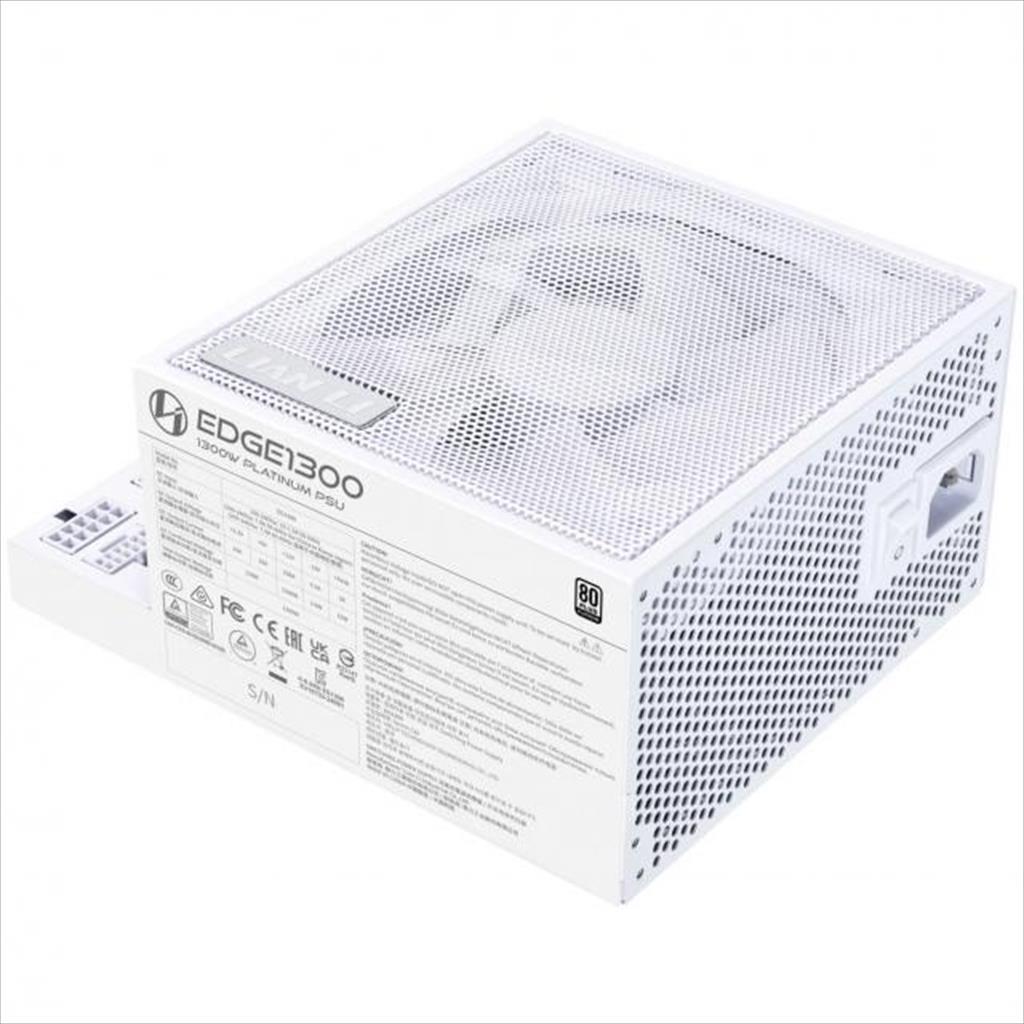

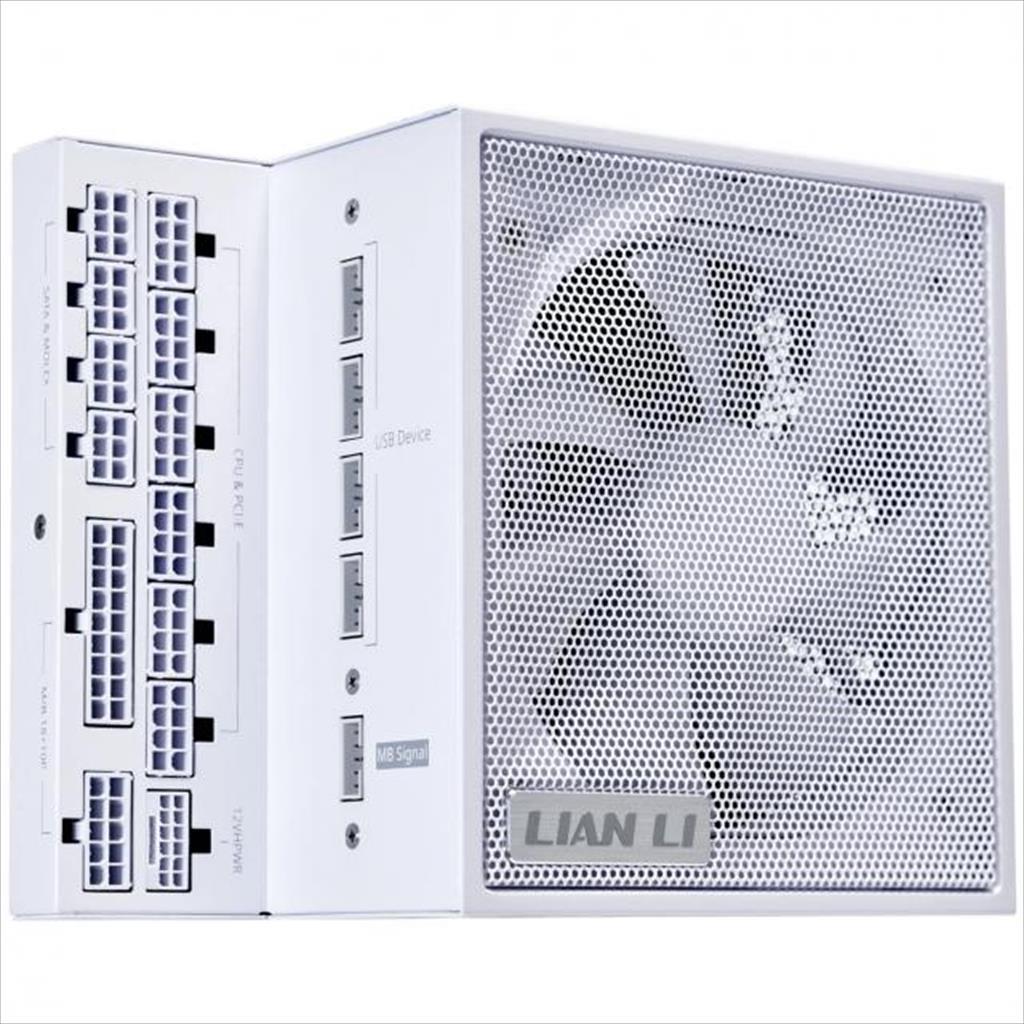

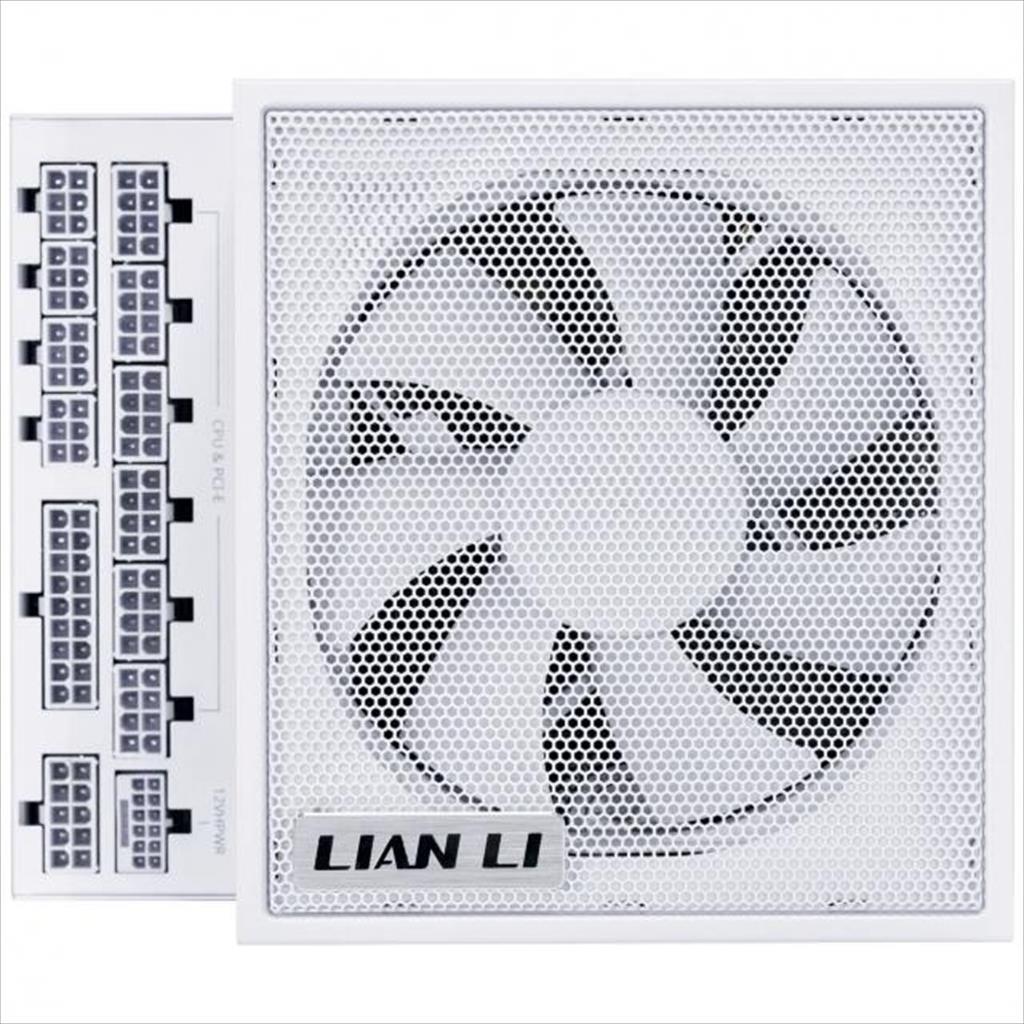

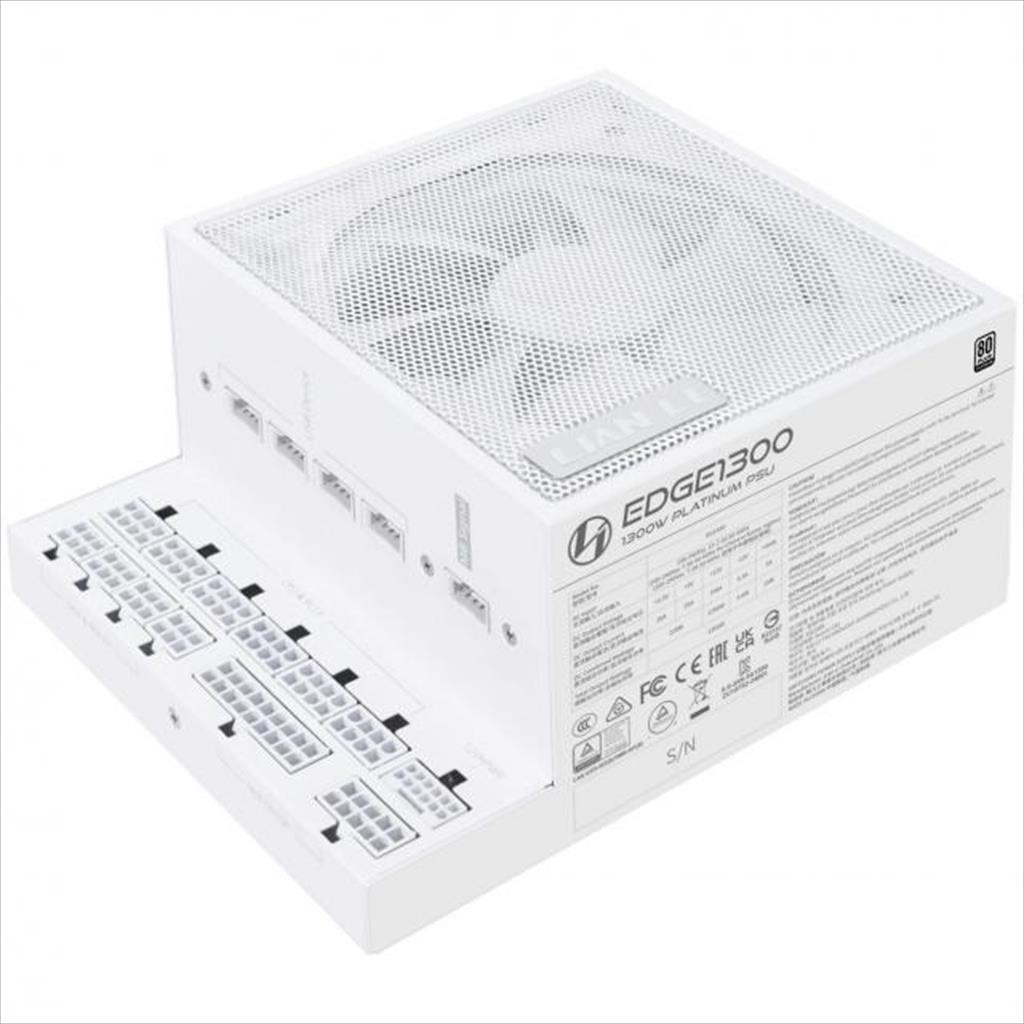

PSU 1300W LIAN LI EDGE EG1300 80+ PLATINUM, PCIe 5.1 (L-Shape, w/x4 USB 2.0 headers), FULL MODULAR White

Model name: LIAN LI EG1300

Specification :

• Color: White
• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
• Max. DC Output: 1300W
• Combined +3.3V & +5V: 120W
• Combined +12V: 1296W
• Input Voltage: 100-240Vac
• Input Frequency Range: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 92.39% MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP
• Connectors:
• 1 x 24/20-Pin motherboard connector (500mm) x1pcs
• 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
• 1 x 8/6+2 Pin PCle connector (550mm) x4pcs
• 1 x 12V-2×6 connector (550mm) × 1pcs
• 1 x 12VHPWR – 2 x 8pin connector (550mm) × 1pcs
• 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
• 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
• 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
• USB*9pin – USB*9pin connector (350mm) × 1pcs
• USB*9pin -Type A connector (550mm) × 1pcs
• Fan Type: 120mm FDB Fan
• Fan Speed: 2400RPM
• Fan Noise Level: 33.61dBA
