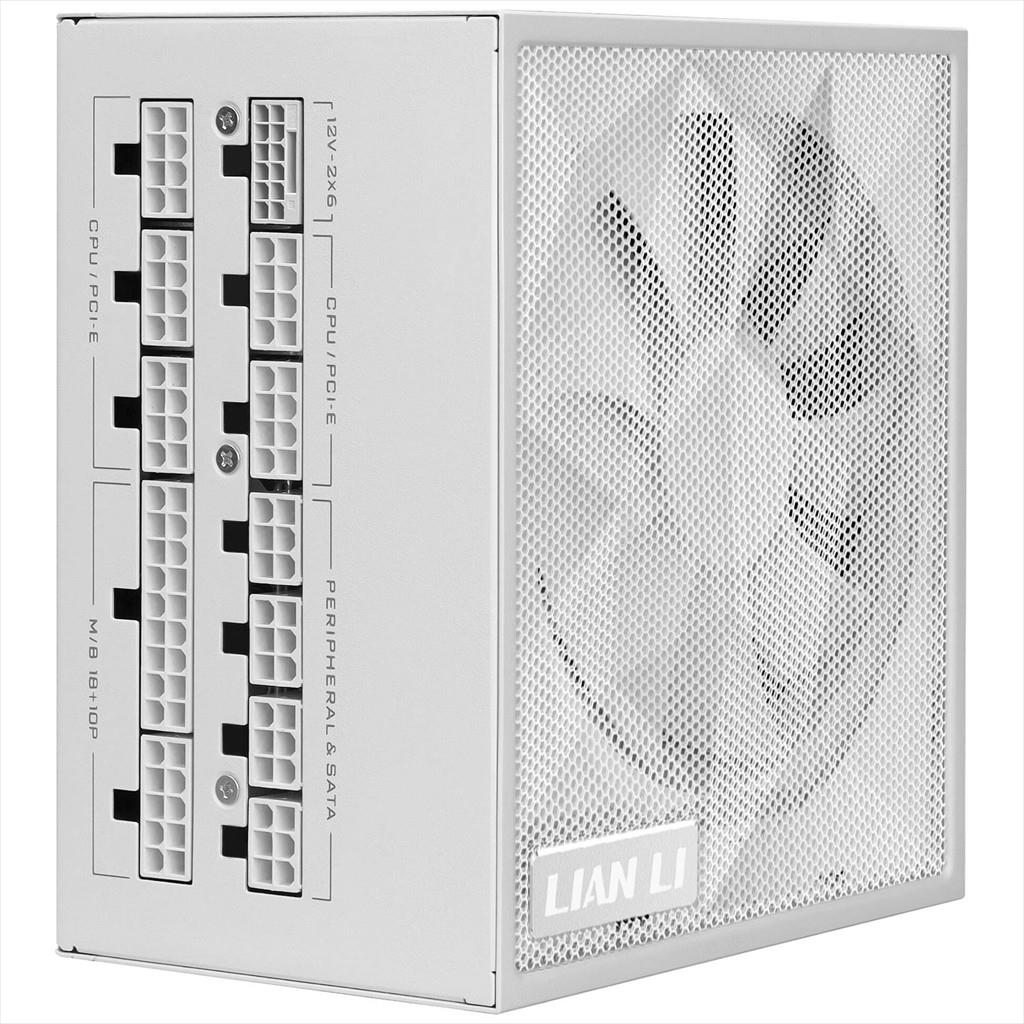

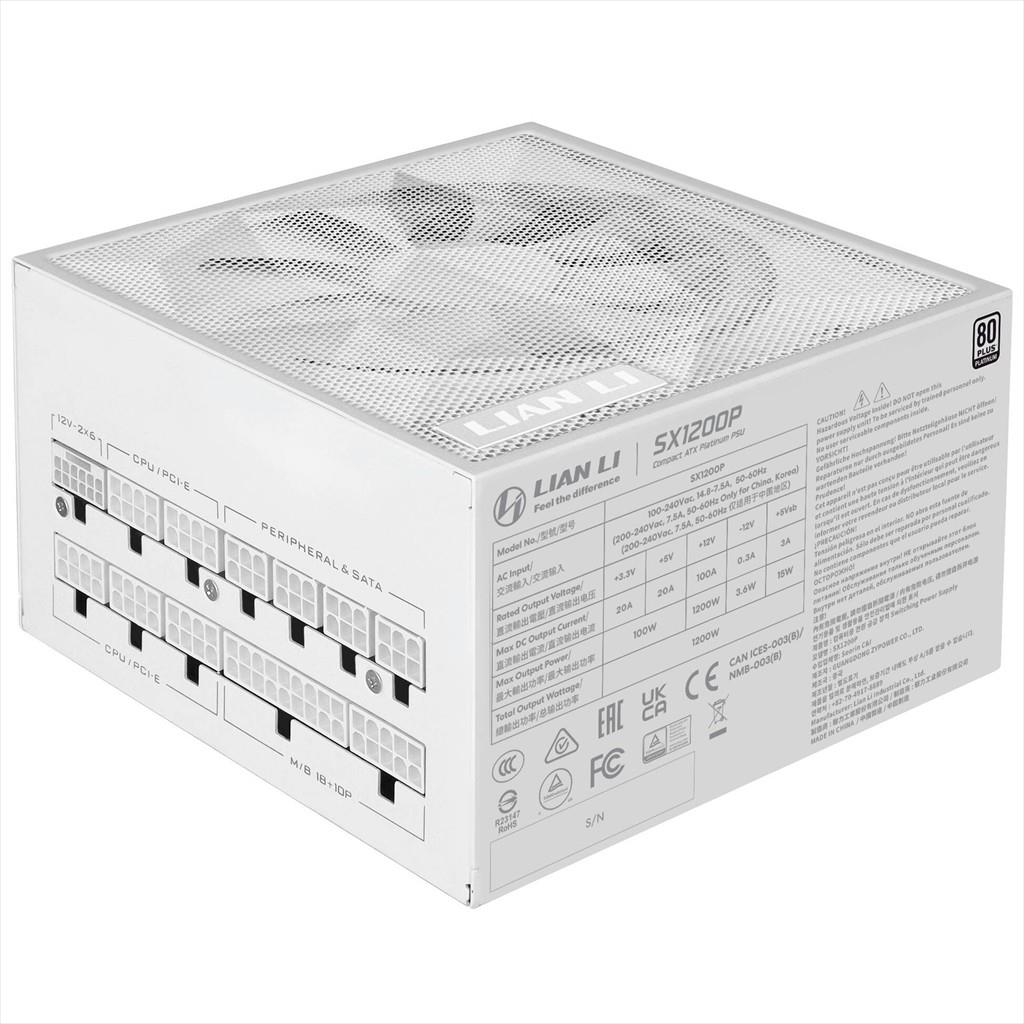

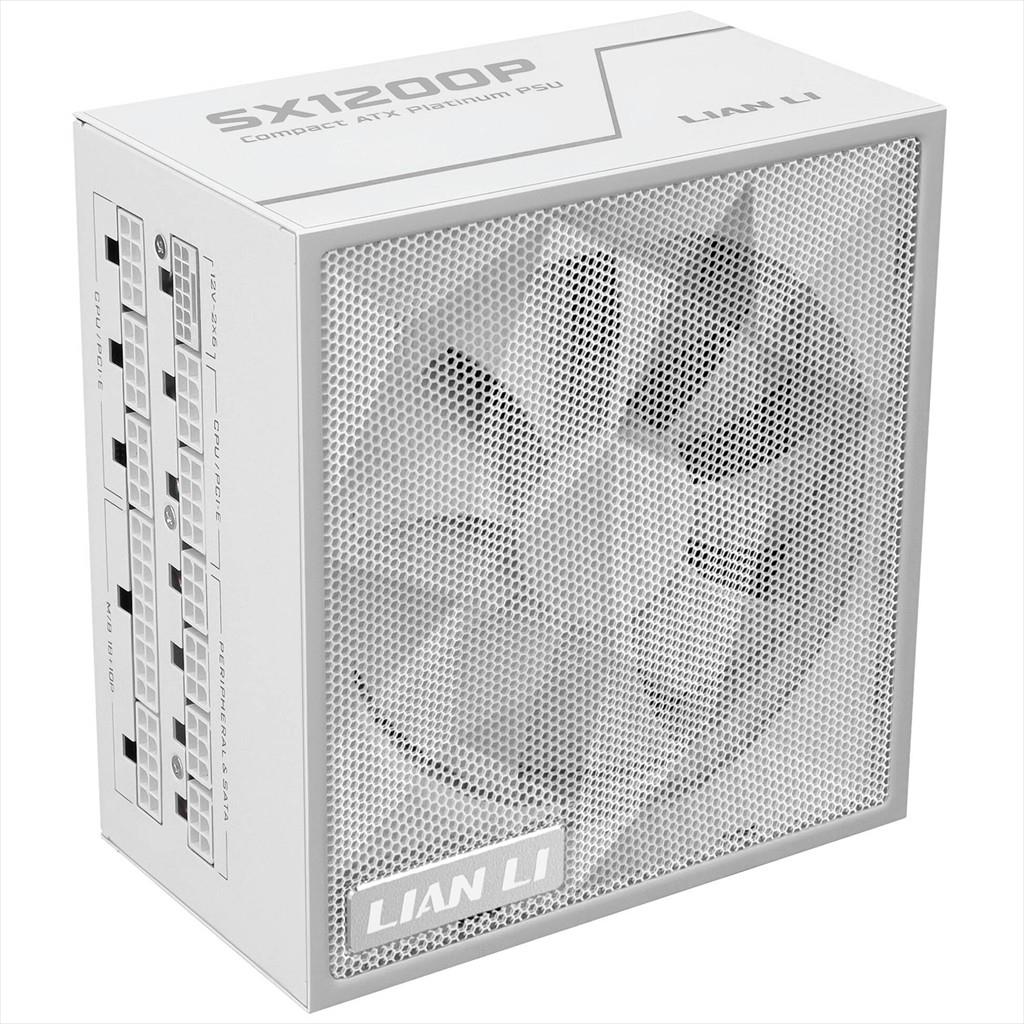

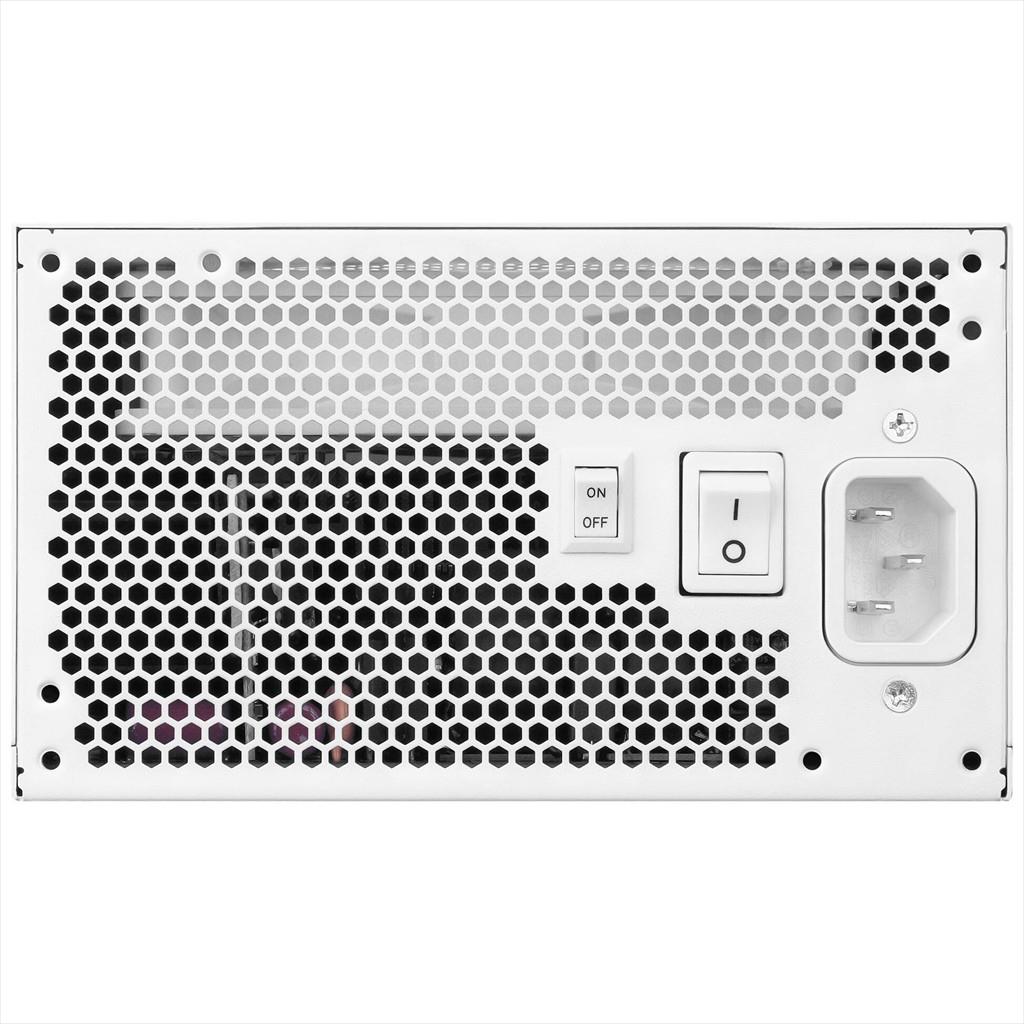

Model Name: SX Series 80 PLUS Platinum power supply, fully modular, PCIe 5.1, ATX 3.1 – 1,200 watts, white, SX1200P
Features
- 1,200 W power output ideal for high-end PCs with powerful GPUs and CPUs
- 80 PLUS Platinum efficiency with up to 92% efficiency at 50% load
- Fully modular design with flexible sleeved cables for clean, customizable builds
- ATX 3.1 & PCIe 5.1 compliant, including 12V-2×6 connector for next-gen GPUs

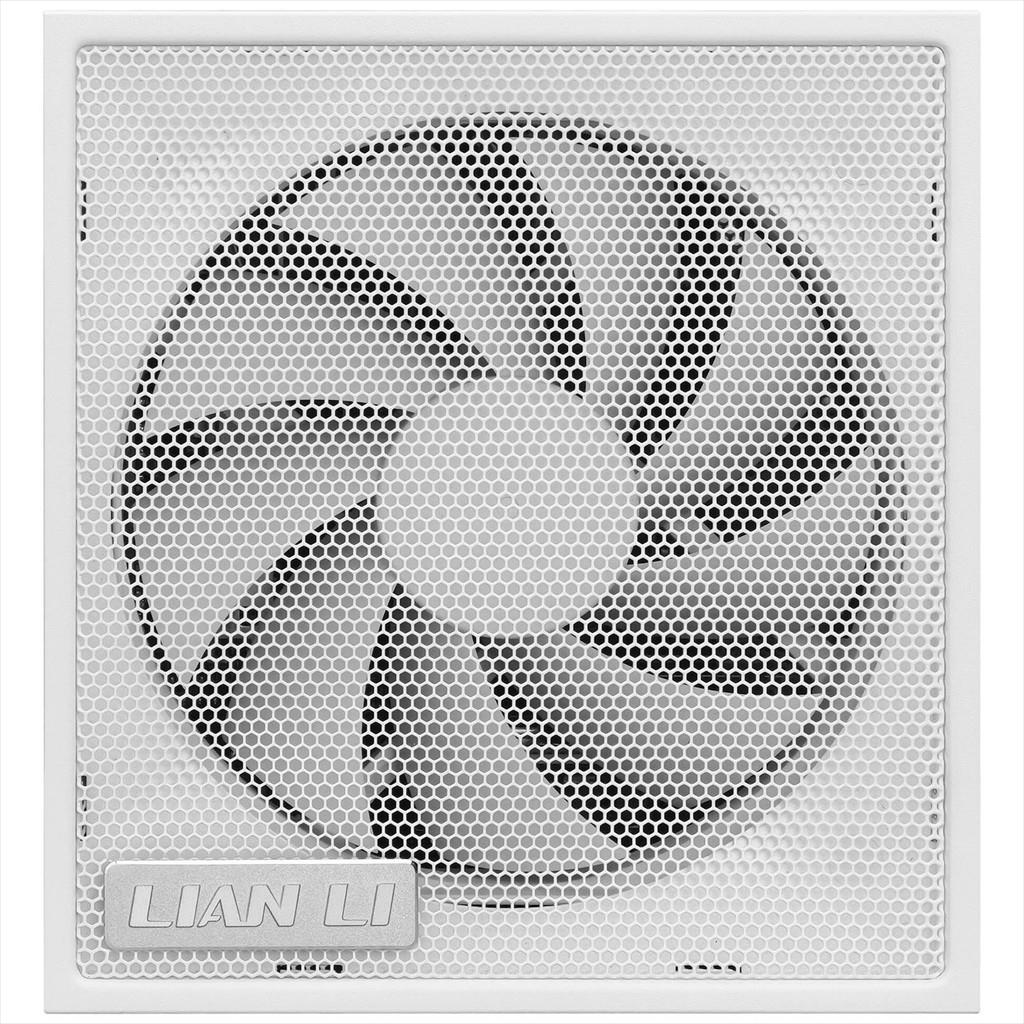

- Quiet operation thanks to 120 mm fan with Zero-RPM semi-passive mode
- Comprehensive protections: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- White housing to match light or showcase systems
Specification
- PSU format: ATX
- ATX standard: ATX 3.1
- Total power output: 1200 W
- +12 V rails output: 1200 W (single rail)
- +3.3 V & +5 V combined: 100 W
- Efficiency class: 80 PLUS Platinum
- Modularity: Fully modular
- 12 V distribution: Single rail
- Cooling fan: 120 mm
- Semi passive: Yes (Zero-RPM mode)
- Dimensions (W × D × H): 150 × 140 × 86 mm
- Primary colour: White
- Protection circuits: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- CPU power connectors: 2 × 12V ATX/EPS (2 × 4+4-pin)
- 12V-2×6 power connectors: 1
- 6+2-pin PCIe power connectors: 5
- SATA power connectors: 8
- Max 24-pin motherboard cable length: 600 mm
- Max CPU power cable length: 700 mm
- Max 12V-2×6 cable length: 600 mm
- Max PCIe power cable length: 550 mm
- Max SATA cable length: 850 mm
