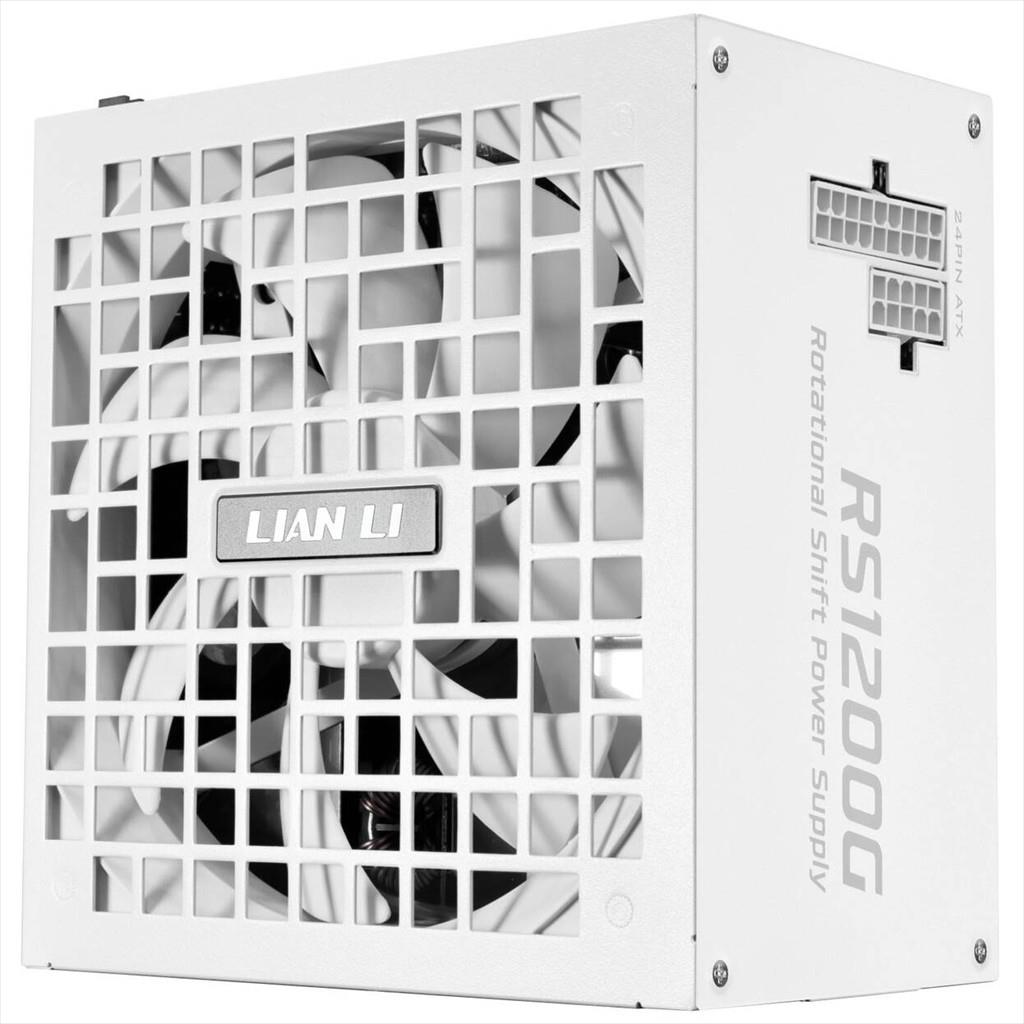

Model Name: RS Series 80 PLUS Gold Power Supply, ATX 3.1, modular – 1,200 Watts, with RS Hub, white, RS1200G
Features
- Rotatable power connector allows the PSU to be installed in two directions
- Up to 1,200 W output for high‑end gaming or workstation systems
- Highly efficient with 80 PLUS Gold, PPLP Gold and Cybenetics ETA Gold certifications

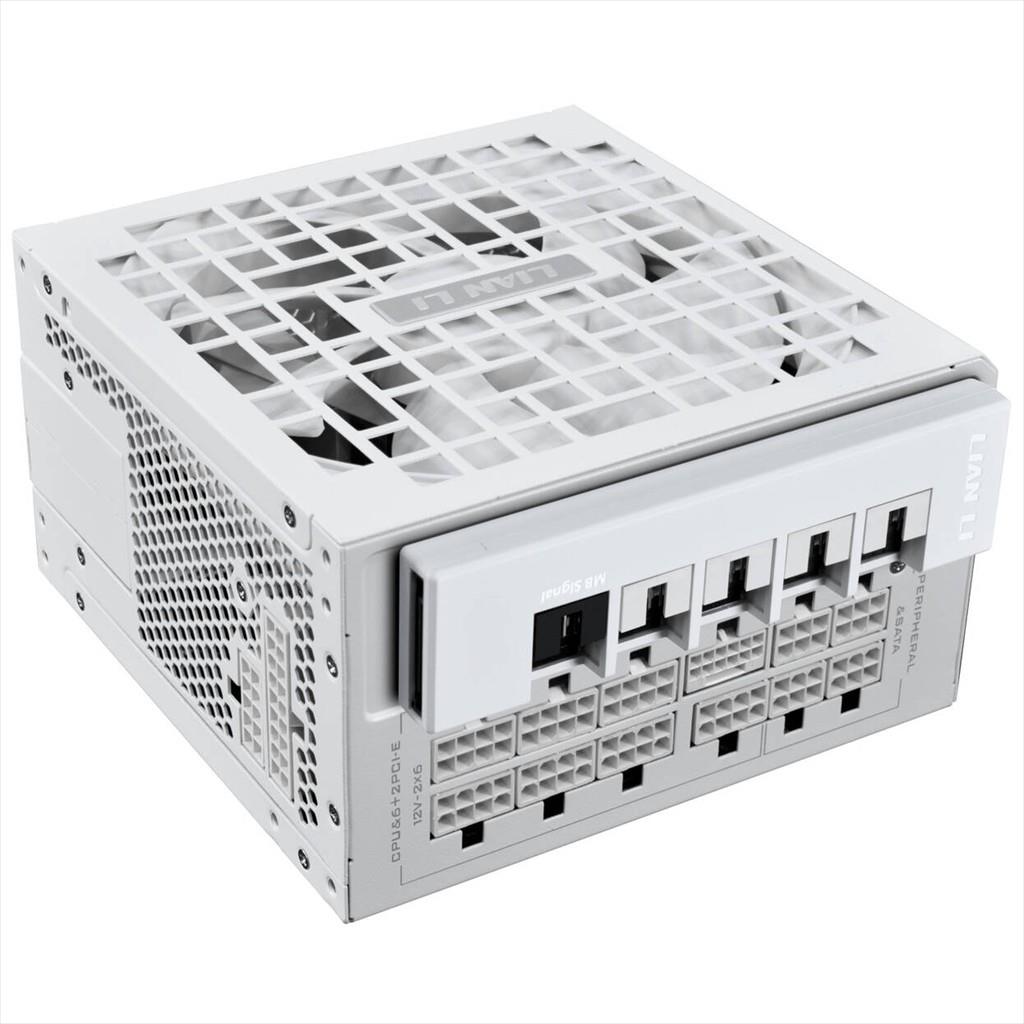

- Fully modular design with 24‑pin connectors on both sides for flexible routing
- ATX 3.1 compatible and ready for modern GPUs with 12V‑2×6 connector

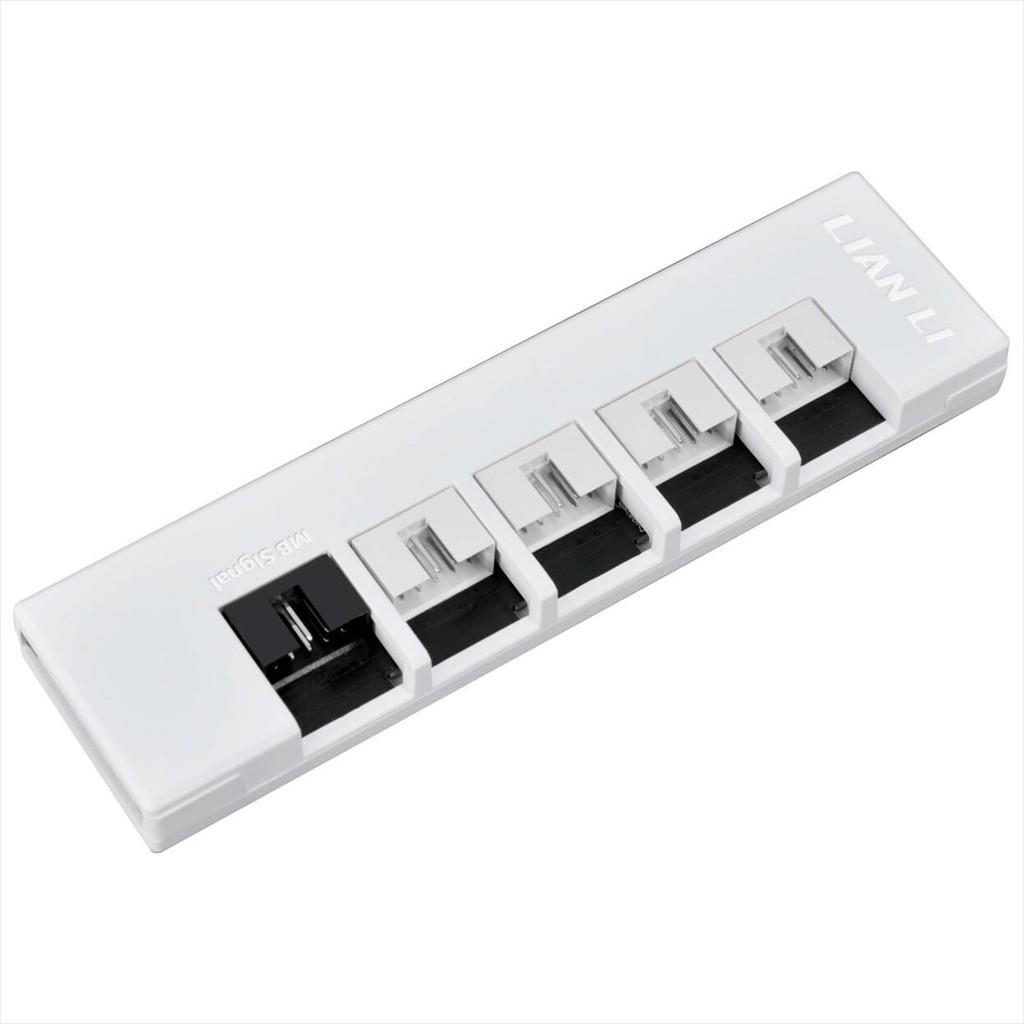

- Integrated RS USB hub providing four extra USB ports for additional devices
- 135 mm fan with semi‑passive mode for quieter operation under low to medium loads
- Comprehensive protection: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- White housing to complement light‑themed builds
Specification
- PSU format: ATX
- ATX standard: ATX 3.1
- Total power output: 1200 W
- +12 V rails output: 1200 W
- +3.3 V & +5 V combined: 100 W
- Efficiency class: 80 PLUS Gold
- Cybenetics efficiency (230 V): ETA Gold
- PPLP efficiency (230 V): Gold
- Modularity: Fully modular
- Cooling fan: 135 mm
- Semi‑passive: Yes
- Dimensions (W × D × H): 150 × 150 × 86 mm
- Primary colour: White
- Protection circuits: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- CPU power connectors: 2 × 12V ATX/EPS (1 × 4+4‑pin, 1 × 8‑pin)
- 12V‑2×6 power connectors: 1
- 6+2‑pin PCIe power connectors: 4
- SATA power connectors: 12
- Max 24‑pin motherboard cable length: 620 mm
- Max CPU power cable length: 700 mm
- Max 12V‑2×6 cable length: 650 mm
- Max PCIe power cable length: 750 mm
- Max SATA cable length: 850 mm
- USB hub: Yes (RS Hub with four additional USB ports)
