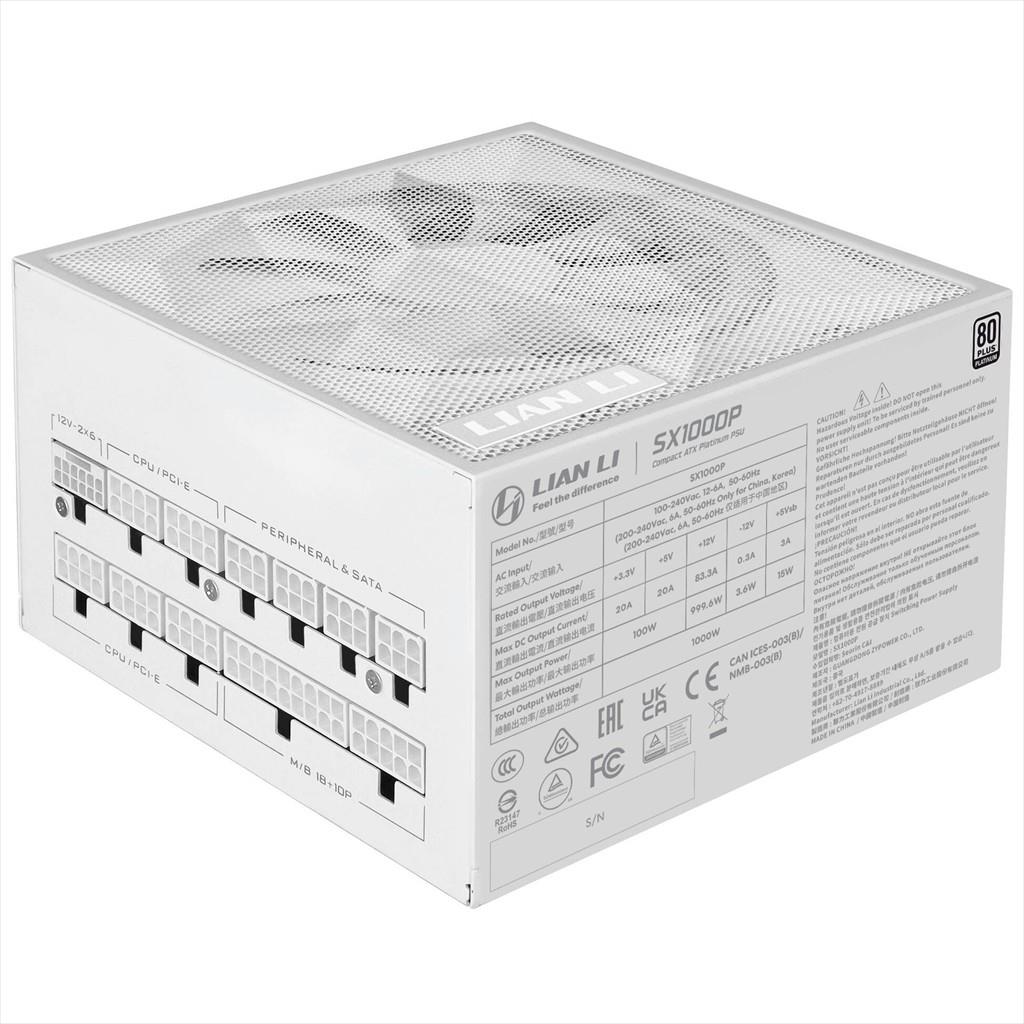

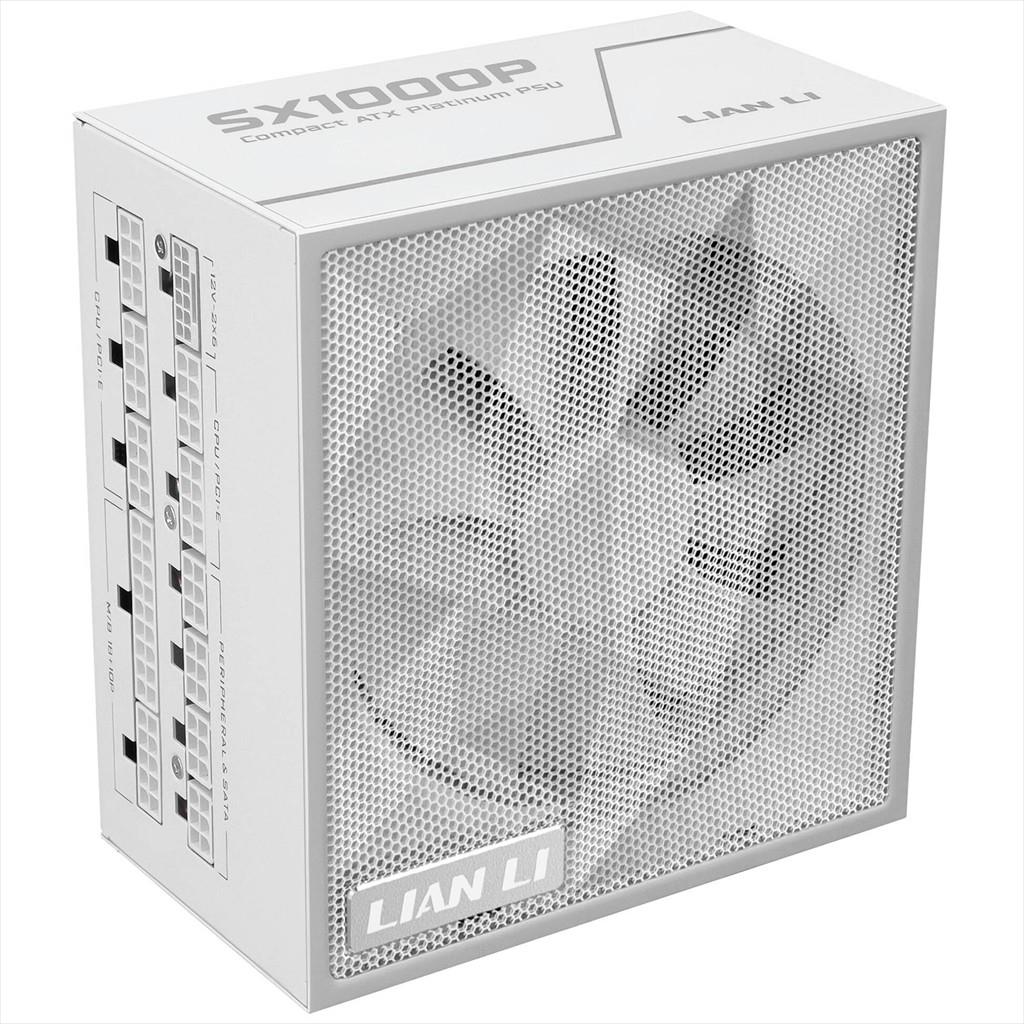

Model Name: SX Series 80 PLUS Platinum power supply, fully modular, PCIe 5.1, ATX 3.1 – 1,000 watts, white, SX1000P
Features
- 1,000 W output ideal for high-end PCs with powerful GPUs and CPUs
- 80 PLUS Platinum efficiency with up to 92% efficiency at 50% load
- Fully modular design with flexible sleeved cables for clean builds
- ATX 3.1 and PCIe 5.1 compliant, including 12V-2×6 GPU connector
- Quiet operation thanks to 120 mm fan with Zero-RPM semi-passive mode
- Comprehensive safety protections: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- White housing to complement light-themed or showcase systems
Specification
- PSU format: ATX
- ATX standard: ATX 3.1
- Total power output: 1,000 W
- +12 V rails output: 1,000 W (single rail)
- +3.3 V & +5 V combined: 100 W
- Efficiency class: 80 PLUS Platinum
- Modularity: Fully modular
- 12 V distribution: Single rail

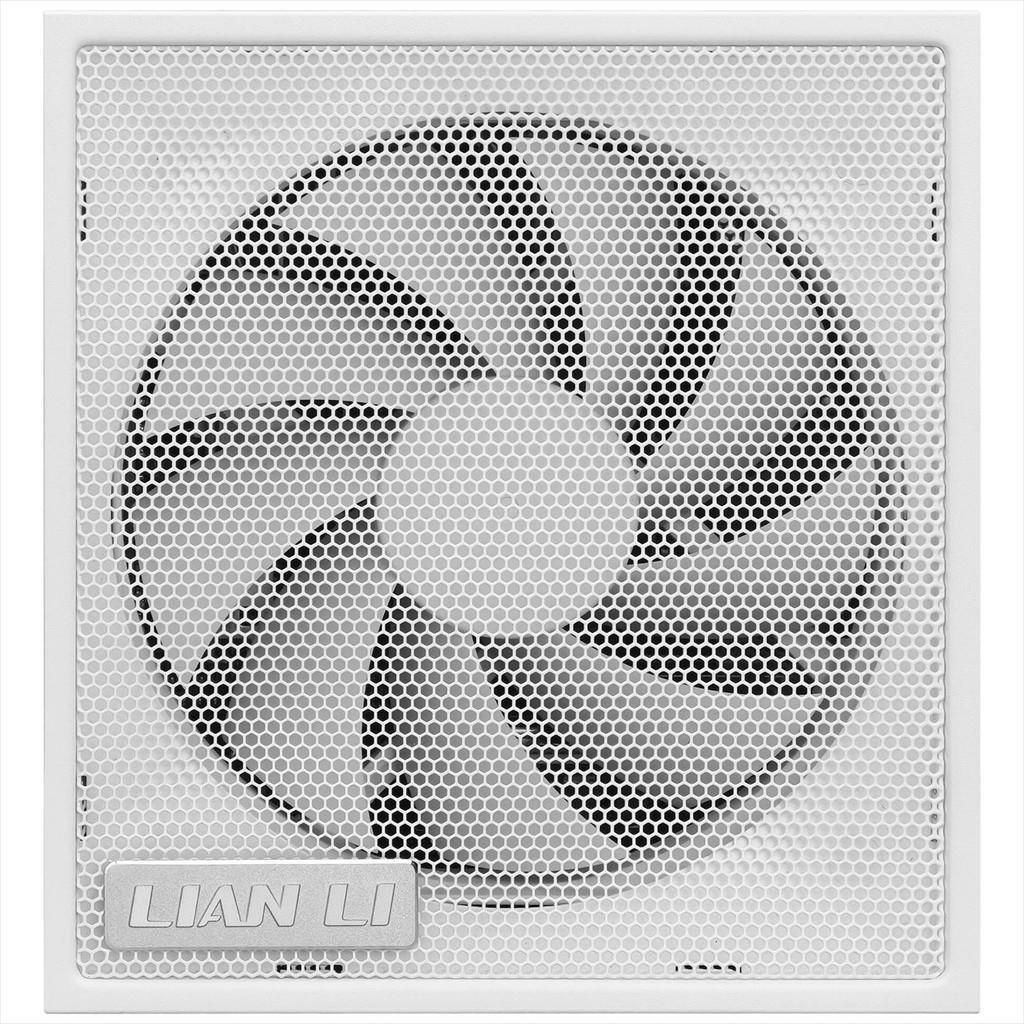

- Cooling fan: 120 mm
- Semi-passive: Yes (Zero-RPM mode)
- Dimensions (W × D × H): 150 × 140 × 86 mm
- Primary colour: White
- Protection circuits: OCP, OPP, OTP, OVP/UVP, SCP, UVP

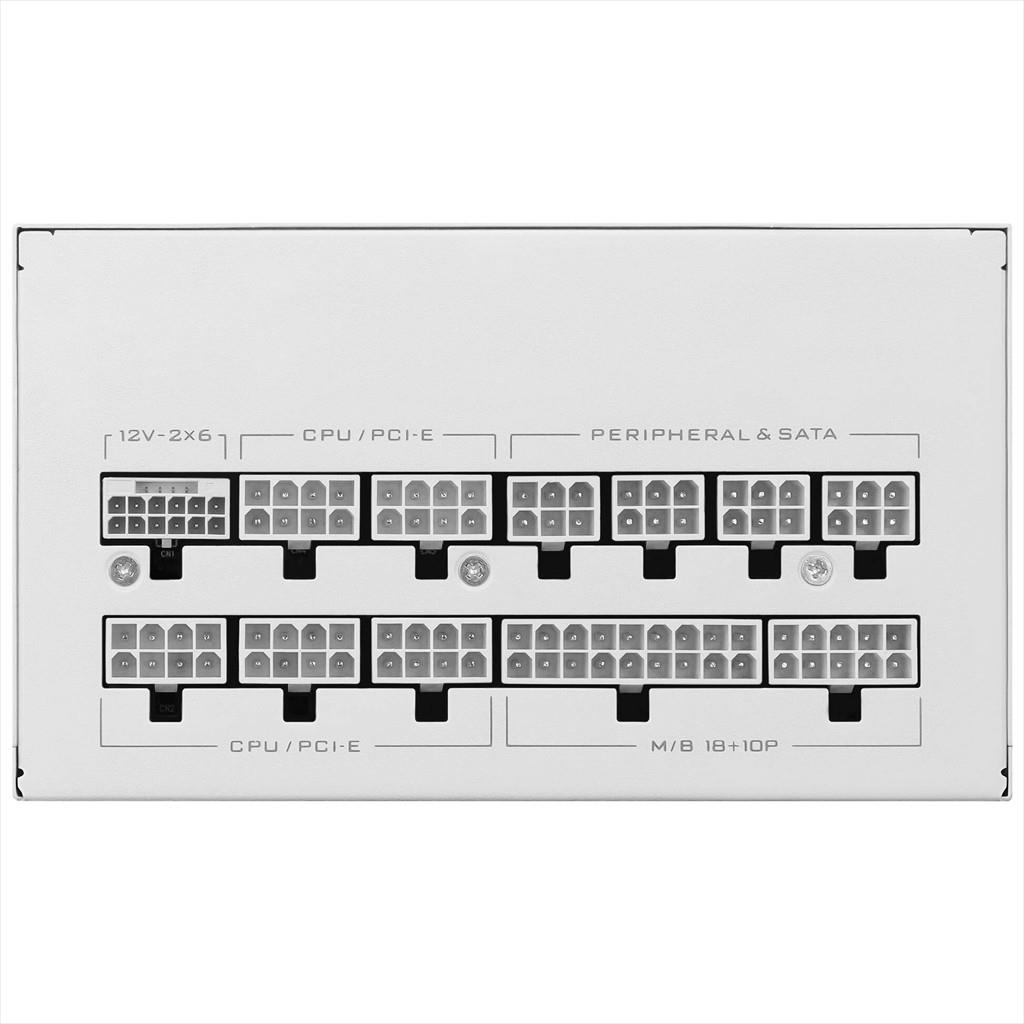

- CPU power connectors: 2 × 12V ATX/EPS (2 × 4+4-pin)
- 12V-2×6 power connectors: 1
- 6+2-pin PCIe power connectors: 3
- SATA power connectors: 8
- Max 24-pin motherboard cable length: 600 mm
- Max CPU power cable length: 700 mm
- Max 12V-2×6 cable length: 600 mm
- Max PCIe power cable length: 700 mm
- Max SATA cable length: 850 mm
