Model Name: SP Series Platinum 80 PLUS Platinum Power Supply, SFX, fully modular, PCIe 5.1, ATX 3.1 – 1,000 Watt, black, SP1000P
Features

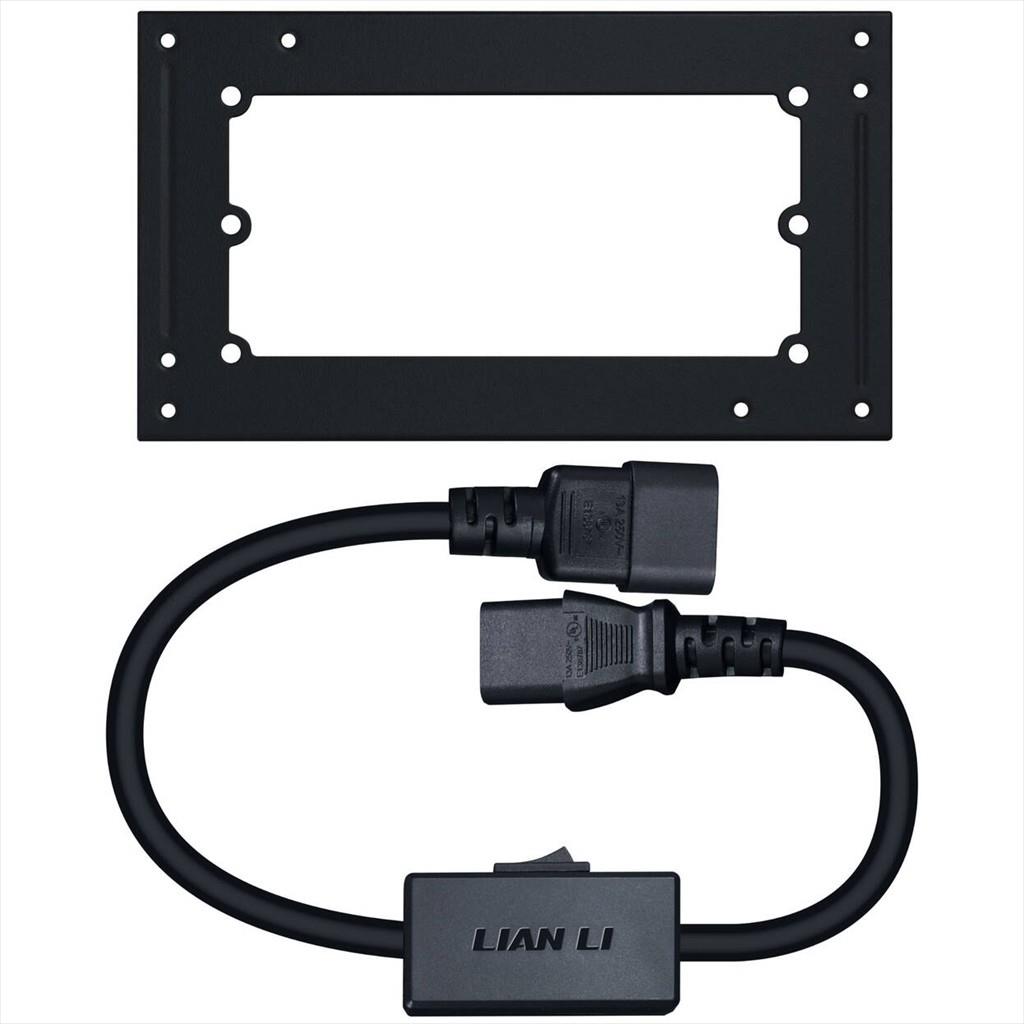

- Compact SFX form factor with included ATX bracket for wider case compatibility
- 1,000 W power output ideal for powerful gaming systems
- 80 PLUS Platinum efficiency with up to 92% efficiency at 50% load
- Fully modular design with a complete set of braided cables
- ATX 3.1 & PCIe 5.1 compliant, including 12V 2×6 connector for next‑gen GPUs

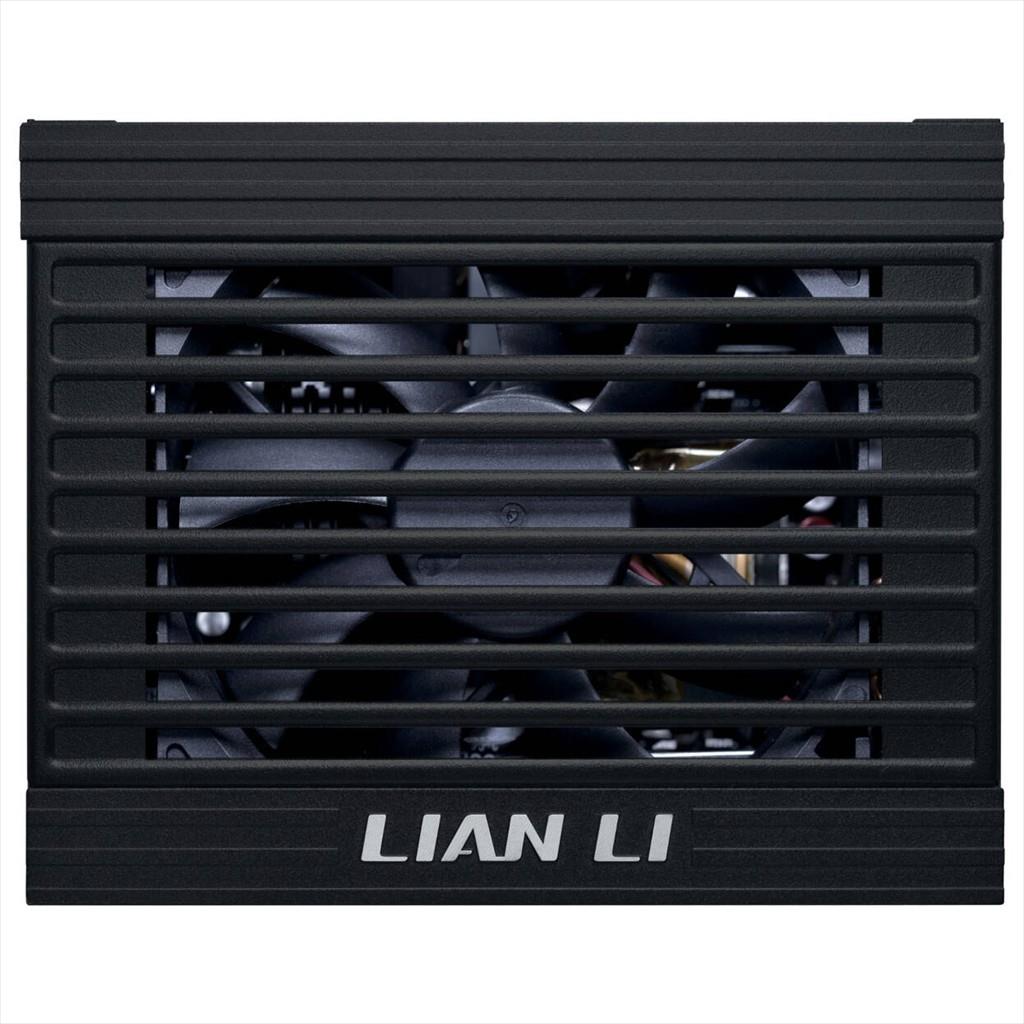

- Quiet cooling via 92 mm FDB fan with Zero-RPM semi-passive mode
- Comprehensive protections: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- Black finish to suit stealth or performance builds
Specification
- PSU format: SFX (ATX bracket included)
- ATX standard: ATX 3.1

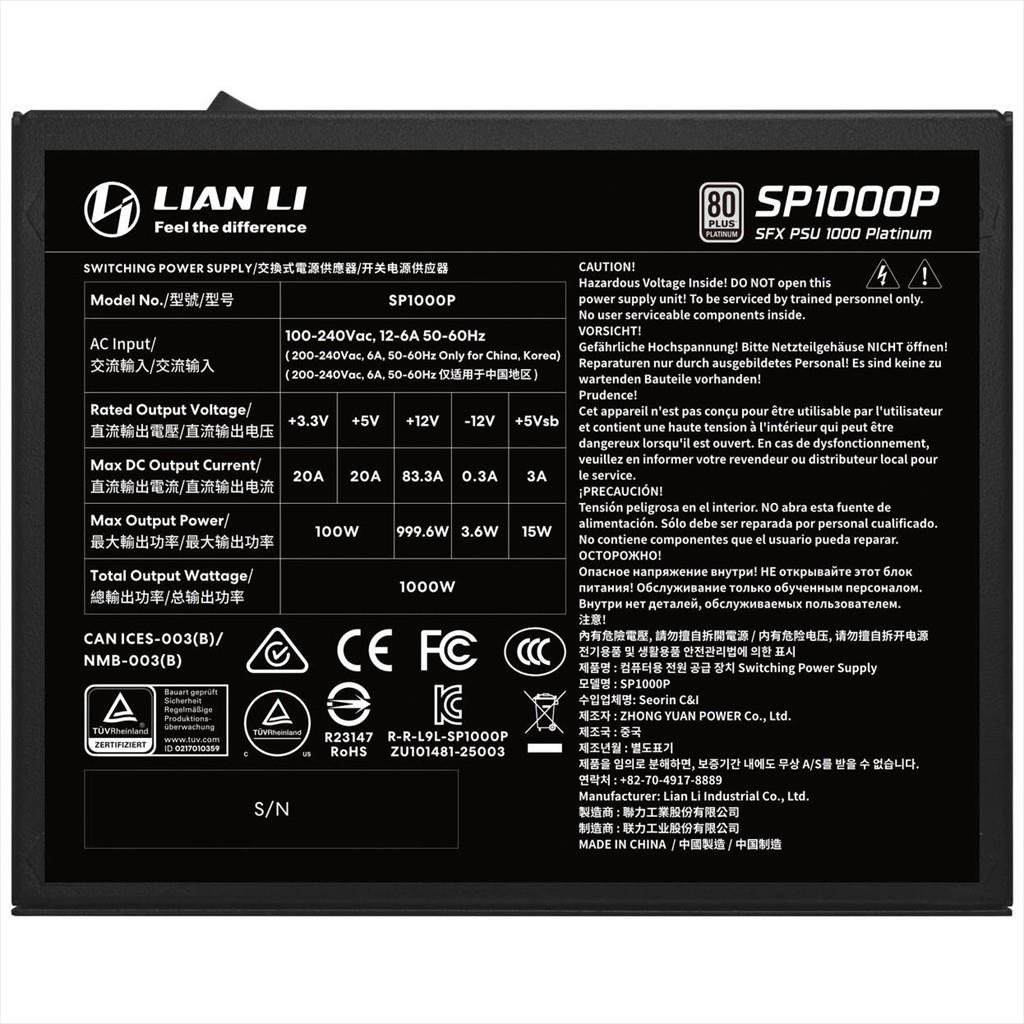

- Total power output: 1000 W
- +12 V rails output: 999.6 W
- +3.3 V & +5 V combined: 100 W
- Efficiency class: 80 PLUS Platinum
- Modularity: Fully modular
- Cooling fan: 92 mm FDB fan
- Semi-passive: Yes (Zero-RPM mode)
- Dimensions (W × H × D): 125 × 63.5 × 100 mm
- Primary colour: Black
- Protection circuits: OCP, OPP, OTP, OVP/UVP, SCP, UVP
- CPU power connectors: 2 × 12V ATX/EPS (2 × 4+4-pin)
- 12V-2×6 power connectors: 1
- 6+2-pin PCIe power connectors: 3
- SATA power connectors: 5
- Max 24-pin motherboard cable length: 350 mm
- Max CPU power cable length: 450 mm
- Max 12V-2×6 cable length: 400 mm
- Max PCIe power cable length: 550 mm
- Max SATA cable length: 600 mm
