NET Switch POE DIEWU 6-port 10/100/1000 (4 POE+1 RJ45 Uplink+1 SFP Uplink) TXE298

Опис

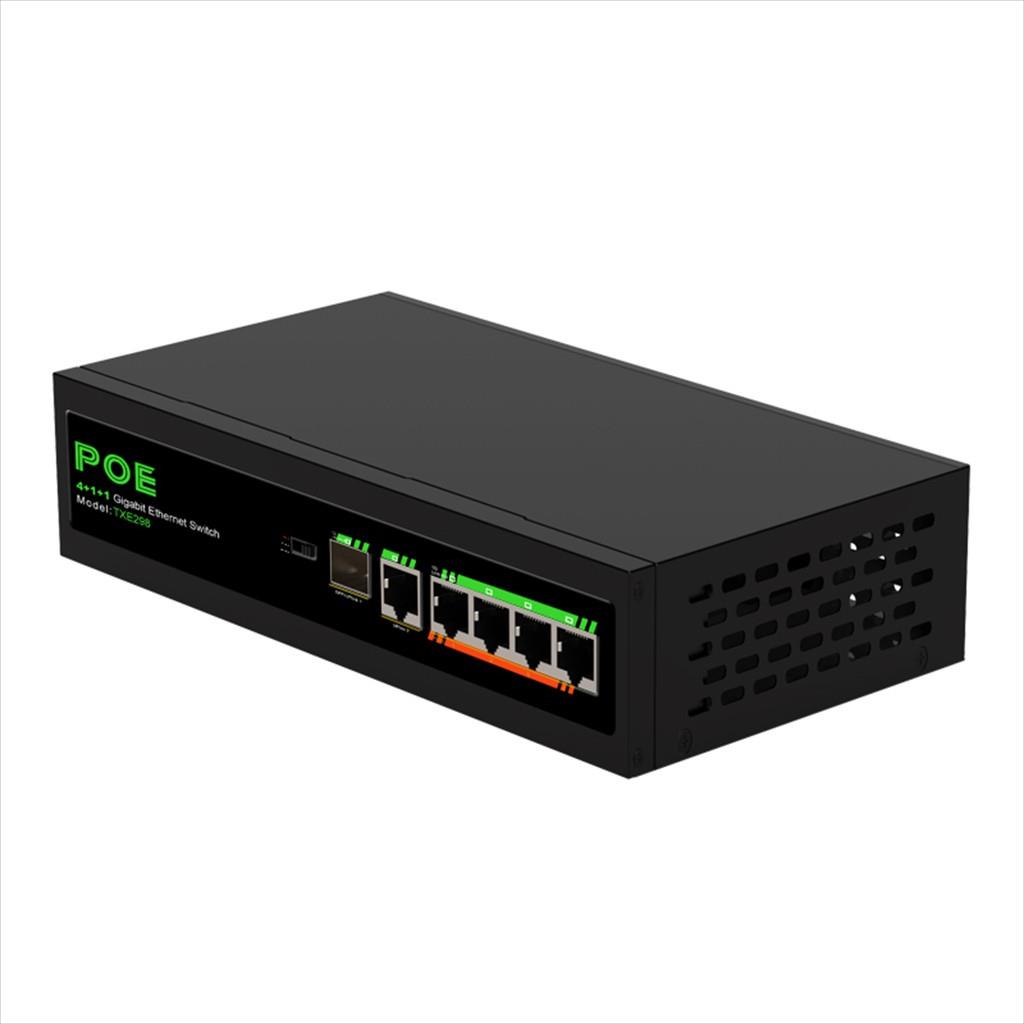

DIEWU TXE298 6-Port Gigabit PoE Network Switch

The DIEWU TXE298 is a compact Gigabit Power over Ethernet switch with four
PoE ports, one RJ45 uplink port, and one 1000Mbps SFP fiber uplink port. It
supports IEEE 802.3af/at PoE standards and provides up to 60W of total PoE
power for compatible network devices such as IP cameras, wireless access
points, VoIP phones, and other powered Ethernet equipment.

Technical Specifications

• Brand: DIEWU
• Model: TXE298
• Product Type: Gigabit PoE network switch
• Total Ports: 6
• PoE Ports: 4 x 10/100/1000Mbps RJ45
• RJ45 Uplink: 1 x 10/100/1000Mbps RJ45
• SFP Uplink: 1 x 1000Mbps SFP port
• PoE Standard: IEEE 802.3af/at
• Maximum PoE Power: 60W total
• Switching Capacity: 12Gbps
• Communication Mode: Full-duplex and half-duplex
• Functions: PoE, SNMP, and VLAN support
• Chipset: EN8850DHE + TMI7604R

Features

• Provides four Gigabit PoE ports for powering compatible devices.
• Supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards.
• Offers a dedicated Gigabit RJ45 uplink connection.
• Includes a 1000Mbps SFP port for fiber-optic uplink connectivity.
• Supports a total PoE power budget of up to 60W.
• Provides 12Gbps switching capacity for efficient data forwarding.
• Includes SNMP management and VLAN functionality.
• Supports both full-duplex and half-duplex communication.

Applications

The TXE298 is suitable for small surveillance, security, wireless networking,
and office installations. Its PoE ports can deliver both data and electrical
power over a single Ethernet cable, helping simplify the installation of IP
cameras, wireless access points, VoIP phones, and other compatible devices.
The SFP uplink can be used for fiber connections to a network backbone or
another switch.

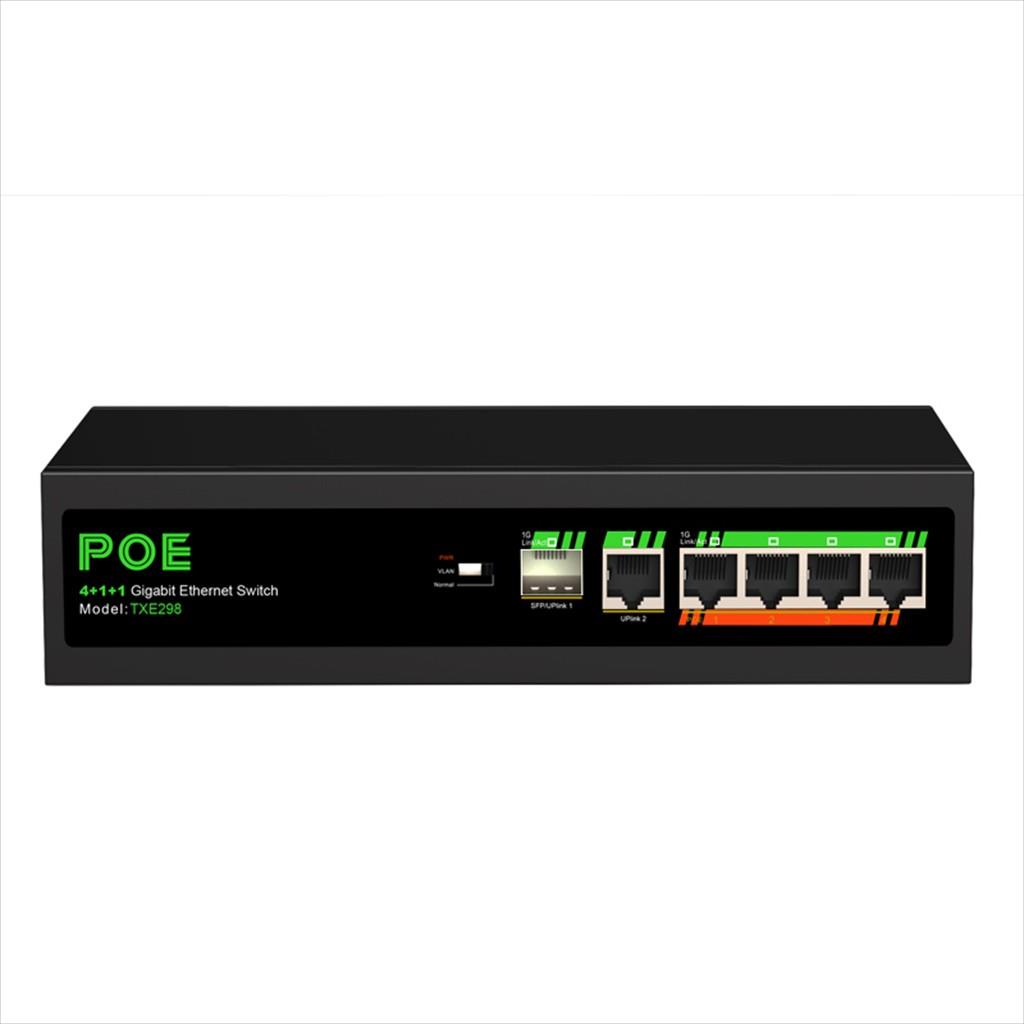

The switch provides six physical ports in total: four PoE RJ45 ports, one
additional RJ45 uplink, and one SFP uplink.
