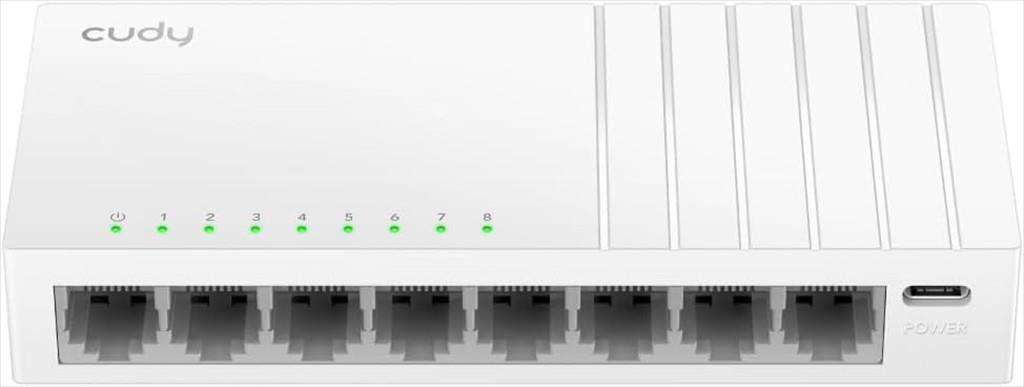

Model Name: 8-Port Gigabit Switch with USB-C Power Input GS108U 2.0
Features
- 8 × Gigabit RJ45 ports for high-speed wired networking
- Powered via USB‑C, ideal for desktops, laptops, and compact setups
- Ultra‑low power consumption: max 4 W, only 1.18 W at idle
- Supports jumbo frames up to 9 KB and 1 Mbit packet buffer for smoother traffic
- Fanless plastic housing for silent, cool operation
- Desktop and wall‑mount installation options
- Status LEDs for power and link/activity on each Ethernet port
Specification
- Gigabit RJ45 ports: 8
- LED indicators: Power, Link/ACT per Ethernet port
- Standards / protocols: IEEE 802.3x Flow Control, 802.3i 10BASE‑T, 802.3u 100BASE‑TX, 802.3ab 1000BASE‑T
- Max copper speed & distance: Cat 3+ 100 m @ 10 Mbps; Cat 5+ 100 m @ 100 Mbps; Cat 5e+ 170 m @ 1 Gbps
- MAC address table: 4096 entries
- Max switching capacity: 16 Gbps
- Max forwarding rate: 11.904 Mpps
- Jumbo frame: Up to 9 KB
- Packet buffer: 1 Mbit
- Power input type: USB‑C port
- Power method: USB‑C, 5 V⎓
- Max power consumption: 4 W
- Idle power consumption: 1.18 W
- EMC / EMS: IEC/EN 61000‑4‑2 Level 2 (ESD: contact 4 kV, air 8 kV); IEC/EN 61000‑4‑5 Level 3 (surge: 2 kV)
- Operating temperature: 0–40 ℃ (32–104 ℉)
- Storage temperature: -40–70 ℃ (-40–158 ℉)
- Operating humidity: 10–90% RH (non‑condensing)
- Storage humidity: 5–90% RH (non‑condensing)
- Dimensions (W × D × H): 138 × 61.5 × 24 mm (5.43 × 2.42 × 0.94″)
- Product weight: 87.5 g (3.09 oz)
- Casing material: Plastic
- Installation: Desktop, Wall‑mount
