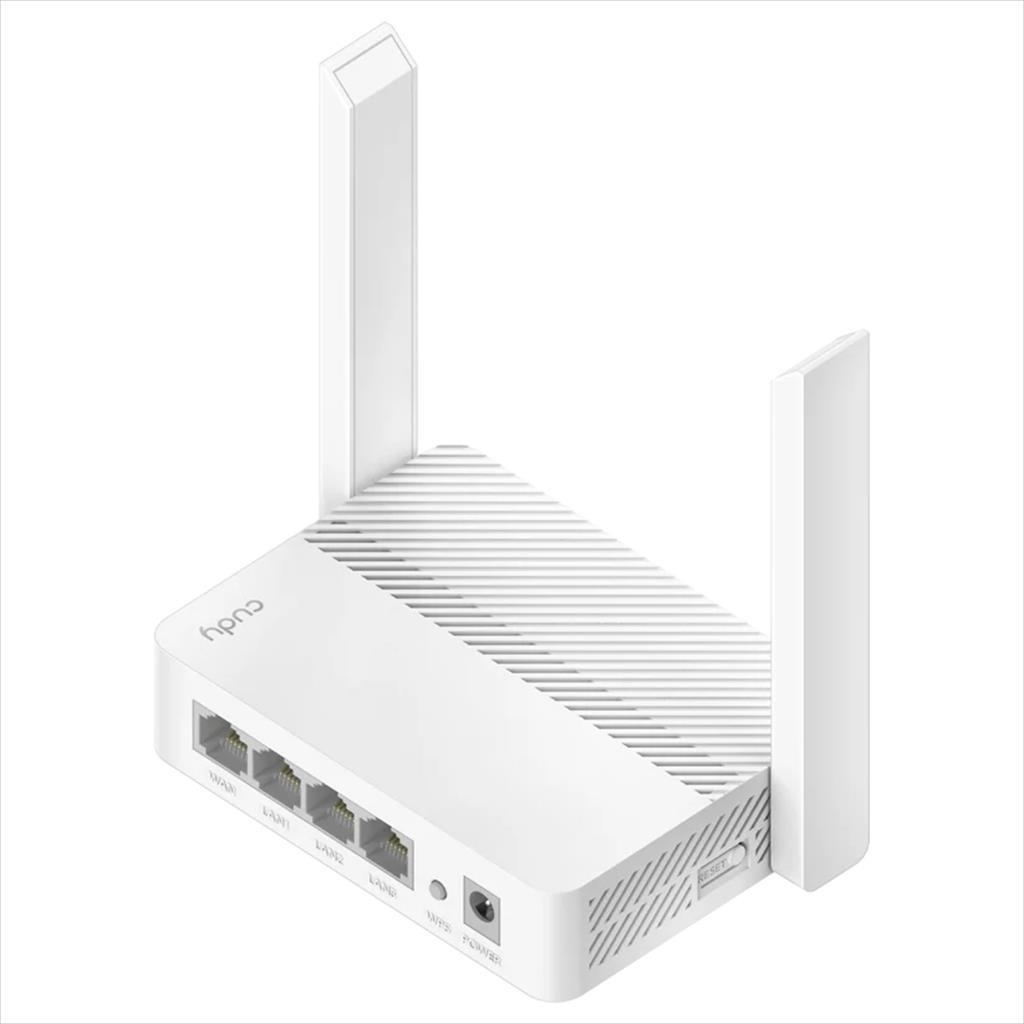

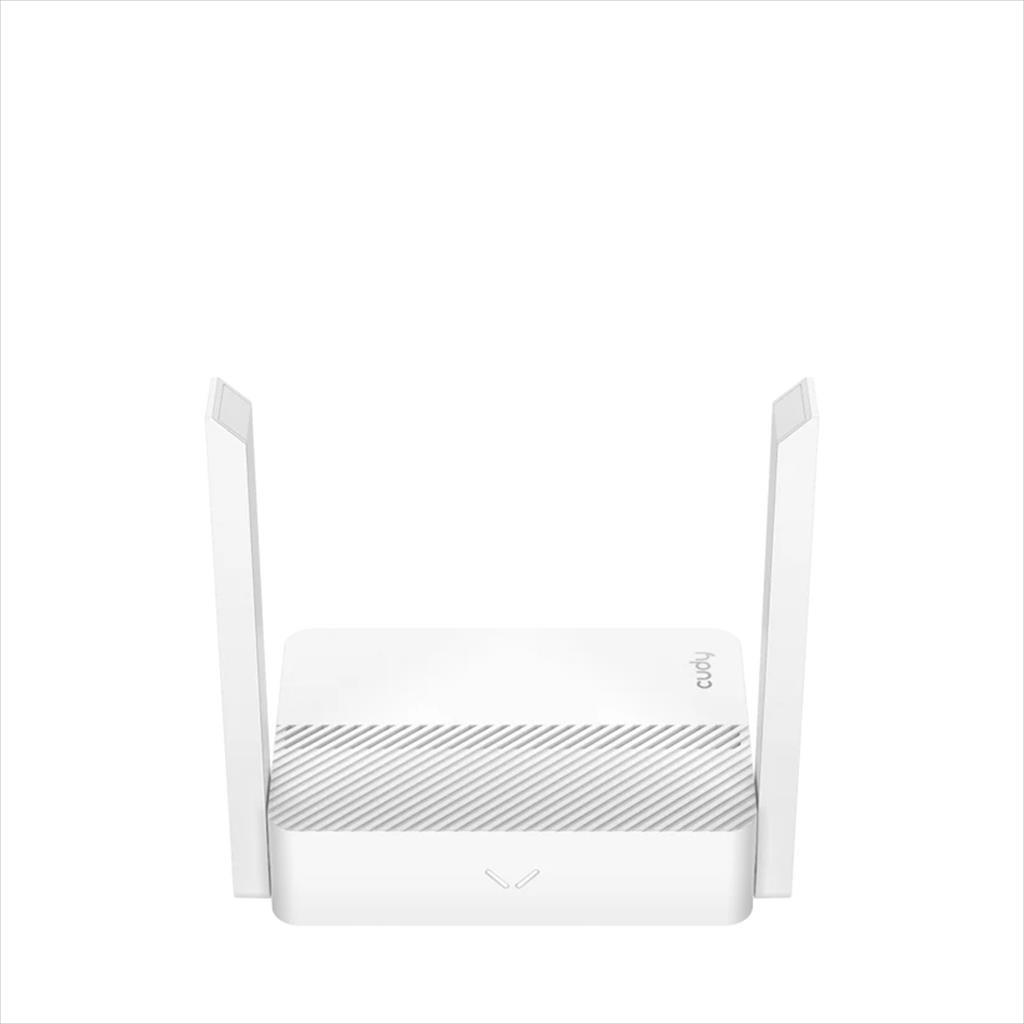

NET ROUTER WIRELESS DUAL BAND AC1200 CUDY WR1200E, w/2 antennas, 1x WAN 10/100 port, 3x LAN 10/100 ports

Model name: CUDY WR1200E

Specifications:

• CPU Chipset: MT7628
• CPU Details: 580 MHz Single-Core, MIPS24KEC
• Memory/Storage Flash/ROM: 8 MB (64 Mbit) NOR
• DDR/RAM: 64 MB (512 Mbit) DDR2
• Wireless 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Fixed
• 5 GHz Antenna Gain Max: 4.93dBi
• 2.4 GHz Antenna Gain Max: 3.49dBi
• FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 170 m (558 ft). Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance: Two wooden walls with thickness < 10 cm (4''). One concrete wall with thickness < 20 cm (7'').
• Interfaces 10/100 Mbps RJ45 Ports: 4
• Ethernet Notes: 1× WAN port, the rest are LAN ports
• LED: System
• Physical Buttons: WPS Button, Reset Button
• Power Input: DC Jack
• Power Power Methods: DC, 12V 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
• Max Power Consumption (W): 8W
• Idle Power Consumption (W): 3W
• Reliability Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉). Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉). Humidity: 10% ~ 90% non-condensing. Storage Humidity: 5% ~ 95% non-condensing.
• Certifications: FCC, CE
