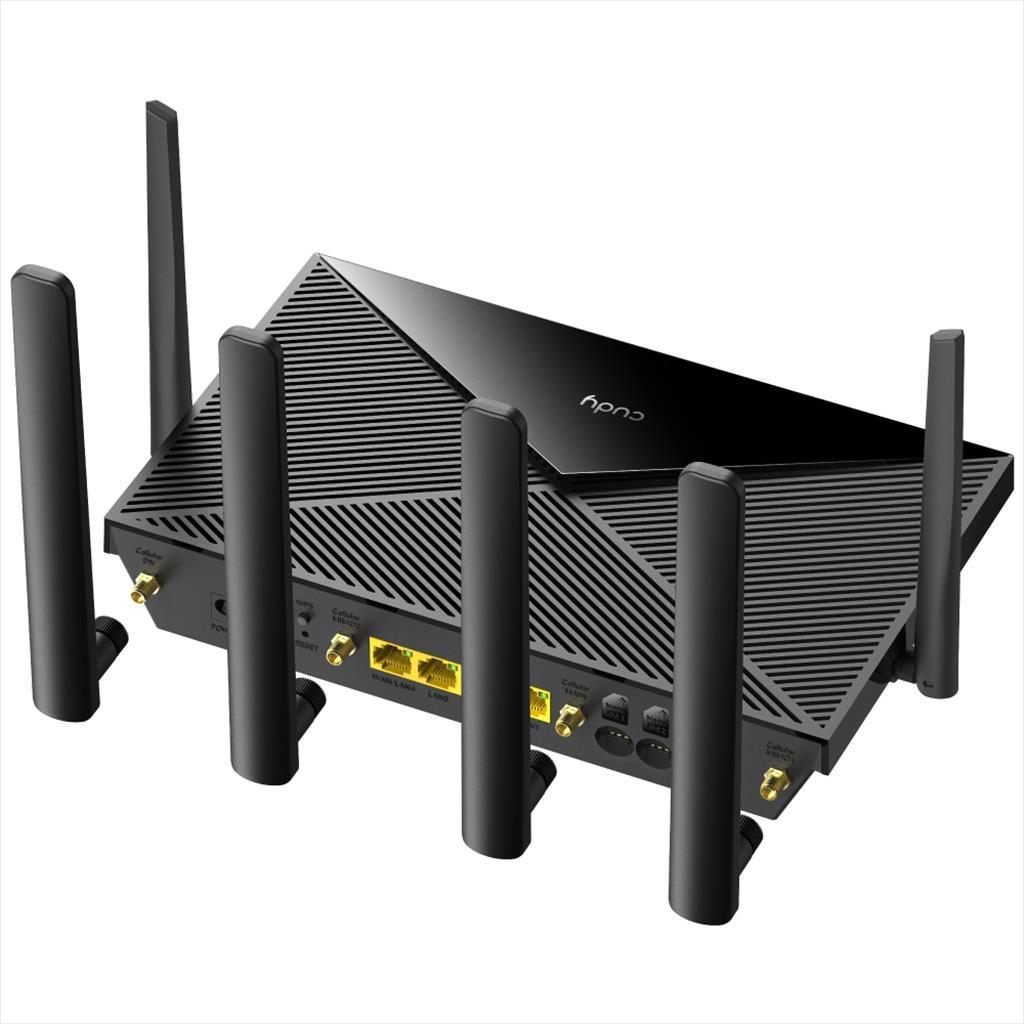

NET ROUTER WIRELESS DUAL BAND AC1200 4G LTE Cat12 CUDY LT12 w/6 antennas, 1x WAN 10/100/1000 port, 4x LAN 10/100/1000 ports

Model Name: CUDY DUAL BAND AC1200 4G LTE Cat12 CUDY LT12

Specification

• Data Speed: Wi-Fi 2.4GHz (802.11n/g/b, MIMO 300Mbps), 5GHz (802.11ac/an/a, MIMO 867Mbps)
• LTE: LTE FDD: Max 600Mbps (DL)/150Mbps (UL), LTE TDD: Max 430Mbps (DL)/90Mbps (UL)
• DC-HSPA+: 42 Mbps (DL)/11.5 Mbps (UL)
• WCDMA: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
• Hardware:
• CPU: Mediatek Dual Core 880MHz
• 4G Module: Quectel EG120K (Qualcomm)
• DRAM: 256MB (2Gbit) DDR3
• Flash: 16MB (128Mbit)
• 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
• 2 x SIM Slots (Nano)
• 1 x WPS Button
• 1 x Reset Button
• 2 x Fixed WiFi Antennas
• 4 x Detachable Cellular Antennas
• LED indicators: Power, WiFi, Internet, Signal
• Software:
• DHCP: Server, Client List, Address Reservation
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall: Mac Filter, IP Filter, Domain Filter
• DDNS: Compatible with 20 more DDNS providers
• VPN Client: PPTP/L2TP/OpenVPN/WireGuard
• DNS over TLS: Cloudflare/NextDNS/Google
• Schedule: Schedule Reboot/Wi-Fi Schedule
• Internet Protocol version: 4 or 6 (IPv4/IPv6)
• Quality of Service (QoS)
• TTL configuration: Extend/Spoof
• Band Selection
• Mobile Frequency Band:
• EU Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B38/B40/B41, WCDMA: B1/B3/B5/B8
• Power: AC Power Adapter: Input: 90~260V Output: 12V, 1.5A, DC input (12V-1.5A) Barrel Plug
• SMS: Send Message, Receive Message, USSD
• Environmental: Operation Temperature: 0° C to +45° C, Storage Temperature: -40° C to +70° C, Relative Humidity: 5% to 95% Non-Cond
• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
