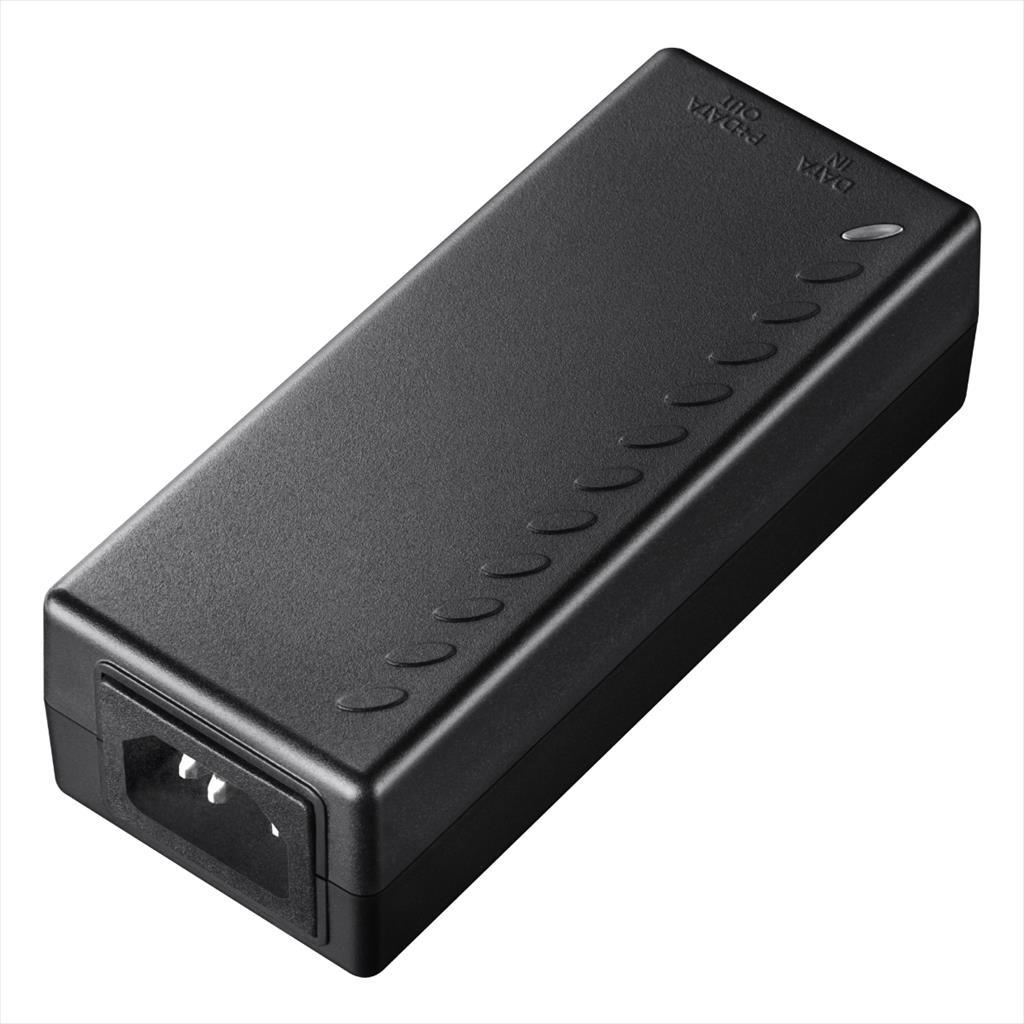

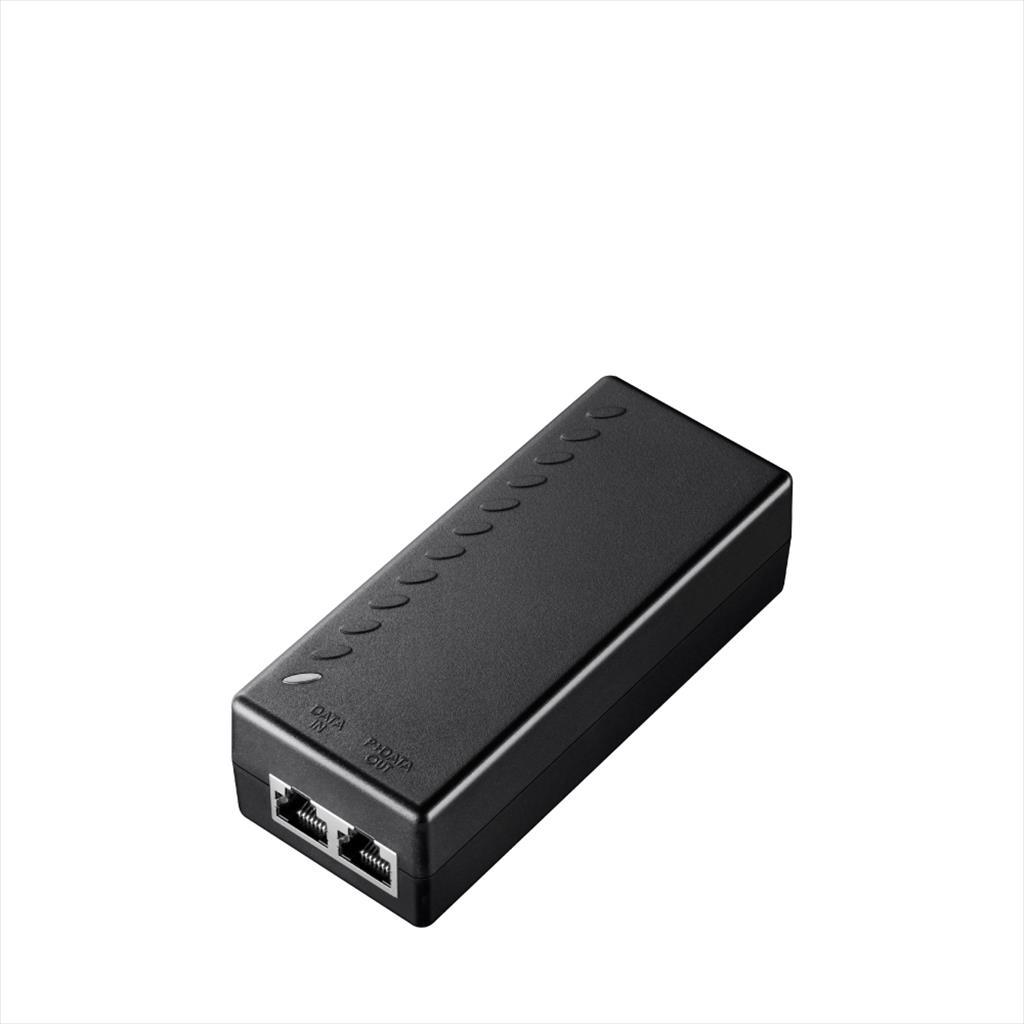

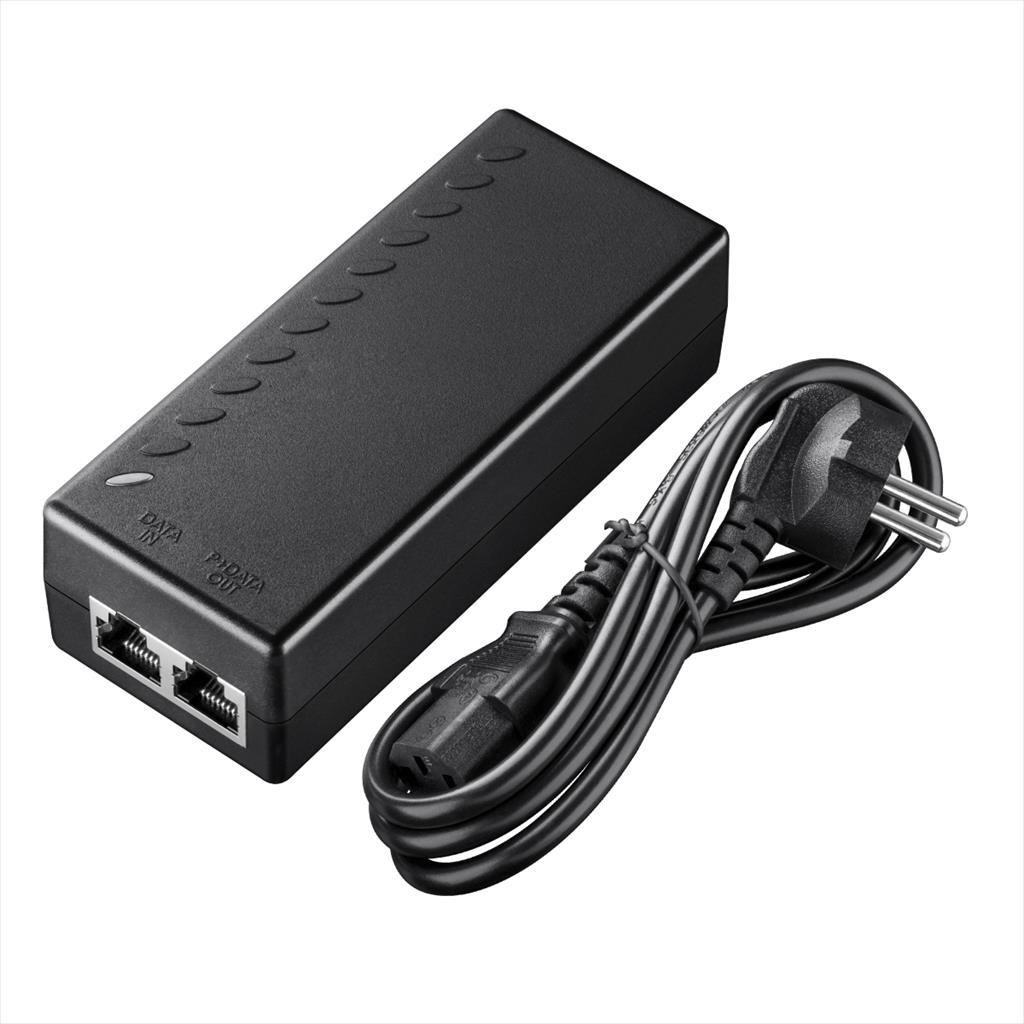

Net injector cudy poe+/poe 30w poe200

POE200 Specifications

• Model: POE200
• No. of channels: 1
• Pass Through Data Rates: 10/100/1000Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
  • Output Power Voltage: 54VDC
  • User Port Power: 30W max
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 VAC
  • AC Input Current: 0.5A 100-240 VAC
  • AC Frequency: 50 to 60 Hz
• Dimensions: 121mm x 50mm x 36mm
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power

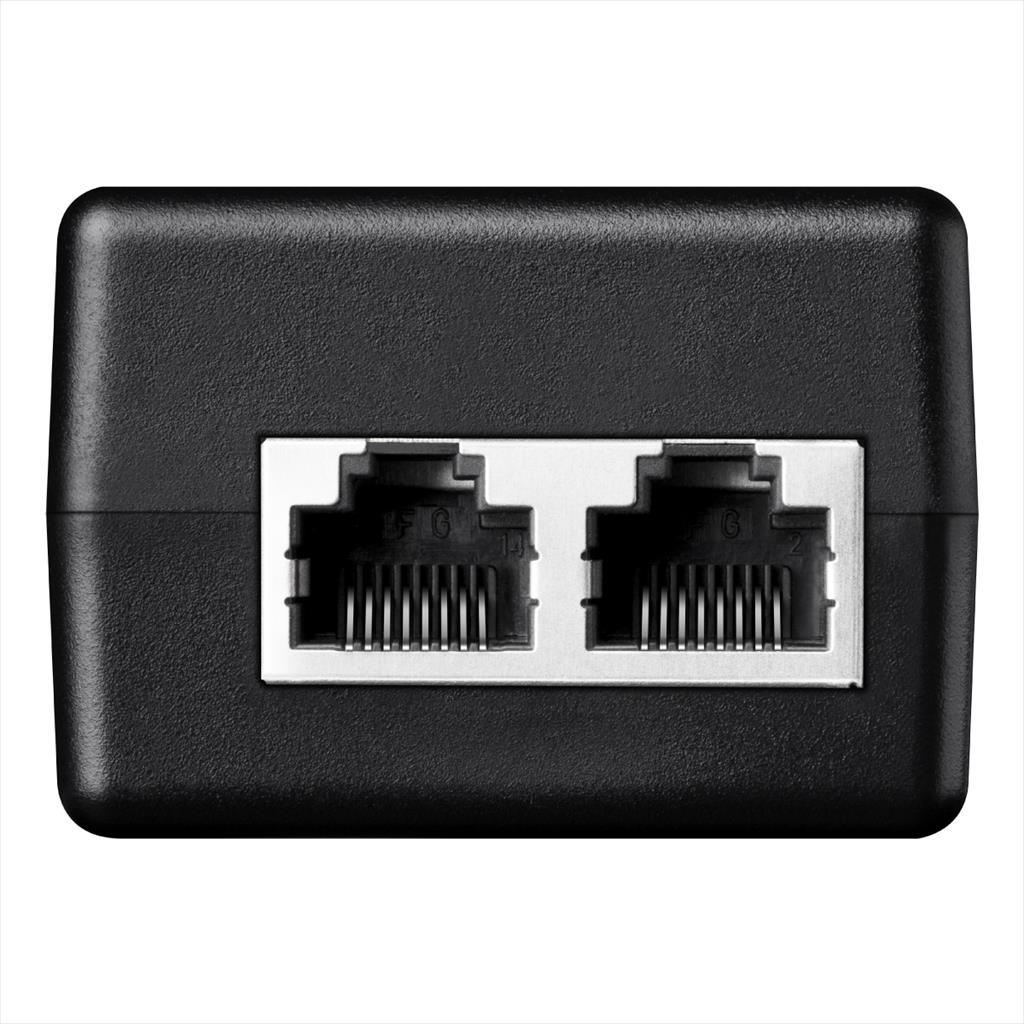

• Connectors: Shielded RJ-45, EIA 568A and 568B
• Protection:
  • Over current protection
  • Over load protection
  • Over voltage protection
  • Anti-interference protection
• Environmental Conditions:
  • Operating Ambient Temperature: -40 to 40℃
  • Operating Humidity: Maximum 85%, Non-condensing
  • Storage Temperature: -40 to 50℃
  • Storage Humidity: Maximum 90%, Non-condensing
