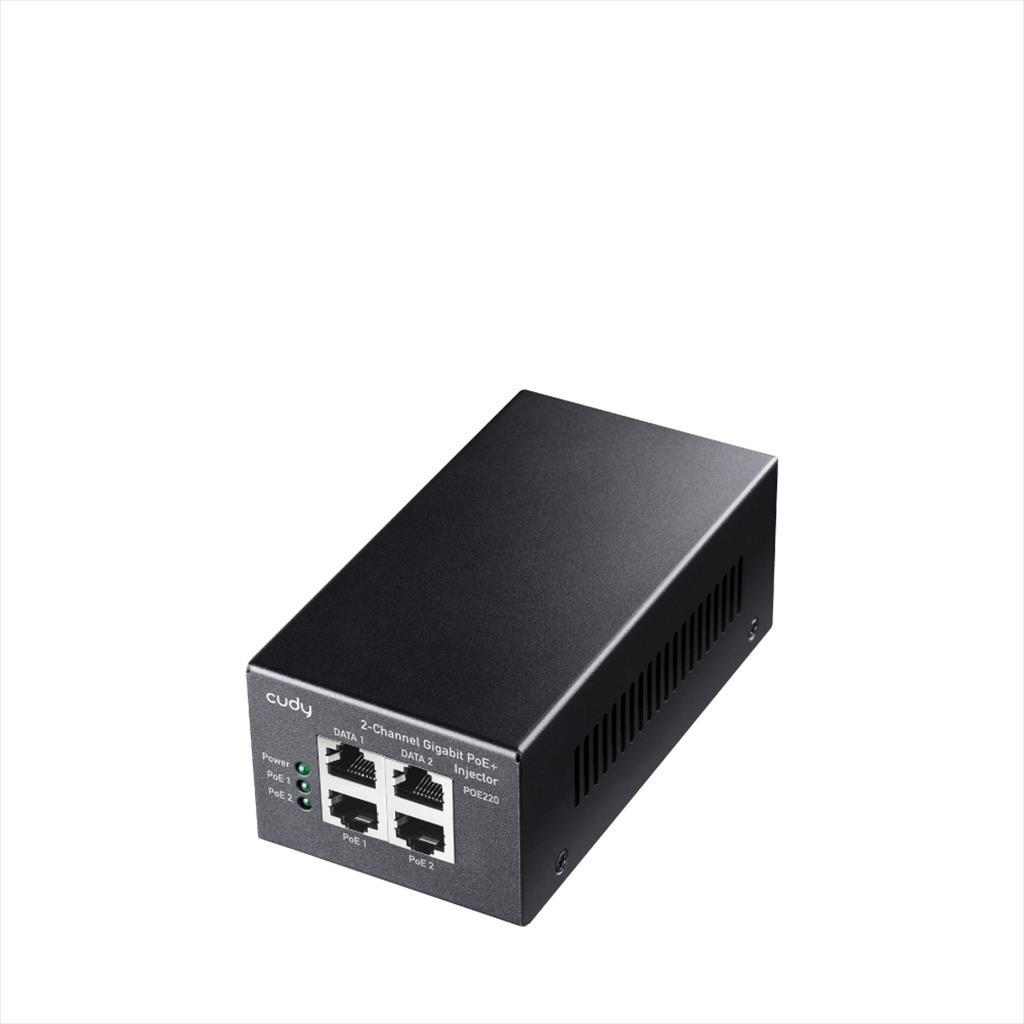

Net injector cudy poe+/poe 2x30w poe220

Model Name: CUDY POE220

Specifications

• No. of Channels: 2
• Pass Through Data Rates: 10/100/1000 Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
  • Output Power Voltage: 54VDC
  • User Port Power: 30W max
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 VAC
  • AC Input Current: 0.8A 100-240 VAC
  • AC Frequency: 50 to 60 Hz
• Dimensions: 131mm x 70mm x 40mm
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Protection:
  • Over current protection
  • Over load protection
  • Over voltage protection
  • Anti-interference protection

Environmental Conditions

• Operating Ambient Temperature: 0 to 40℃
• Operating Humidity: Maximum 80%, Non-condensing
• Storage Temperature: -20 to 70℃
• Storage Humidity: Maximum 80%, Non-condensing
