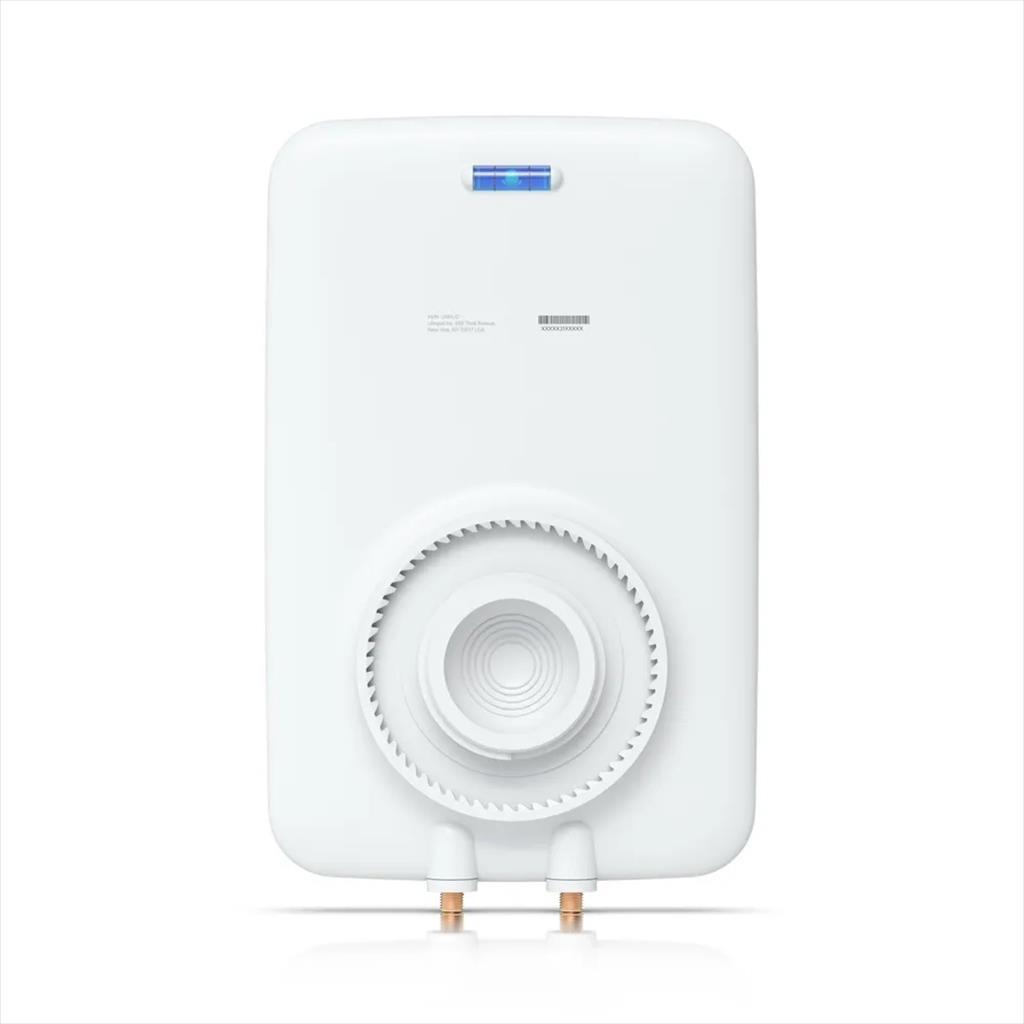

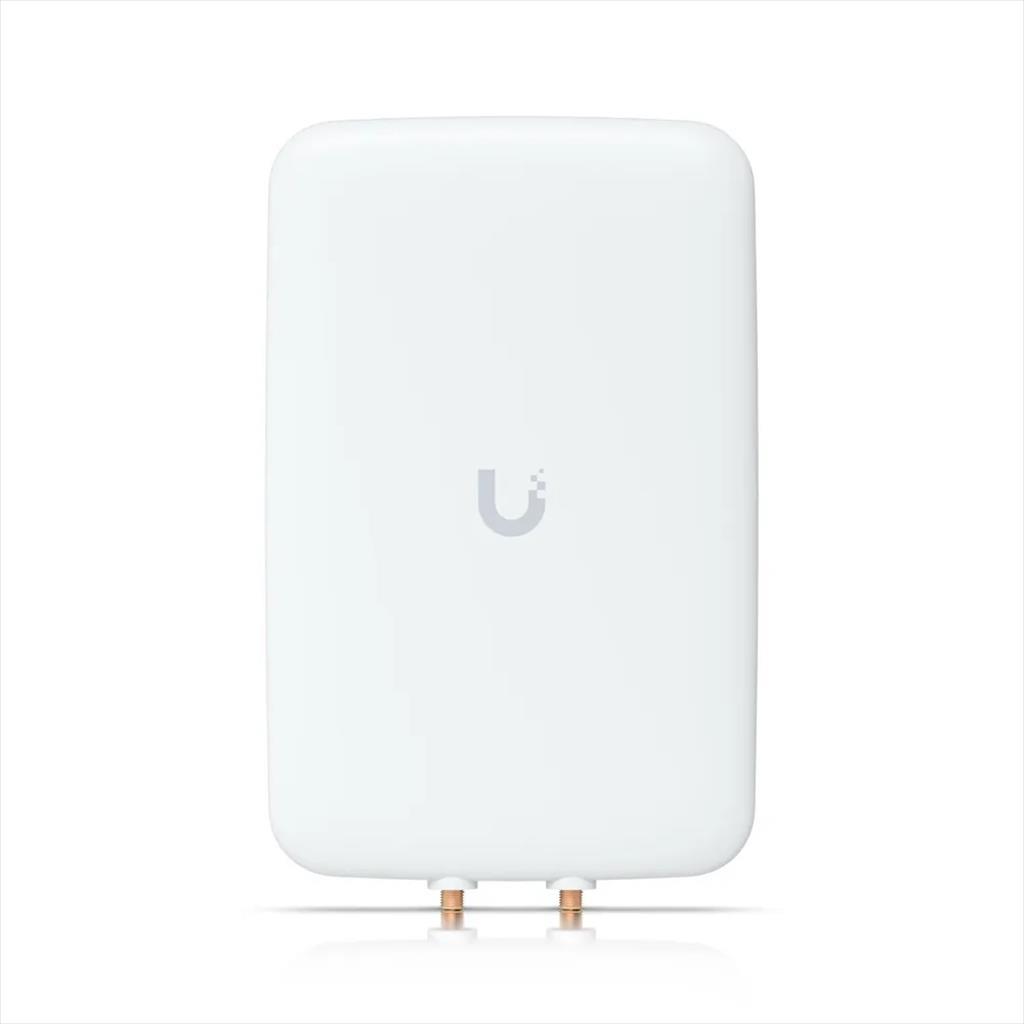

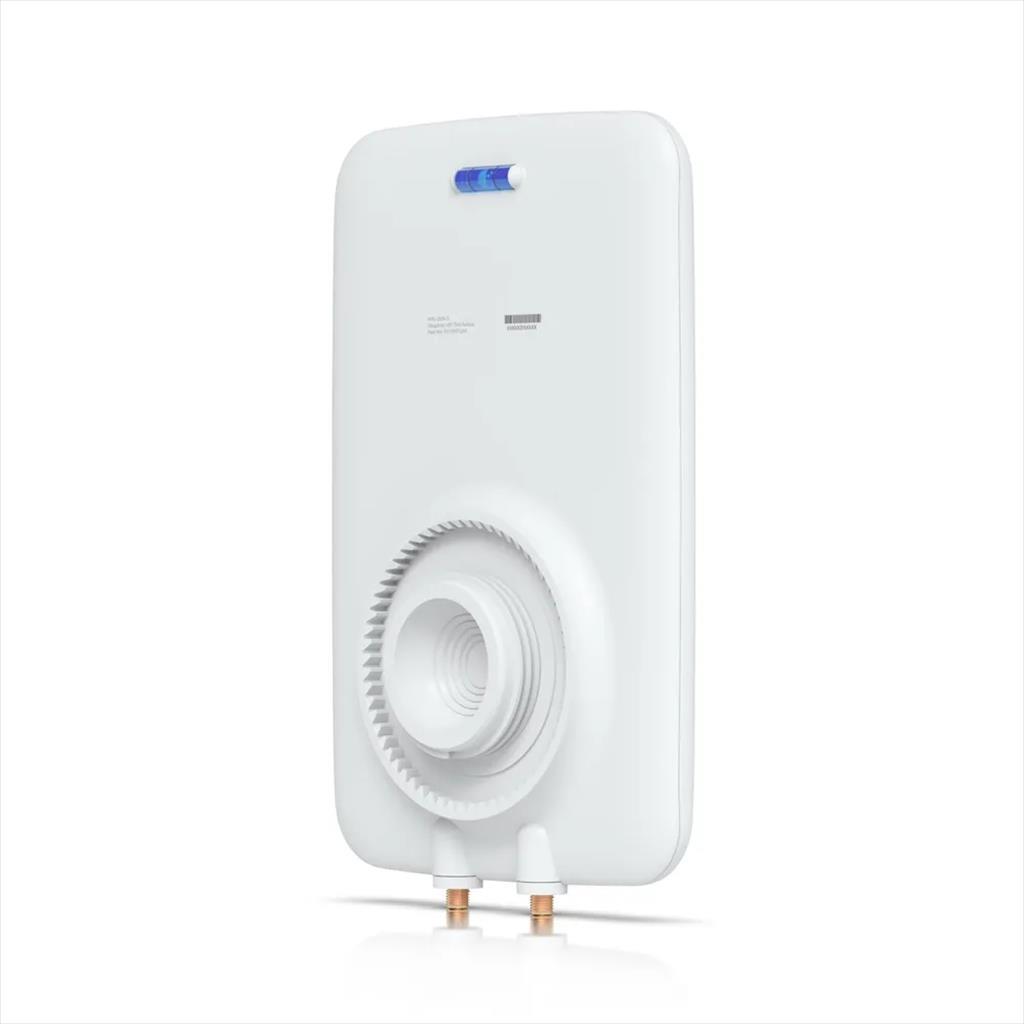

Net directional dual-band antenna for access point mesh ubiquiti uap-ac-m

Name: NET DIRECTIONAL DUAL-BAND ANTENNA FOR ACCESS POINT MESH UBIQUITI UAP-AC-M
Brand: UBIQUITI
SKU: 17636
Availability: InStock

8.100 ден

Сакаш дополнителен попуст? Стани член со активирање на PRO членство!

Бесплатна достава за скоро сите производи Безбедна нарачка плаќање со картичка Поддршка [email protected]

Опис

Mechanical
- Dimensions: 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3″)
- Weight: Without mount: 400 g (0.9 lb), With mount: 480 g (1.1 lb)
- Enclosure material: Outdoor UV-stabilized plastic
Hardware
- Supported frequency range: 2.4–2.5 GHz, 5.1–5.9 GHz

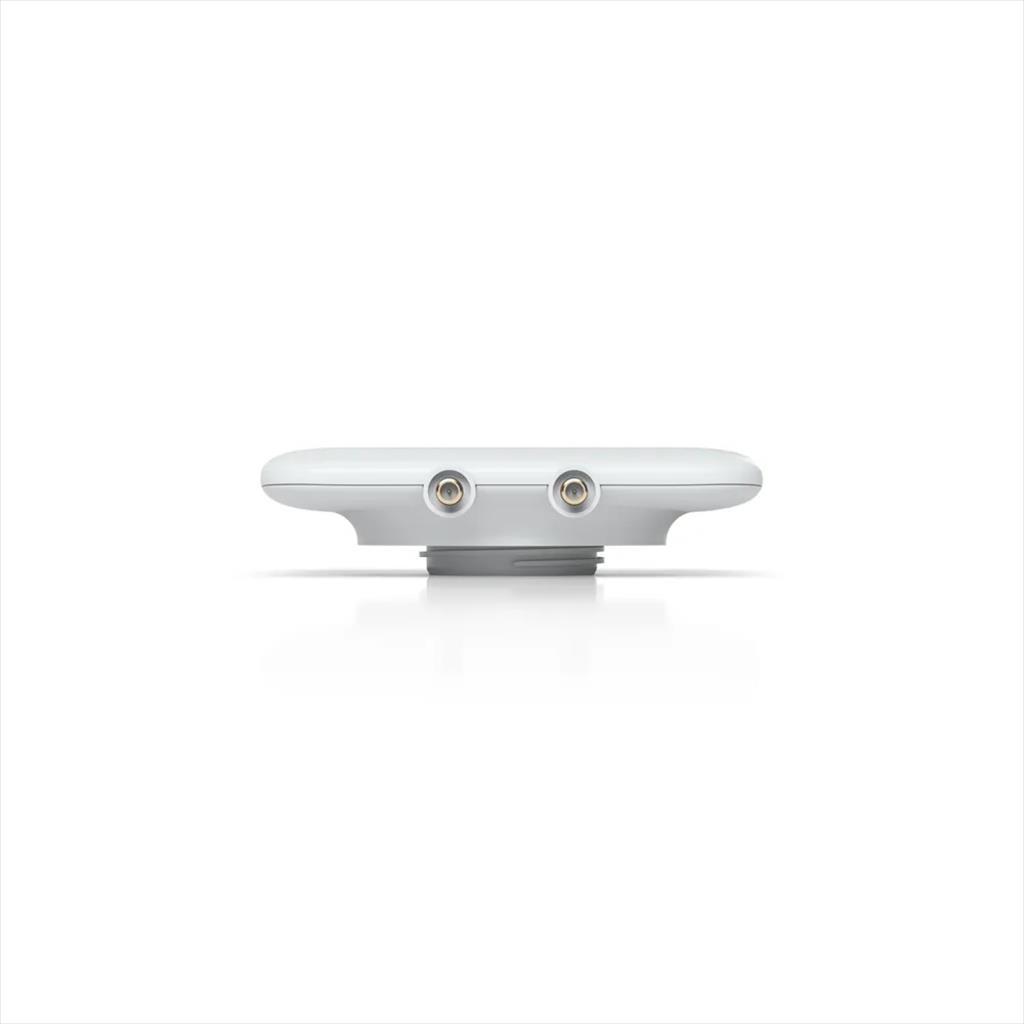

- RF Connections: (2) RP-SMA
- Gain:
  - 2.4 GHz: 10 dBi
  - 5 GHz: 15 dBi
- HPOL beamwidth:
  - 2.4 GHz: 90°
  - 5 GHz: 45°
- VPOL beamwidth:
  - 2.4 GHz: 90°
  - 5 GHz: 45°
- Elevation beamwidth:
  - 2.4 GHz: 90°
  - 5 GHz: 45°
- Max VSWR: 2:1
- Polarization: Dual-linear
- Cross-pol isolation:
  - 2.4 GHz: 25 dB
  - 5 GHz: 30 dB
- NDAA Compliant: Yes
