Mb am5 x870e taichi lite asrock 4xddr5 8200mhz (o.c), hdmi, 2xpci-ex16 5.0, 4xm.2,6xsata3,bt 5.4, 90-mxbpa0-a0uayz

Опис

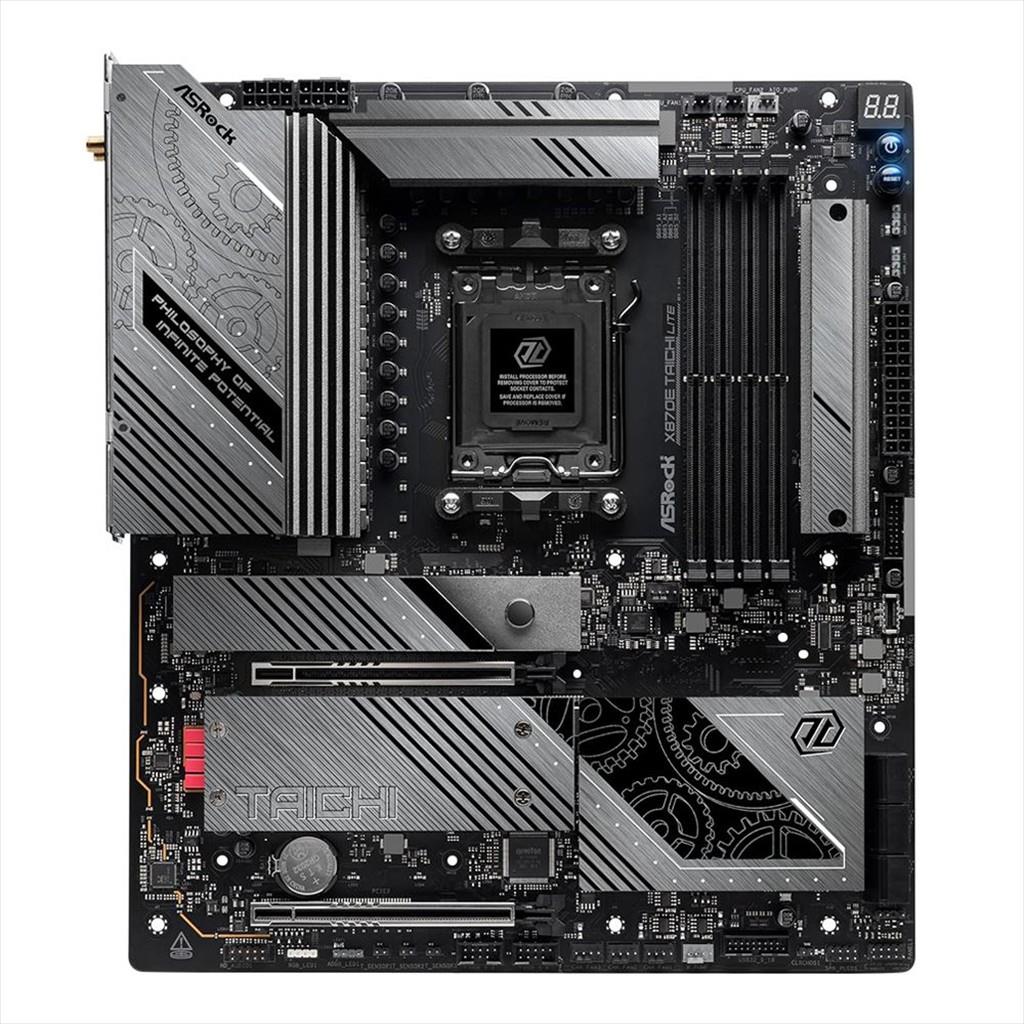

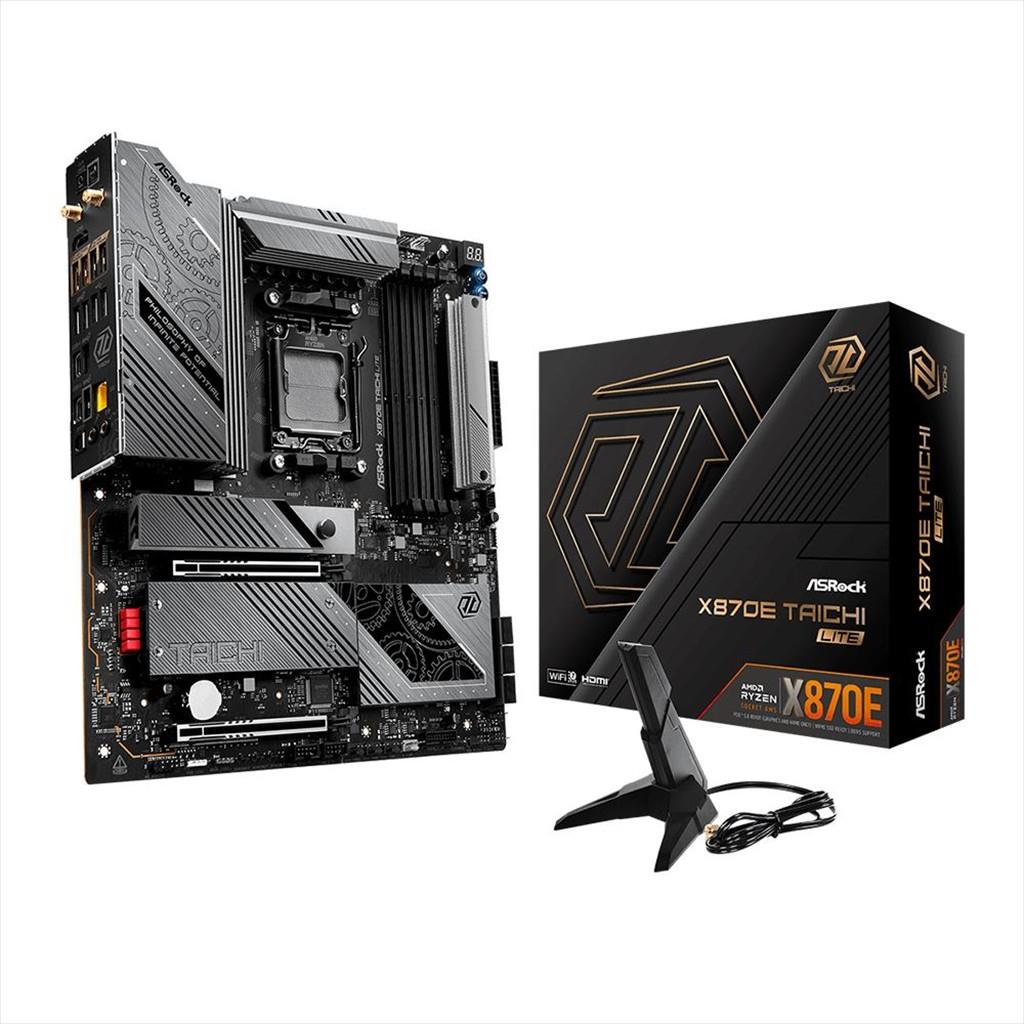

ASRock X870E Taichi Lite AM5 DDR5 EATX Motherboard

The ASRock X870E Taichi Lite is a high-performance EATX motherboard
designed for AMD Socket AM5 processors. It supports DDR5 memory, PCIe 5.0
graphics, multiple high-speed NVMe storage devices, USB4 connectivity,
5Gbps Ethernet, and Wi-Fi 7 wireless networking.

Key Features

• AMD Socket AM5 platform
• AMD X870E chipset
• Supports dual-channel DDR5 memory
• Up to 256GB system memory capacity
• PCIe 5.0 graphics support with x16 or x8/x8 operation
• PCIe Gen5 and Gen4 M.2 storage support
• USB4 Type-C connectivity up to 40Gbps
• 5 Gigabit Ethernet
• Integrated Wi-Fi 7 and Bluetooth 5.4
• High-quality Realtek and ESS SABRE audio hardware

Memory

• Memory Type: DDR5
• Memory Slots: 4 x DDR5 DIMM
• Memory Architecture: Dual-channel
• Maximum Capacity: 256GB
• Supported Memory: ECC and non-ECC unbuffered memory
• Maximum Overclocked Speed: DDR5-8200+ (OC)
• Memory Profiles: AMD EXPO and Intel XMP

Expansion Slots

• 2 x PCIe 5.0 x16 slots
• Supports x16 or x8/x8 operating modes
• 1 x vertical M.2 Key E socket for 2230 Wi-Fi/Bluetooth modules

Graphics Outputs

• 1 x HDMI 2.1 TMDS/FRL 8G-compatible port
• Supports HDR and HDCP 2.3
• Maximum HDMI resolution: 4K at 120Hz
• 2 x USB4 Type-C ports with display output support
• Maximum USB4 display resolution: 8K at 30Hz

Storage

• 1 x Blazing M.2 socket, Key M, supporting 2280 PCIe Gen5 x4 mode up to 128Gbps
• 3 x Hyper M.2 sockets, Key M, supporting 2280 PCIe Gen4 x4 mode up to 64Gbps each
• 6 x SATA3 6.0Gbps connectors
• Supports NVMe SSD boot drives
• Supports RAID 0, RAID 1, and RAID 10 for SATA storage
• Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage

Networking

• Wired LAN: 1 x 5 Gigabit Ethernet port
• LAN Controller: Realtek RTL8126CG
• Supported Ethernet Speeds: 10/100/1000/2500/5000Mbps
• Wireless Standard: Wi-Fi 7, IEEE 802.11be
• Wireless Configuration: 2×2
• Supported Wireless Standards: 802.11a/b/g/n/ac/ax/axe/be
• Frequency Bands: 2.4GHz, 5GHz, and 6GHz
• 6GHz Channel Bandwidth: Up to 160MHz
• Bluetooth: Bluetooth 5.4
• MU-MIMO support

USB Connectivity

• 2 x USB4 Type-C ports on the rear panel, up to 40Gbps
• 2 x USB 3.2 Gen2 Type-A ports on the rear panel
• 1 x front-panel USB 3.2 Gen2x2 Type-C port, up to 20Gbps
• 3 x USB 3.2 Gen2 Type-A ports on the rear panel, up to 10Gbps
• 7 x USB 3.2 Gen1 Type-A ports, including 3 rear and 4 front ports
• 6 x USB 2.0 ports, including 2 rear and 4 front ports
• All USB ports feature ESD protection

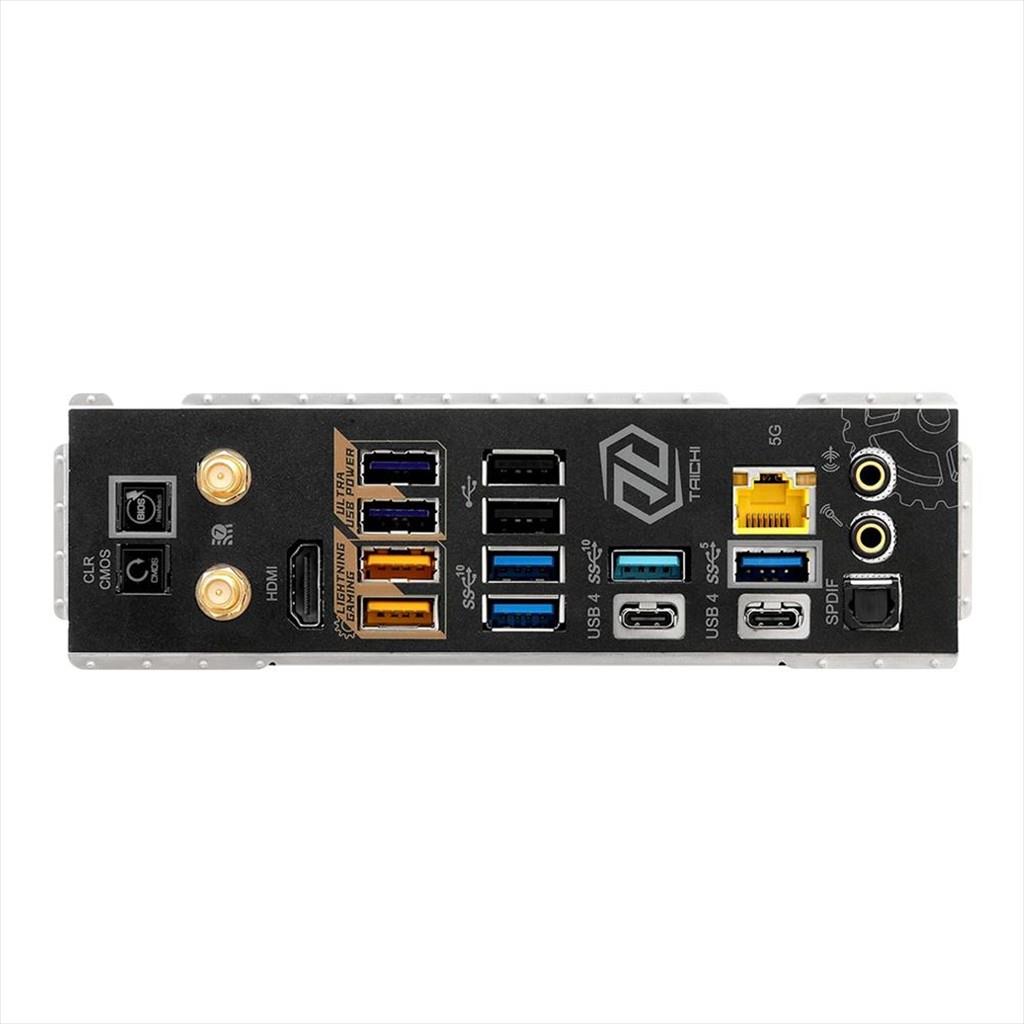

Rear Panel I/O

• 2 x Wi-Fi antenna connectors
• 1 x HDMI port
• 1 x optical S/PDIF output
• 2 x USB4 Type-C ports
• 5 x USB 3.2 Gen2 Type-A ports
• 3 x USB 3.2 Gen1 Type-A ports
• 2 x USB 2.0 ports
• 1 x RJ-45 5Gbps LAN port
• 1 x Clear CMOS button
• 1 x BIOS Flashback button
• 1 x line-out jack with gold-plated connector
• 1 x microphone input jack with gold-plated connector
