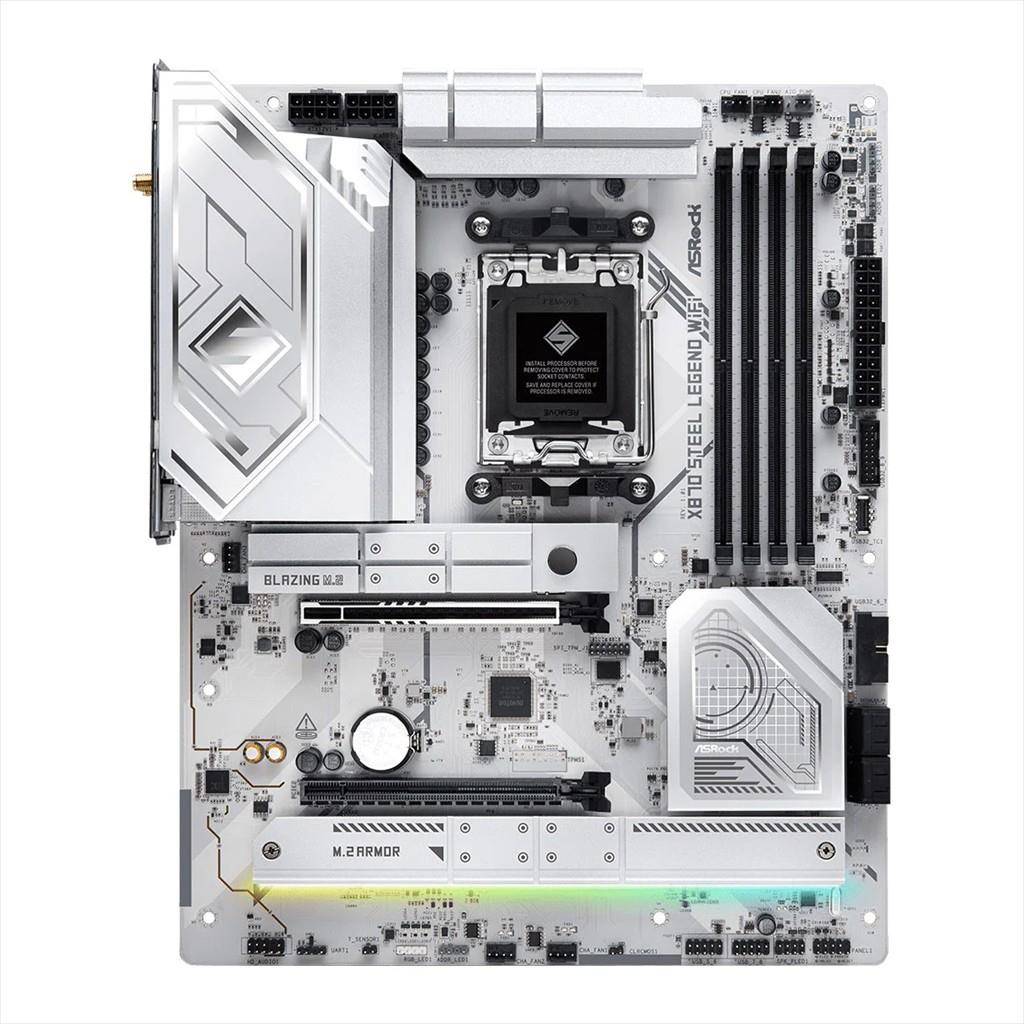

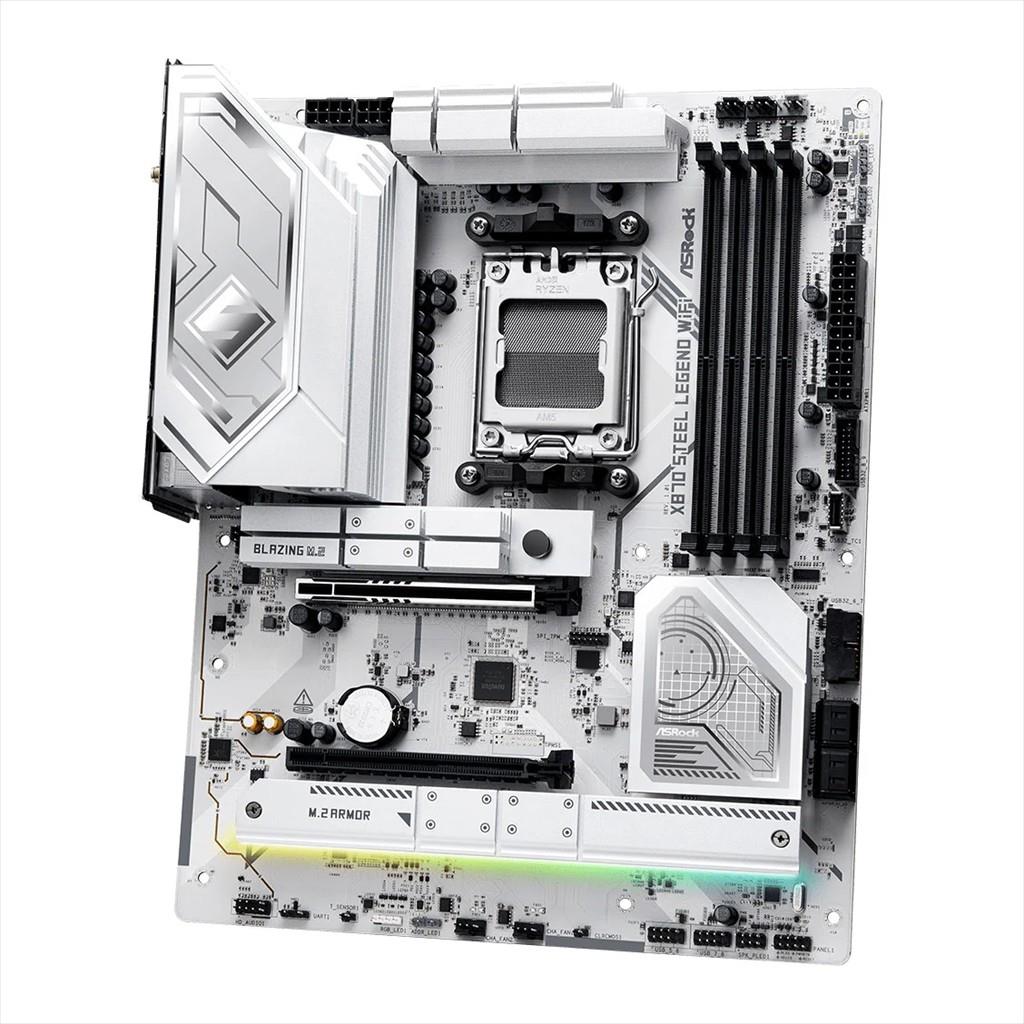

Model Name: ASRock X870 Steel Legend WiFi motherboard, socket AM5, AMD X870, ATX, DDR5
Features
- Supports AMD AM5 processors on the AMD X870 chipset
- 4 × DDR5 DIMM slots, up to 256 GB and 8000 MT/s (OC) with ECC support
- 1 × PCIe 5.0 x16 (x16) and 1 × PCIe 5.0 x16 (wired x4) for next‑gen GPUs and expansion
- 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) plus 4 × SATA 6G for high-speed storage
- Rich rear I/O with 2 × USB4 Type‑C, 2 × USB 3.1 Type‑A, 3 × USB 3.0 Type‑A and 4 × USB 2.0
- OC‑ready 17‑phase VRM design and BIOS Flashback support
- Integrated Wi‑Fi and 2.5 Gbit/s LAN for fast, flexible networking
- 6 × 4‑pin PWM fan headers and M.2 heatsinks for advanced cooling
- ARGB/RGB headers and onboard lighting for customisable RGB builds
- High-end audio with Realtek ALC4082 codec
Specification
- Form factor: ATX
- CPU manufacturer: AMD
- CPU socket: AM5
- Chipset: AMD X870
- Dual BIOS: No
- Memory type: DDR5 DIMM
- Memory slots: 4
- Max memory: 256 GB
- Max memory speed (OC): 8000 MT/s
- ECC support: Yes
- LAN: 1 × 2.5 Gbit/s
- Wi‑Fi / Bluetooth: Yes
- Expansion slots:
- • 2 × PCIe x16 total
- • 1 × PCIe 5.0 x16 (mechanical)
- • 1 × PCIe 4.0 x4 (mechanical)
- Storage:
- • 1 × M.2 PCIe 5.0 x4
- • 2 × M.2 PCIe 4.0 x4
- • 1 × M.2 E‑Key
- • 4 × SATA 6G (internal)

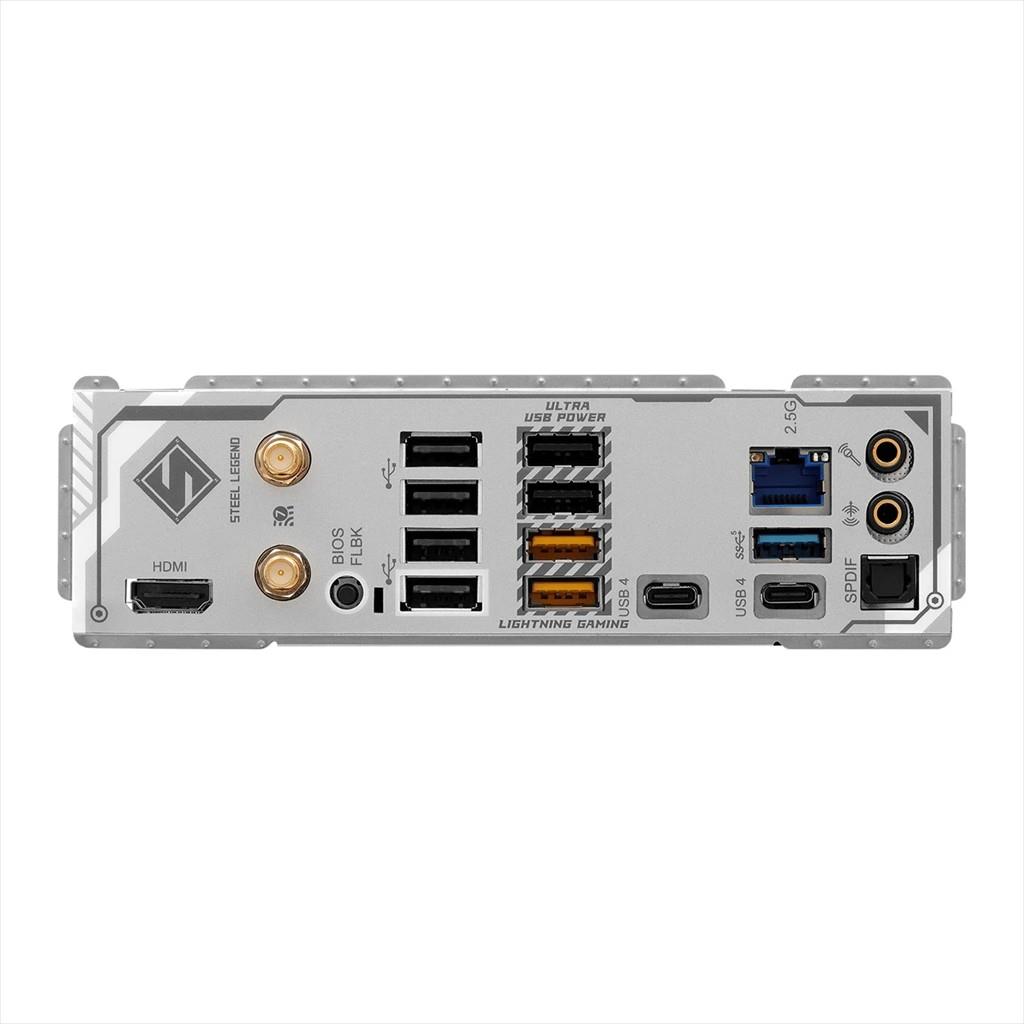

- Rear USB:
- • 2 × USB4 Gen 3×2 Type‑C
- • 2 × USB 3.1 Type‑A
- • 3 × USB 3.0 (USB 3.2 Gen1) Type‑A
- • 4 × USB 2.0 Type‑A
- Internal USB headers:
- • 1 × USB 3.2 Type‑C header (5 Gb/s)
- • 2 × USB 3.0 headers (up to 4 ports)
- • 2 × USB 2.0 headers (up to 4 ports)
- Display outputs: 1 × HDMI
- RGB / LED headers: 1 × 12 V RGB (4‑pin 5050), 3 × 12 V RGB (4‑pin 5050)
- Front panel audio header: Yes
- CPU power: 2 × 8‑pin
- Cooling: 6 × 4‑pin fan connectors, M.2 heatsinks
- Watercooling integration: No
- Audio codec: Realtek ALC4082
- Lighting: RGB
- Back‑connect design: No
- VRM phases: 17‑phase VRM (OC feature)
