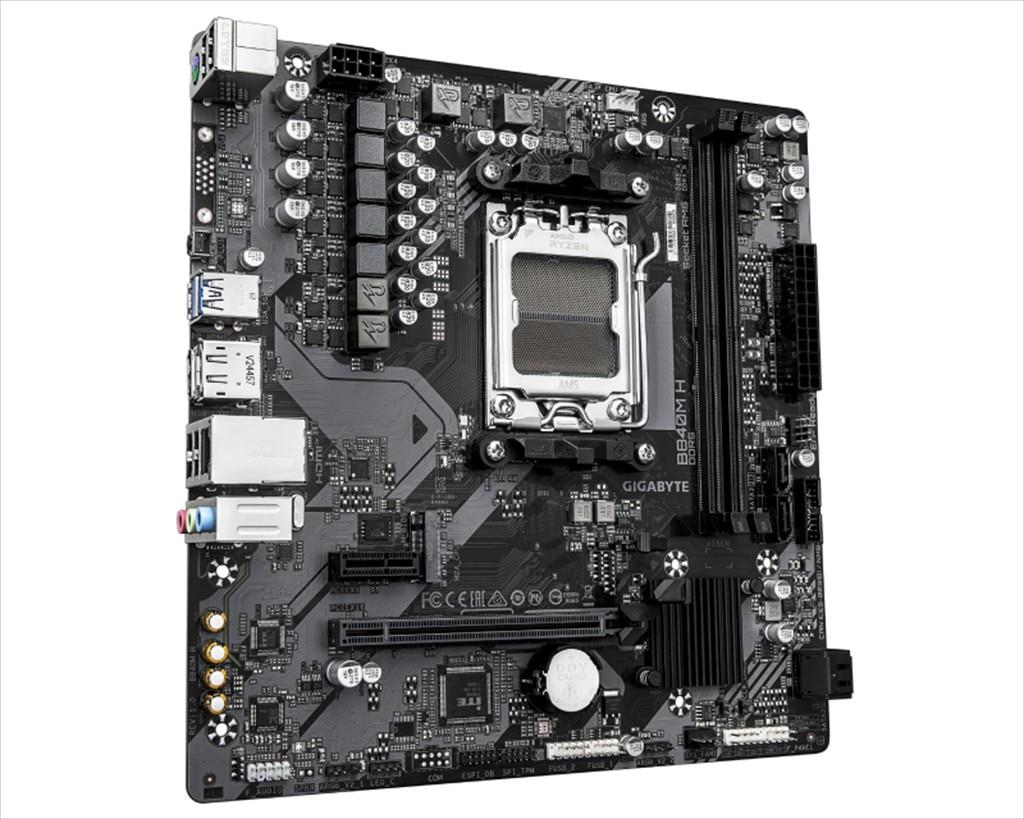

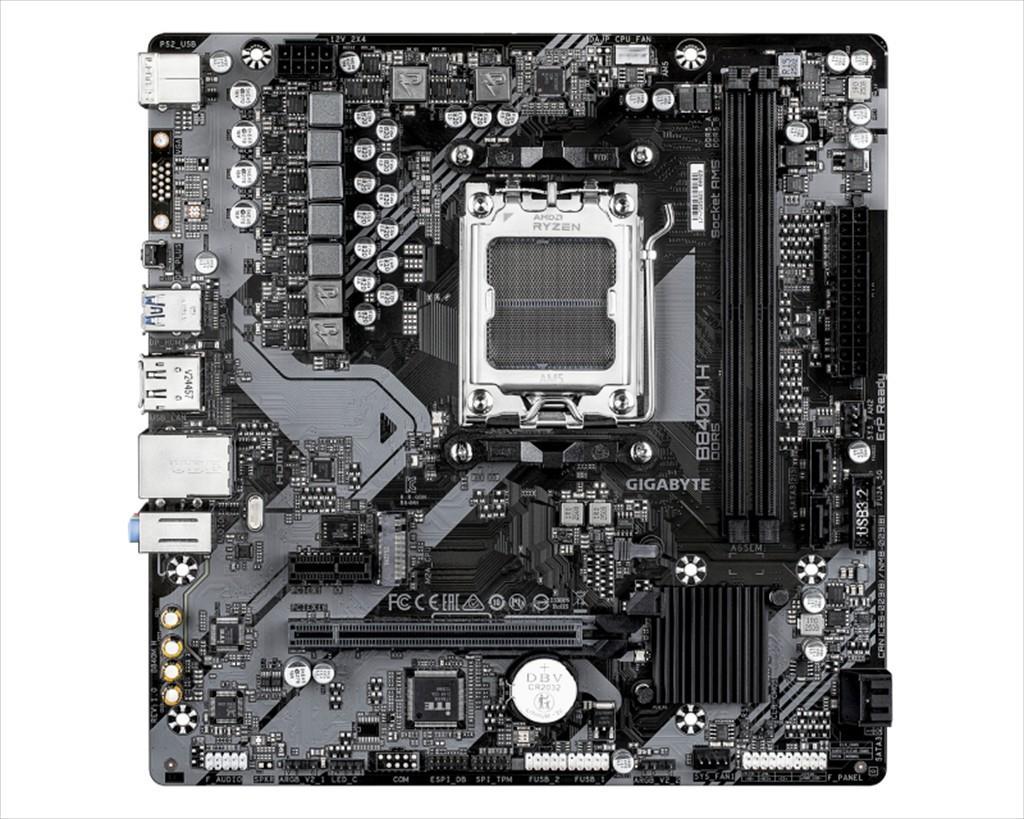

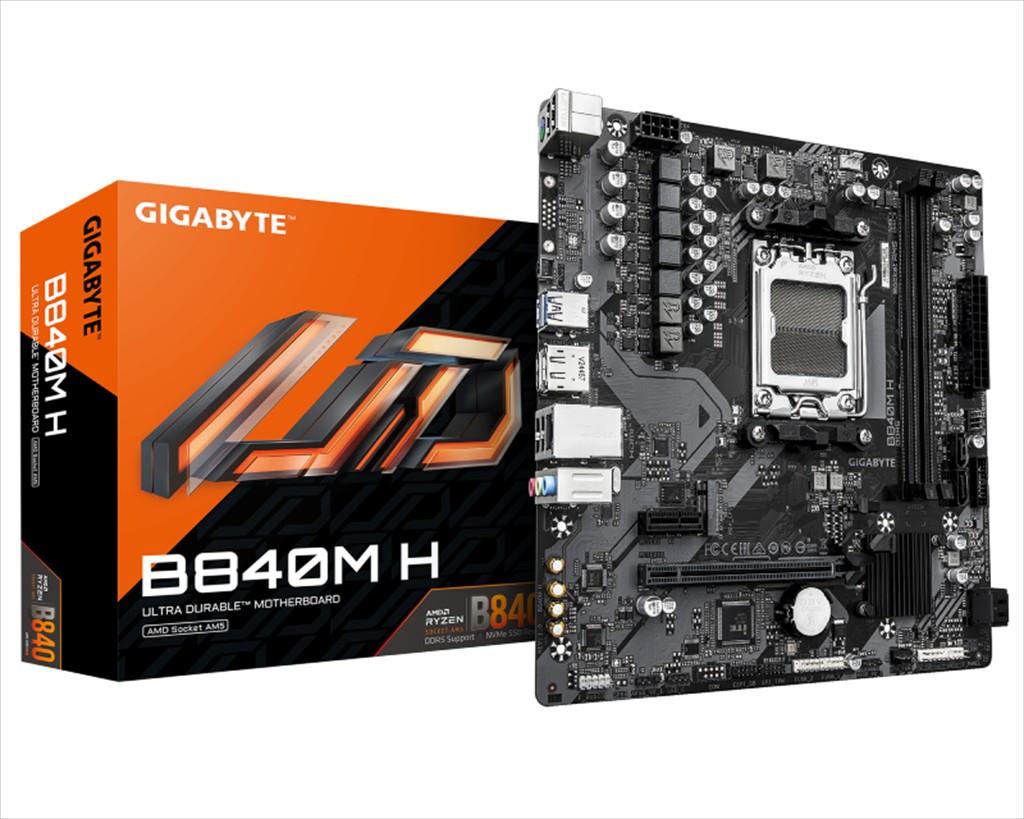

Model Name: Gigabyte B840M H AM5 mATX Motherboard
Features
- Micro ATX motherboard based on the AMD B840 chipset for AM5 desktop systems
- Supports AMD Ryzen 7000 Series, Ryzen 8000 Series and Ryzen 9000 Series processors
- Two DDR5 DIMM slots support up to 128GB of system memory
- Supports DDR5 memory speeds up to 7200MHz
- Dual-channel memory architecture for improved bandwidth
- Supports unbuffered, non-ECC DDR5 memory modules
- Includes one M.2 slot with PCI Express 4.0 support for fast SSD storage
- Four SATA III connectors support additional HDDs and SSDs
- Supports RAID 0, 1, 5 and 10 storage configurations
- Integrated Realtek RTL8111H Gigabit Ethernet controller for wired networking
- Realtek ALC897 audio chip provides 7.1-channel audio output
- Rear HDMI 2.1 and DisplayPort 1.4 outputs support compatible Ryzen processors with integrated graphics
- Maximum supported display resolution is 4096 x 2160 pixels

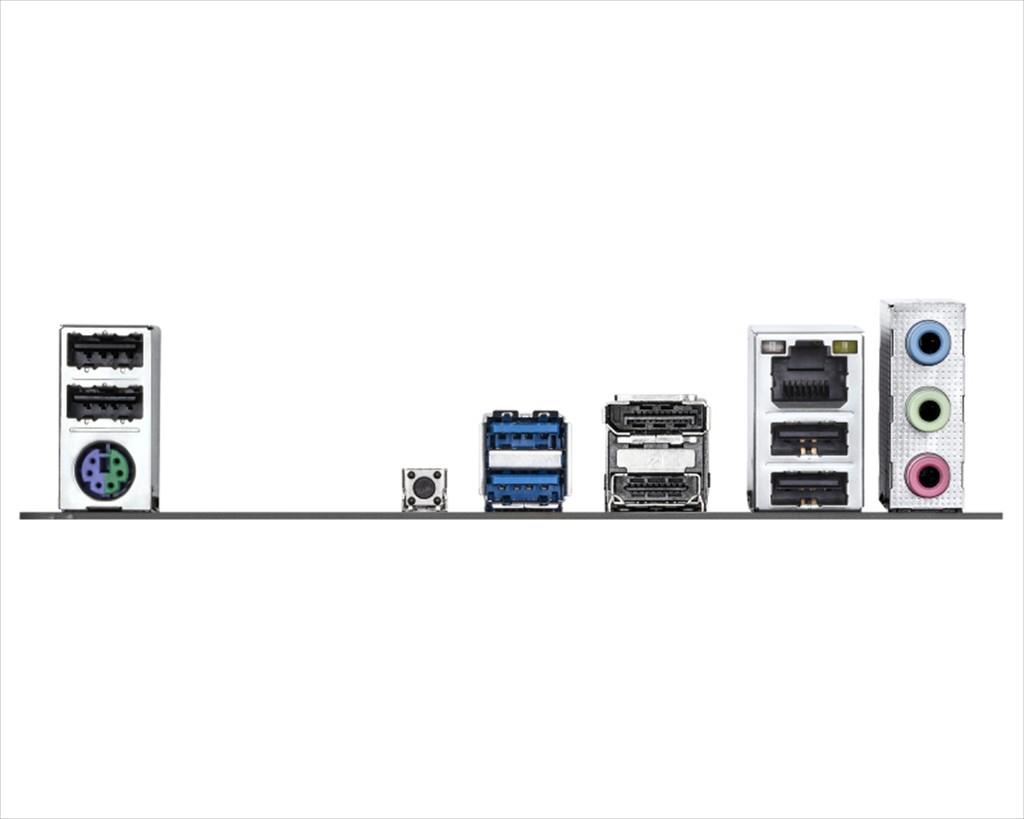

- Rear I/O includes USB 3.2 Gen 1, USB 2.0, RJ-45 LAN, PS/2 and audio connections
- Internal headers include USB, front panel audio, TPM, RGB LED and fan connectors
- Includes three RGB LED pin headers for compatible lighting accessories
- Passive chipset cooling helps maintain quiet system operation
- PC health monitoring supports fan, temperature, voltage and water-cooling monitoring
- Supports Windows 10 x64 and Windows 11 x64 operating systems
Specification
- Model name: Gigabyte B840M H AM5 mATX Motherboard
- Product type: Motherboard
- Component for: PC
- Form factor: Micro ATX
- Motherboard chipset: AMD B840
- Motherboard chipset family: AMD
- Product colour: Dark brown
- Cooling type: Passive
- Power source type: ATX
- Processor manufacturer: AMD
- Processor socket: AM5
- Supported processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported memory type: DDR5
- Memory slots: 2x DIMM
- Memory channels: Dual-channel
- Maximum internal memory: 128 GB
- Maximum memory per slot: 64 GB
- Supported memory clock speeds: 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
- Maximum supported memory clock speed: 7200 MHz
- Memory type support: Unbuffered
- ECC compatibility: Non-ECC
- Supported storage drive types: HDD & SSD
- Supported storage interfaces: M.2, PCI Express 4.0, SATA III
- Number of storage drives supported: 5
- Number of HDDs supported: 4
- SATA III connectors: 4
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
- Bluetooth: No
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Maximum resolution: 4096 x 2160 pixels
- DirectX version: 12.0
- HDCP: Yes
- HDCP version: 2.3
- Parallel processing technology support: Not supported
- Internal USB 2.0 connectors: 2
- Internal USB 3.2 Gen 1 connectors: 1
- Internal USB 3.2 Gen 2 connectors: 0
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 2
- ATX power connector: 24-pin
- EPS power connector: 1x 8-pin
- 12V power connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3
- Rear PS/2 ports: 1
- Rear USB 2.0 ports: 4
- Rear USB 3.2 Gen 1 Type-A ports: 2
- Rear USB 3.2 Gen 1 Type-C ports: 0
- Rear USB 3.2 Gen 2 Type-A ports: 0
- Rear USB 3.2 Gen 2 Type-C ports: 0
- Rear Ethernet LAN ports: 1x RJ-45
- Rear HDMI ports: 1
- HDMI version: 2.1
- Rear DisplayPorts: 1
- DisplayPort version: 1.4
- Rear VGA ports: 0
- Rear DVI-D ports: 0
- Line-in: Yes
- Headphone outputs: 1
- Microphone input: Yes
- PC health monitoring: Fan, temperature, voltage, water cooling
- Supported operating systems: Windows 10 x64, Windows 11 x64
- Width: 230 mm
- Depth: 225 mm
- Height: 35 mm
