Опис

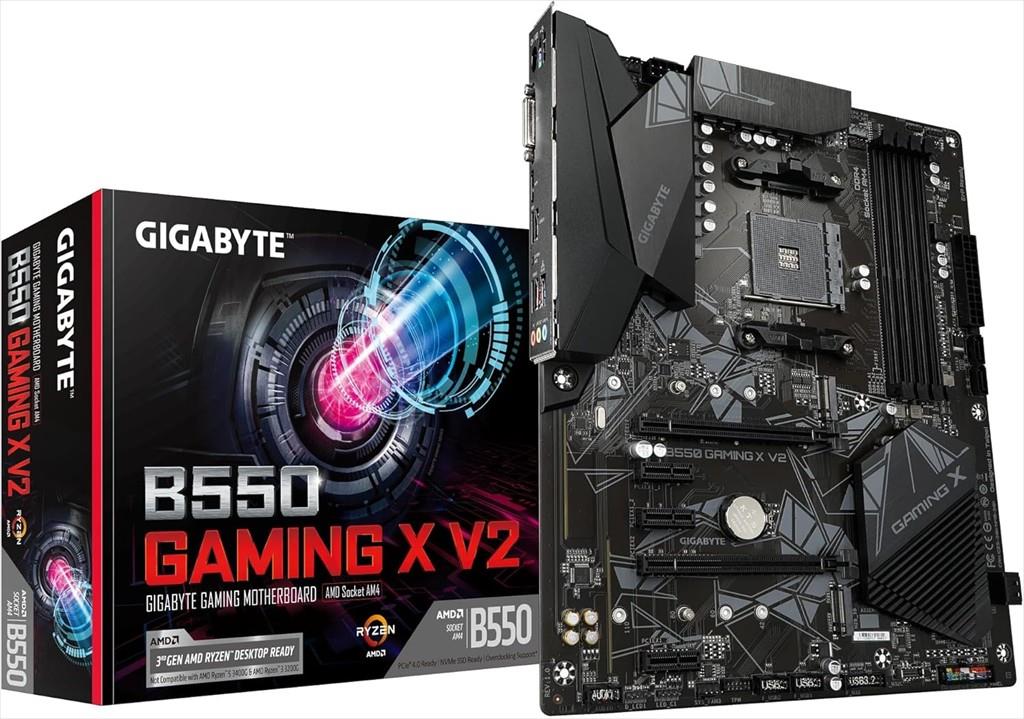

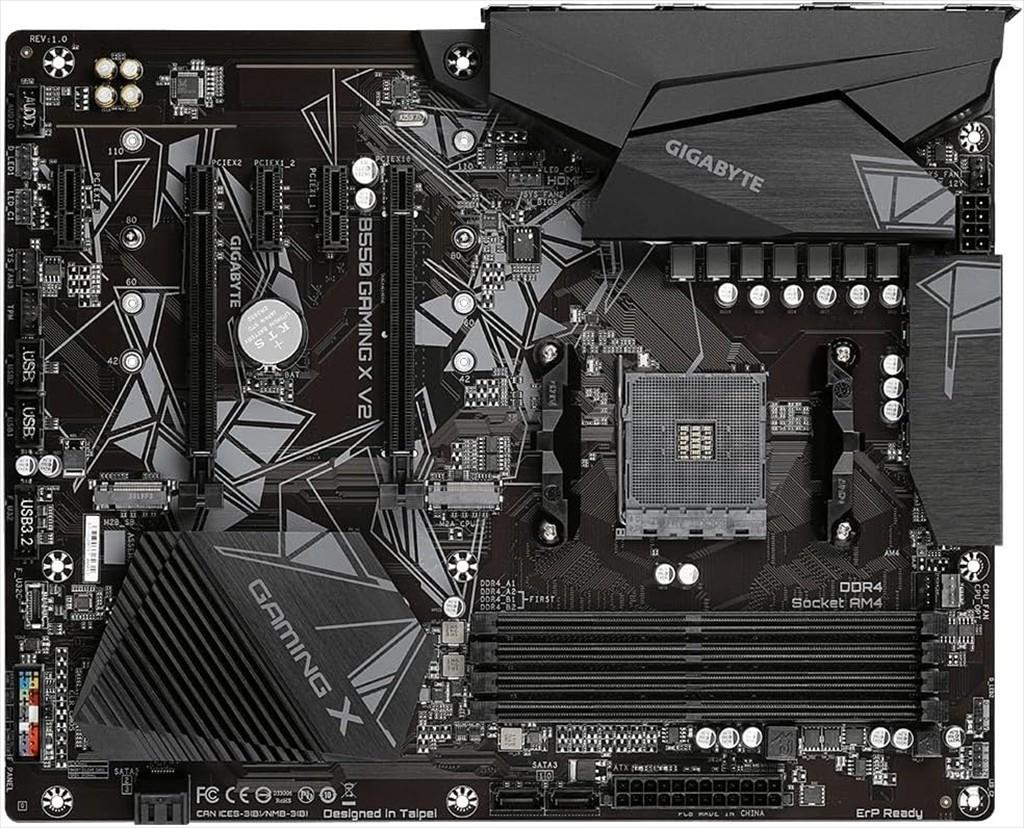

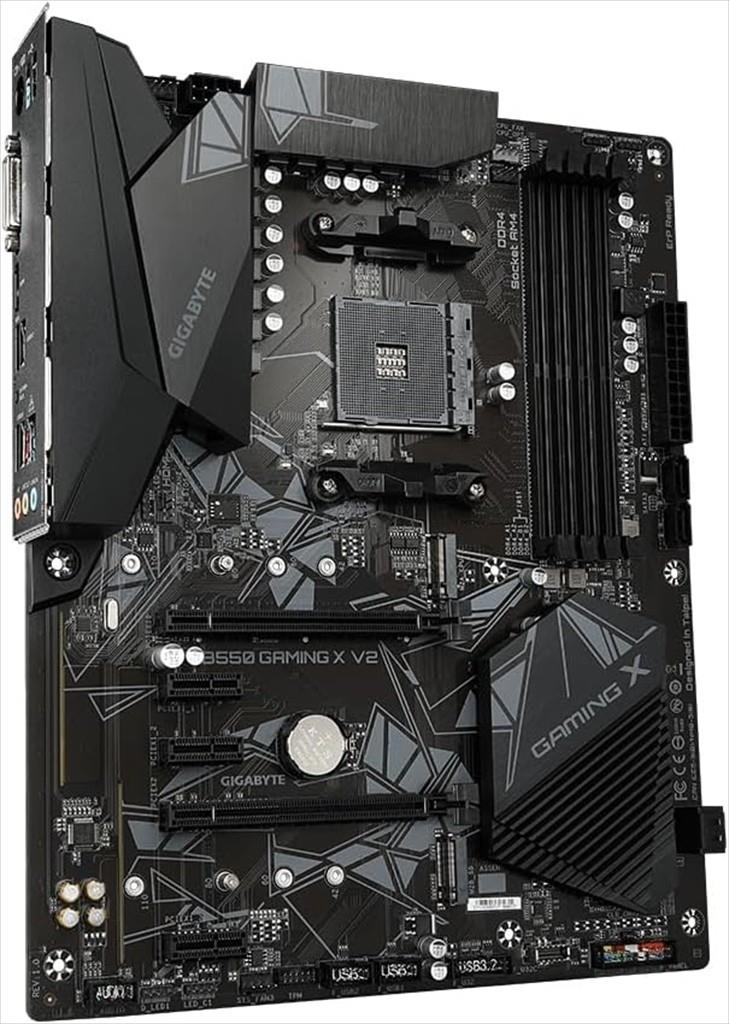

GIGABYTE B550 Gaming X AMD AM4 ATX Motherboard
Platform and Design
- Chipset: AMD B550
- CPU socket: AMD AM4
- Form factor: ATX
- Intended use: PC systems
- Power connector: ATX12V, 24-pin main connector plus 8-pin CPU connector
- BIOS: 128Mbit AMI UEFI BIOS
Memory Support
- Memory type: DDR4 SDRAM
- Memory sockets: 4
- Maximum memory capacity: 128GB
- Supported memory speeds: DDR4-3200, 2933, 2667, 2400, and 2133MHz
- Memory channels: Dual-channel
- Maximum storage ranks: 8
- ECC support: Yes
- Memory controller: Integrated into the CPU
- Maximum data density: 8192Mbit
Expansion Slots
- PCIe x16 slots: 2, comprising 1× PCIe x16 and 1× PCIe x4
- PCIe x1 slots: 2
- Multi-GPU support: AMD CrossFireX
Storage
- SATA ports: 4
- M.2 slots: 2
- M.2 key type: M key
- M.2 slot 1: PCIe Gen4.0
- M.2 slot 2: PCIe Gen3.0
- SATA controller: AMD B550
- Supported RAID levels: RAID 0, 1, and 10

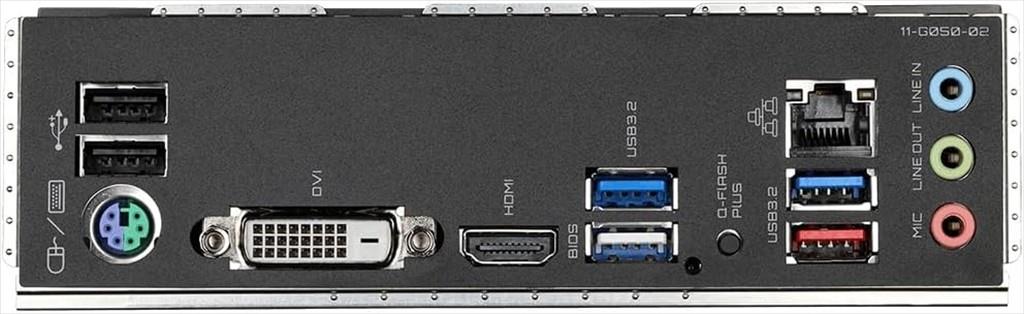

External Connections
- PS/2 port: 1 mouse/keyboard combo port
- USB-A 3.2 Gen 2: 1 port, up to 10Gb/s
- USB-C 3.2 Gen 1: 1 port, up to 5Gb/s
- USB-A 3.2 Gen 1: 3 ports, up to 5Gb/s
- USB-A 2.0: 2 ports
- Video outputs: 1× HDMI and 1× DisplayPort
- Audio connections: Microphone input, line-out, and optical S/PDIF output
- Network connection: 1× RJ-45
Audio and Networking
- Audio codec: Realtek Audio CODEC
- LAN controller: Realtek 2.5GbE LAN
- USB controller: AMD B550
