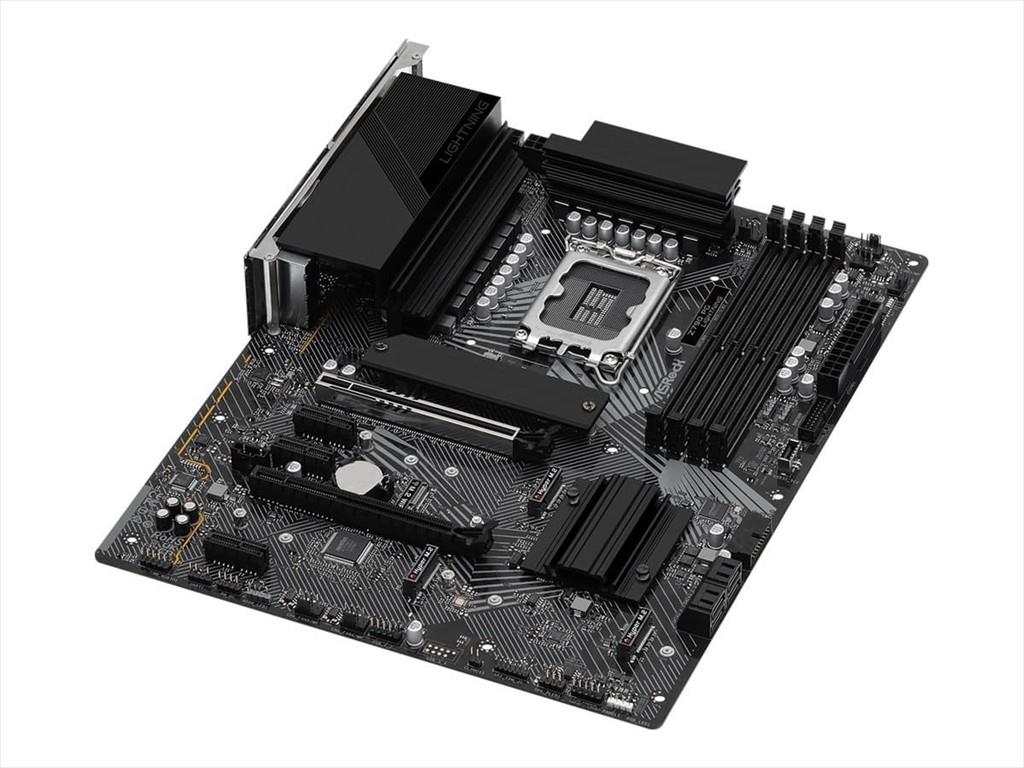

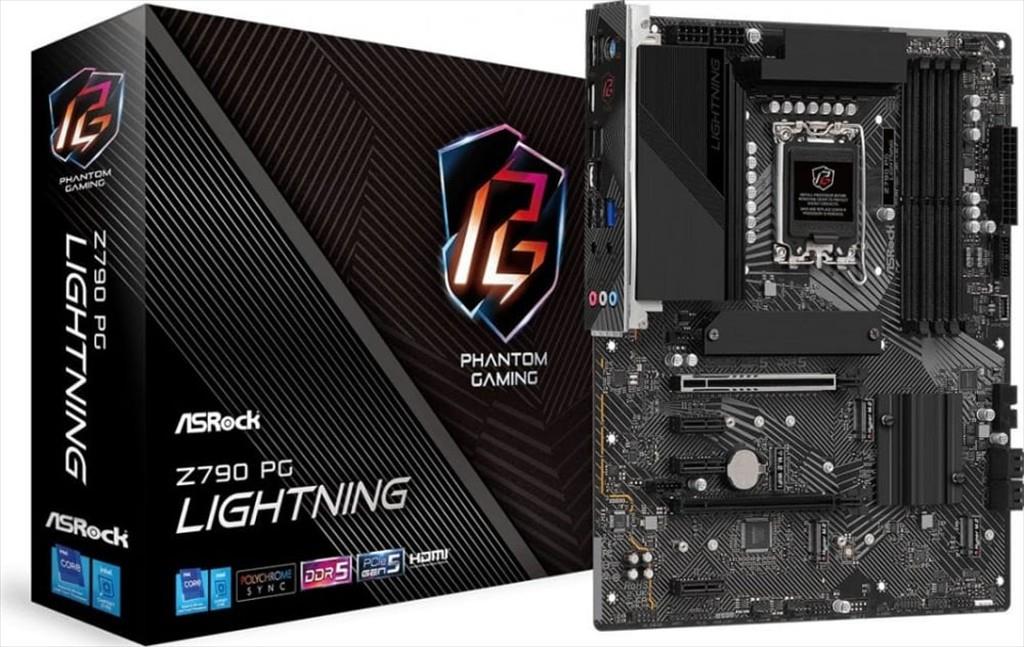

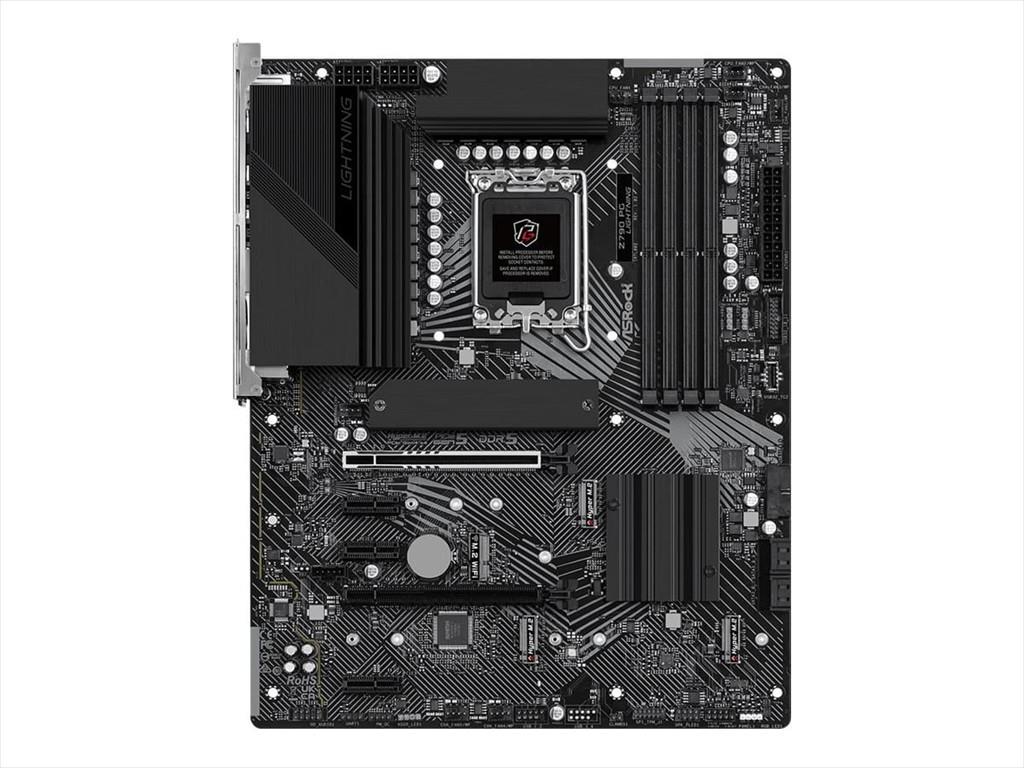

MB 1700 Z790 PHANTOM GAMING LIGHTNING ASROCK, 4xDDR5 7200MHz(OC), PCIex16 5.0, PCIex4 4.0, 3xPCIex 3.0 x1, 4xM.2, 4xSATAIII, HDMI, eDP, 2.5G LAN, 90-MXBKA0-A0UAYZ
MB 1700 Z790 PHANTOM GAMING LIGHTNING ASROCK, 4xDDR5 7200MHz(OC), PCIex16 5.0, PCIex4 4.0, 3xPCIex 3.0 x1, 4xM.2, 4xSATAIII, HDMI, eDP, 2.5G LAN, 90-MXBKA0-A0UAYZ - Image 2
MB 1700 Z790 PHANTOM GAMING LIGHTNING ASROCK, 4xDDR5 7200MHz(OC), PCIex16 5.0, PCIex4 4.0, 3xPCIex 3.0 x1, 4xM.2, 4xSATAIII, HDMI, eDP, 2.5G LAN, 90-MXBKA0-A0UAYZ - Image 3
Матични плочи ASROCK SKU 18673

Mb 1700 z790 phantom gaming lightning asrock, 4xddr5 7200mhz(oc), pciex16 5.0, pciex4 4.0, 3xpciex 3.0 x1, 4xm.2, 4xsataiii, hdmi, edp, 2.5g lan, 90-mxbka0-a0uayz

Бесплатна достава

10.390 ден

Цена за Pro членови 9.810 ден Заштеда580 ден. Активирај PRO

Остави имејл и ќе те известиме штом производот стане достапен...

Бесплатна достава за скоро сите производи Безбедна нарачка плаќање со картичка Поддршка [email protected]

SKU 18673
Категории
Матични плочи
Брендови
ASROCK
Тагови
ASROCK neksio

Опис

Model Name: Asrock Z790 PG Lightning Intel Z790 LGA 1700 ATX

Intel Z790 ATX motherboard · LGA 1700 socket · DDR5 memory support
PCIe 5.0 x16 · 2.5Gb Ethernet · USB 3.2 Gen 2×2 Type-C · RAID support

Features

  • Intel Z790 chipset motherboard designed for Intel LGA 1700 processors
  • Supports Intel Core i5, Core i7 and Core i9 processor series
  • ATX form factor provides a full-size platform for gaming and performance desktop builds
  • DDR5 memory support with dual-channel architecture for high-speed system performance
  • Four DIMM slots support up to 128GB of unbuffered, non-ECC memory
  • PCIe 5.0 x16 slot offers next-generation graphics card connectivity
  • Additional PCIe 4.0 x16 and PCIe 3.0 x1 slots provide expansion options for add-in cards
  • M.2 and SATA III storage support enables use with both SSDs and hard drives
  • RAID 0, 1, 5 and 10 support allows flexible storage configurations
  • 2.5 Gigabit Ethernet powered by Dragon RTL8125BG LAN controller for high-speed wired networking
  • Realtek ALC897 audio codec delivers 7.1-channel audio output
  • USB 3.2 Gen 2×2 Type-C connectivity provides high-speed external device support
  • Includes HDMI output for supported processors with integrated graphics
  • UEFI AMI BIOS offers a modern firmware interface for system setup and tuning
  • RGB LED pin header, TPM connector and Thunderbolt header add support for system customisation and expansion

Specification

  • Model name: Asrock Z790 PG Lightning Intel Z790 LGA 1700 ATX
  • Motherboard chipset: Intel Z790
  • Motherboard chipset family: Intel
  • Motherboard form factor: ATX
  • Depth: 244 mm
  • BIOS type: UEFI AMI
  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel Core i5, Intel Core i7, Intel Core i9
  • Maximum number of SMP processors: 1
  • Supported memory types: DDR5-SDRAM
  • Memory slots type: DIMM
  • Number of memory slots: 4
  • Memory channels: Dual-channel
  • Maximum internal memory: 128GB
  • ECC compatibility: Non-ECC
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of M.2 slots: 1
  • Number of SATA III connectors: 4
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • PCI Express x16 Gen 5.x slots: 1
  • PCI Express x16 Gen 4.x slots: 1
  • PCI Express x1 Gen 3.x slots: 3
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Dragon RTL8125BG
  • Ethernet LAN RJ-45 ports: 1
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Front panel audio connector: Yes
  • Headphone outputs: 1
  • Microphone in: Yes
  • HDMI ports quantity: 1
  • PS/2 ports quantity: 1
  • USB 2.0 connectors: 1
  • USB 2.0 ports quantity: 1
  • USB 3.2 Gen 1 connectors: 2
  • USB 3.2 Gen 1 Type-A ports quantity: 5
  • USB 3.2 Gen 2 connectors: 1
  • USB 3.2 Gen 2 Type-A ports quantity: 1
  • USB 3.2 Gen 2×2 Type-C ports quantity: 1
  • ATX power connector 24-pin: Yes
  • CPU fan connector: Yes
  • RGB LED pin header: Yes
  • Thunderbolt headers: 1
  • TPM connector: Yes
