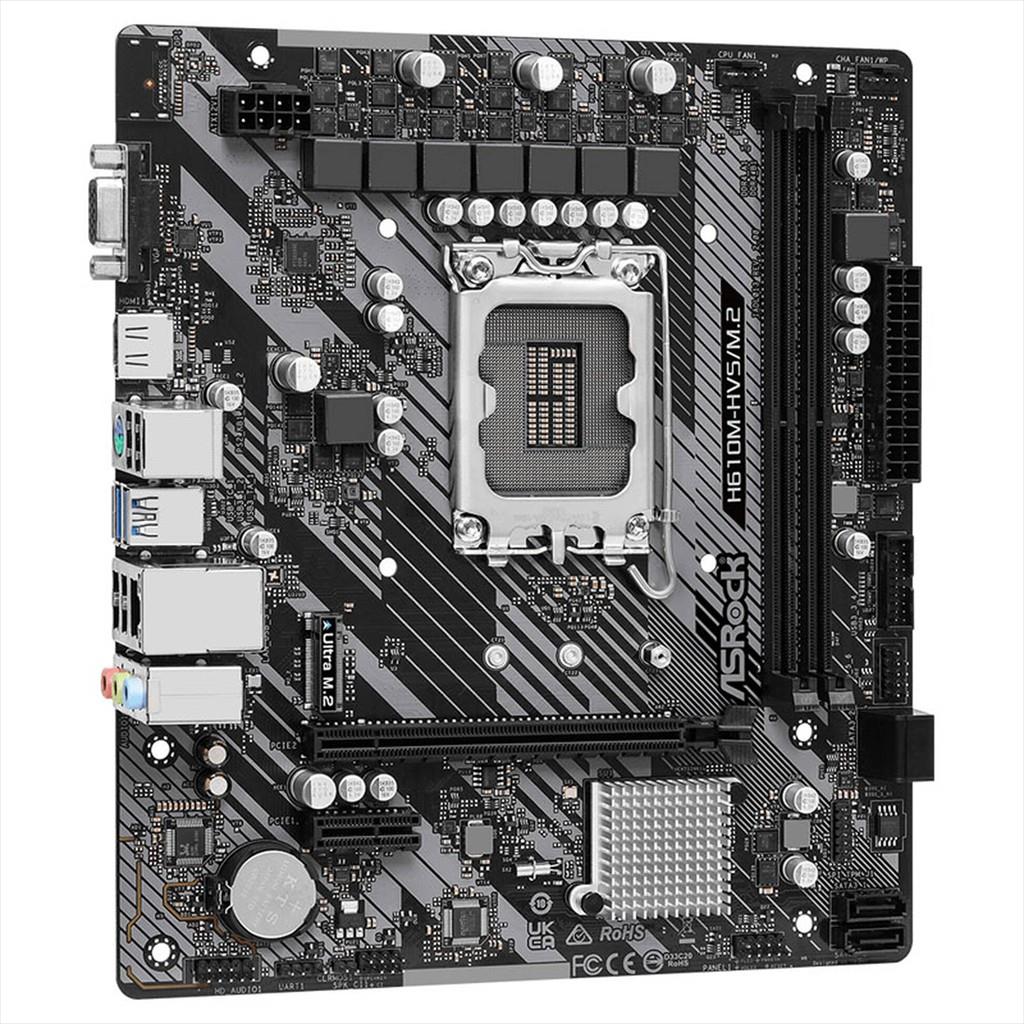

Model Name: ASRock H610M-HVS/M.2 R2.0
Features
- Micro-ATX Intel H610 motherboard for LGA 1700 processors
- Supports up to 64 GB DDR4 memory across 2 DIMM slots
- PCIe 4.0 x16 slot for modern graphics cards and expansion
- 1 × M.2 PCIe 3.0 x4 slot plus 4 × SATA 6G ports for flexible storage options
- Integrated HDMI and VGA (D-Sub) display outputs
- Gigabit LAN (1 × 1 Gbit/s) for reliable wired networking
- 2 × USB 3.0 (front) and 2 × USB 3.0 (rear) Type-A ports for high-speed peripherals
- 2 × 4-pin fan headers for system cooling
Specification
- Form factor: Micro-ATX
- Chipset: Intel H610
- CPU socket: LGA 1700
- Memory type: DDR4
- Memory slots: 2 × DIMM
- Max memory: 64 GB
- LAN: 1 × 1 Gbit/s Ethernet
- Wi‑Fi / Bluetooth: No
- Internal USB: up to 2 × USB 3.0 ports via headers
- External USB: 2 × USB 3.0 Type‑A (rear)

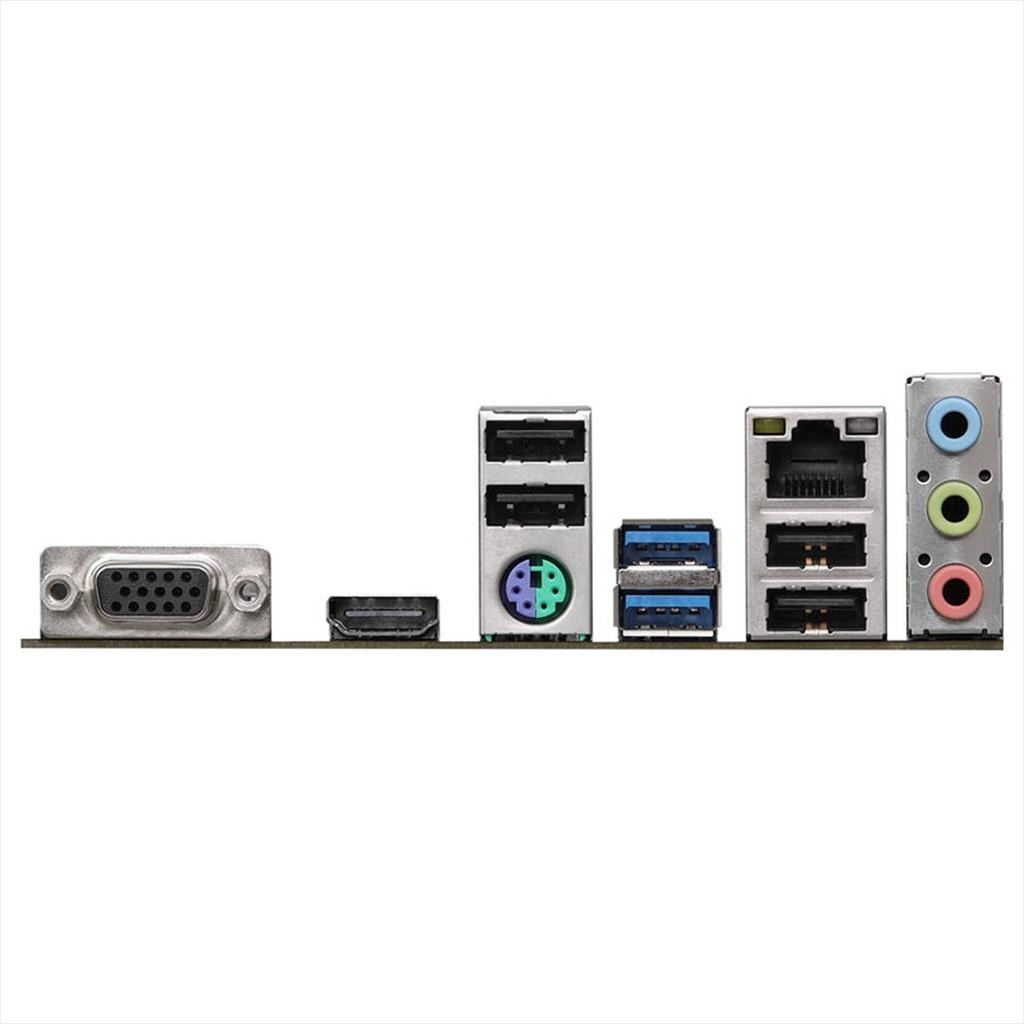

- Display outputs: 1 × HDMI, 1 × VGA (D‑Sub)
- Storage: 1 × M.2 PCIe 3.0 x4, 4 × SATA 6G
- Expansion slots:
- • 1 × PCIe 4.0 x16 (mechanical)
- • 1 × PCIe 3.0 x1 (mechanical)
- Fan headers: 2 × 4‑pin fan connectors
