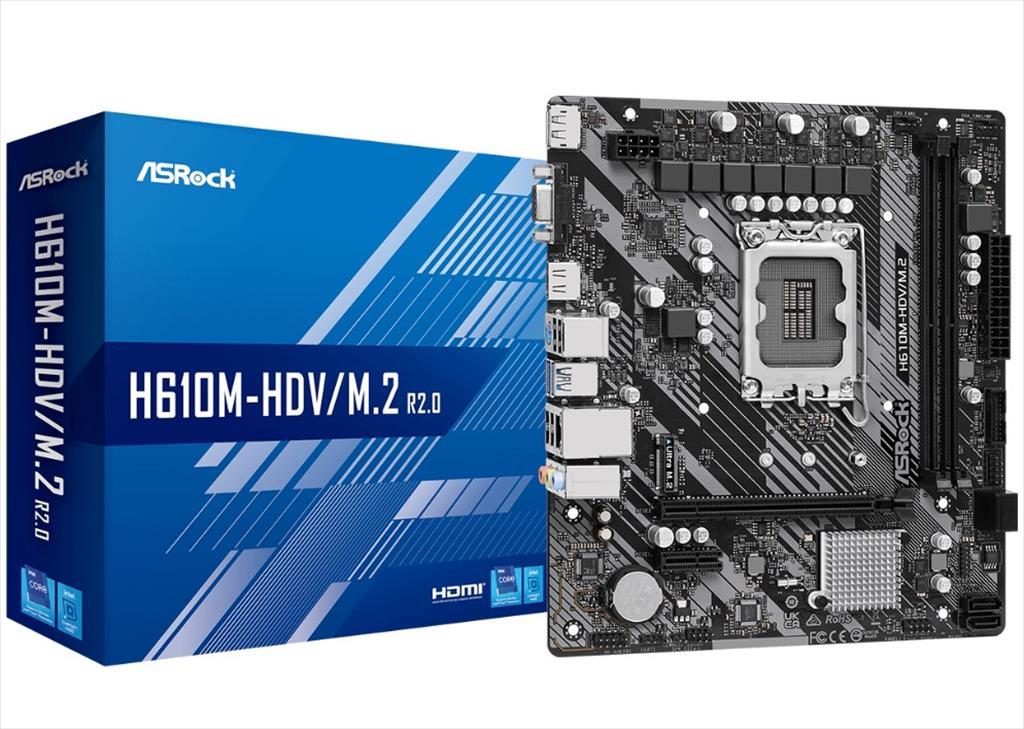

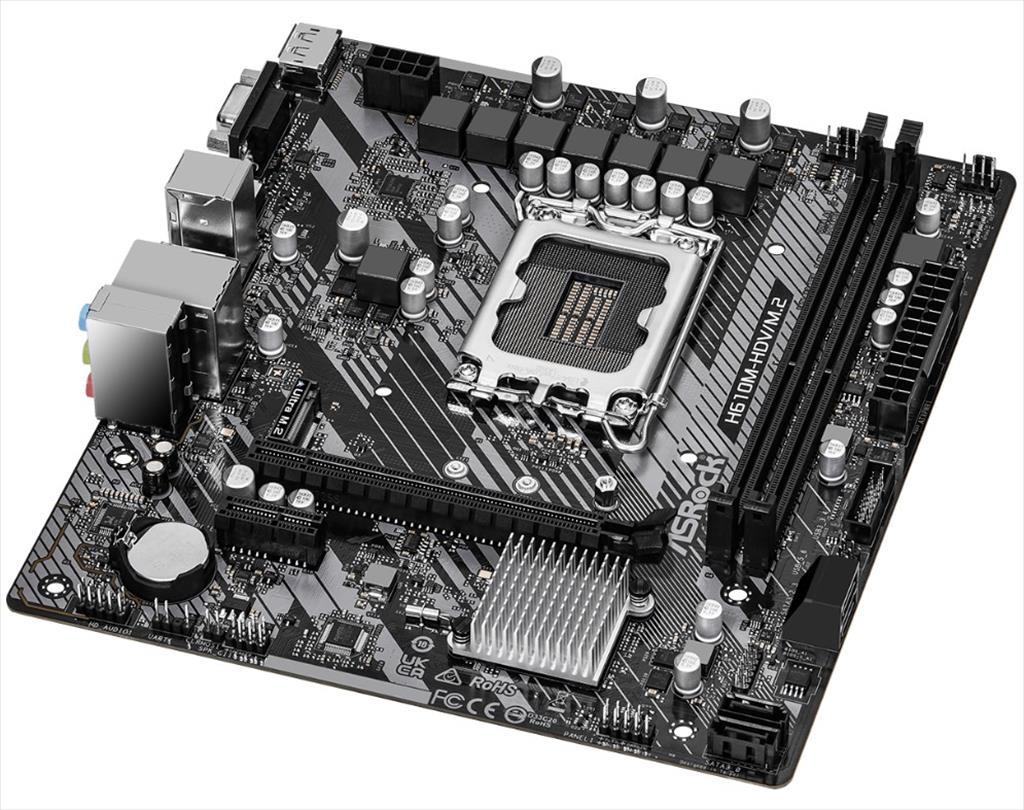

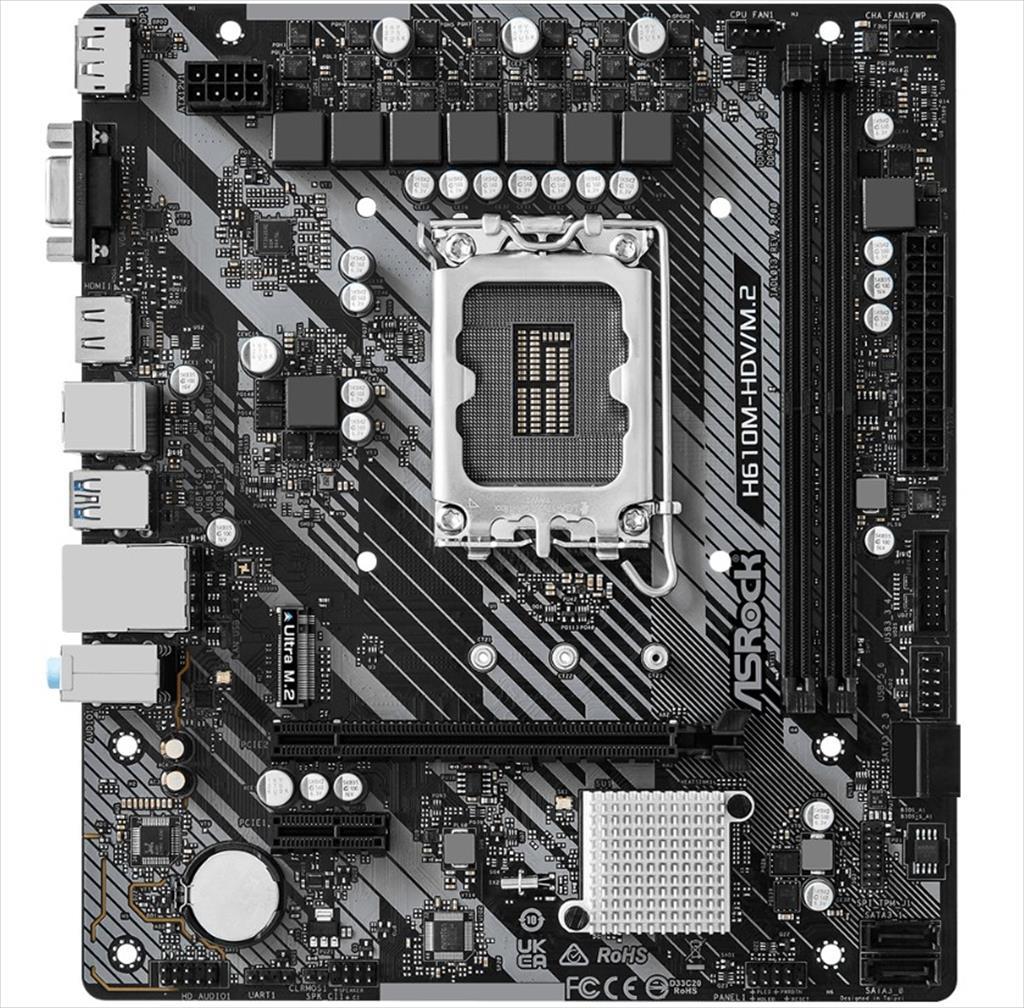

MB 1700 H610M-HDV/M.2 R2.0 ASROCK, 2xDDR4 3200MHz, M.2, VGA,HDMI, DP PCIex16 4.0, 1xPCIex1 3.0, 4xSATAIII, 2xUSB3.2Gen1, Gigabit LAN

Model Name: ASROCK MB 1700 H610M-HDV

Specification :

• CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Chipset: Intel® H610
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 non-ECC, un-buffered memory up to 3200)
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
• BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Intel® Xe Graphics Architecture (Gen 12)
  • Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
  • Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
  • Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
  • Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  • Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
• Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Supports Surge Protection
• LAN:
  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
• Slots:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
  • 1 x PCIe 3.0 x1 Slot (PCIE1)
• Storage:
  • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors
• Connectors:
  • 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin)
  • 2 x Chassis/Water Pump Fan Connectors (4-pin)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

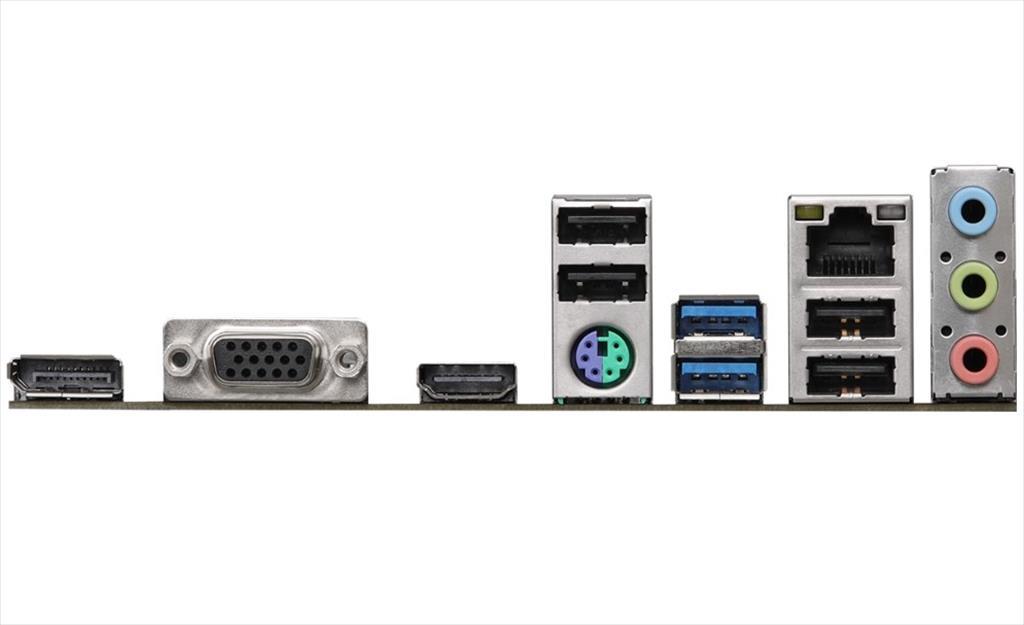

• Rear Panel I/O:
  • 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port
  • 1 x DisplayPort 1.4, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC, Full HD UEFI
• Form Factor: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• OS Support: Microsoft Windows® 10/11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
