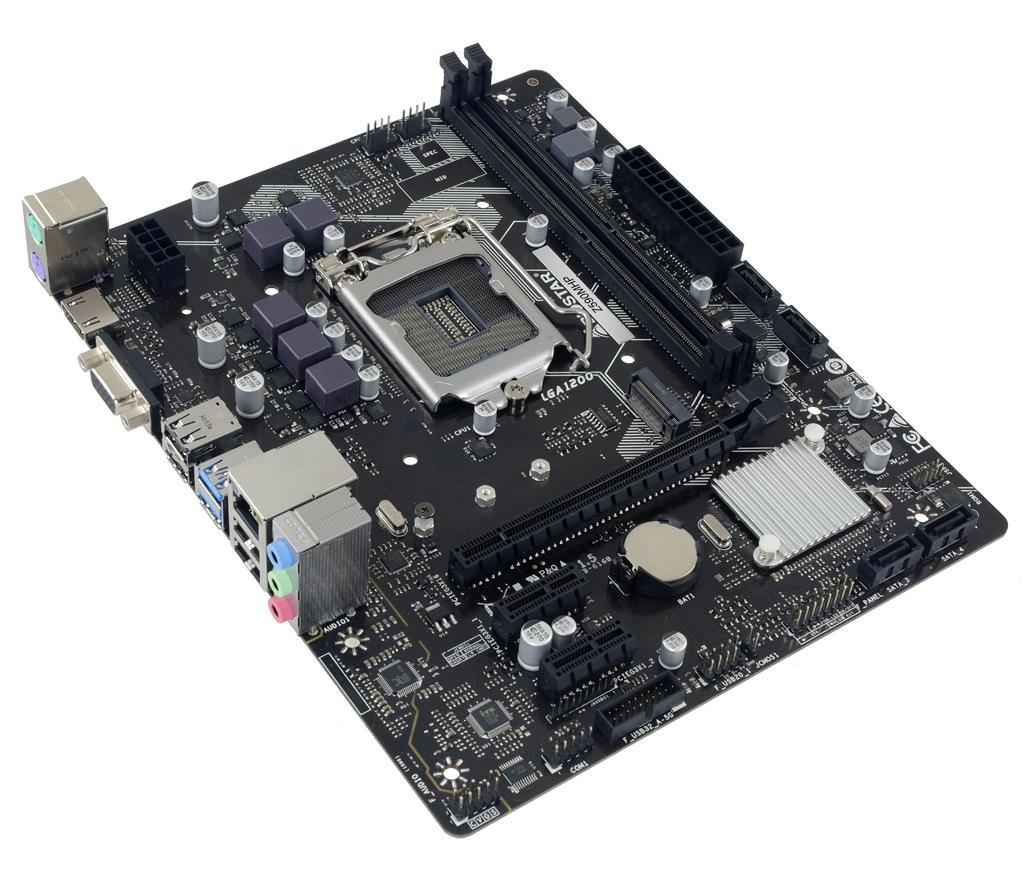

MB 1200 Z590MHP BIOSTAR 2xDDR4 4000MHz(O.C.), HDMI, VGA, PCIex16, 2xPCIex1,4xSATA,1xM.2, 2xUSB 3.2, 4xUSB 2.0, COM port

Model Name: BIOSTAR Z590MHP

Specification :

• Chipset: Intel Z590
• CPU SUPPORT: Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
• MEMORY:
  • Supports Dual Channel DDR4: 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
  • 2 x DDR4 DIMM Memory Slot: Max. Supports up to 64 GB Memory
  • Each DIMM supports non-ECC: 4/8/16/32 GB DDR4 module
• INTEGRATED VIDEO:
  • By CPU model
  • Supports DX12
  • Supports HDCP
• STORAGE:
  • 4 x SATA III Connector (6Gb/s)
  • Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
  • 1 x M.2 (M Key) Socket:
    • Supports M.2 Type: 2242/ 2260/ 2280 SSD module
    • Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD
• LAN: Intel I219V, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• AUDIO CODEC: Realtek ALC897
• USB:
  • 4 x USB 3.2 (Gen1) ports: (2 on rear I/Os and 2 via internal headers)
  • 6 x USB 2.0 ports: (4 on rear I/Os and 2 via internal headers)
• EXPANSION SLOT:
  • 2 x PCIe 3.0 x1 Slot
  • 1 x PCle 3.0/ 4.0 x16 Slot (x16 mode) *The PCle 4.0 only depends on Rocket Lake CPUs.
  • 7.1 Channels, High Definition Audio

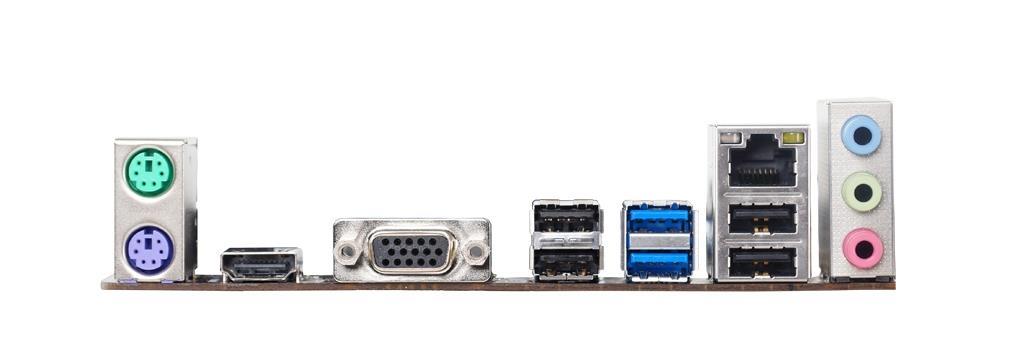

• REAR I/O:
  • 4 x SATA III Connector (6Gb/s)
  • 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
  • 1 x 8-Pin Power Connector
  • 1 x 24-Pin Power Connector
  • 1 x CPU Fan Connector
  • 1 x System Fan Connector
  • 1 x Front Panel Header
  • 1 x Front Audio Header
  • 1 x Clear CMOS Header
  • 1 x COM Port Header
• H/W MONITORING:
  • CPU / System Temperature Monitoring
  • CPU / System Fan Monitoring
  • Smart / Manual CPU Fan Control
  • CPU/DDR Voltage Monitoring
