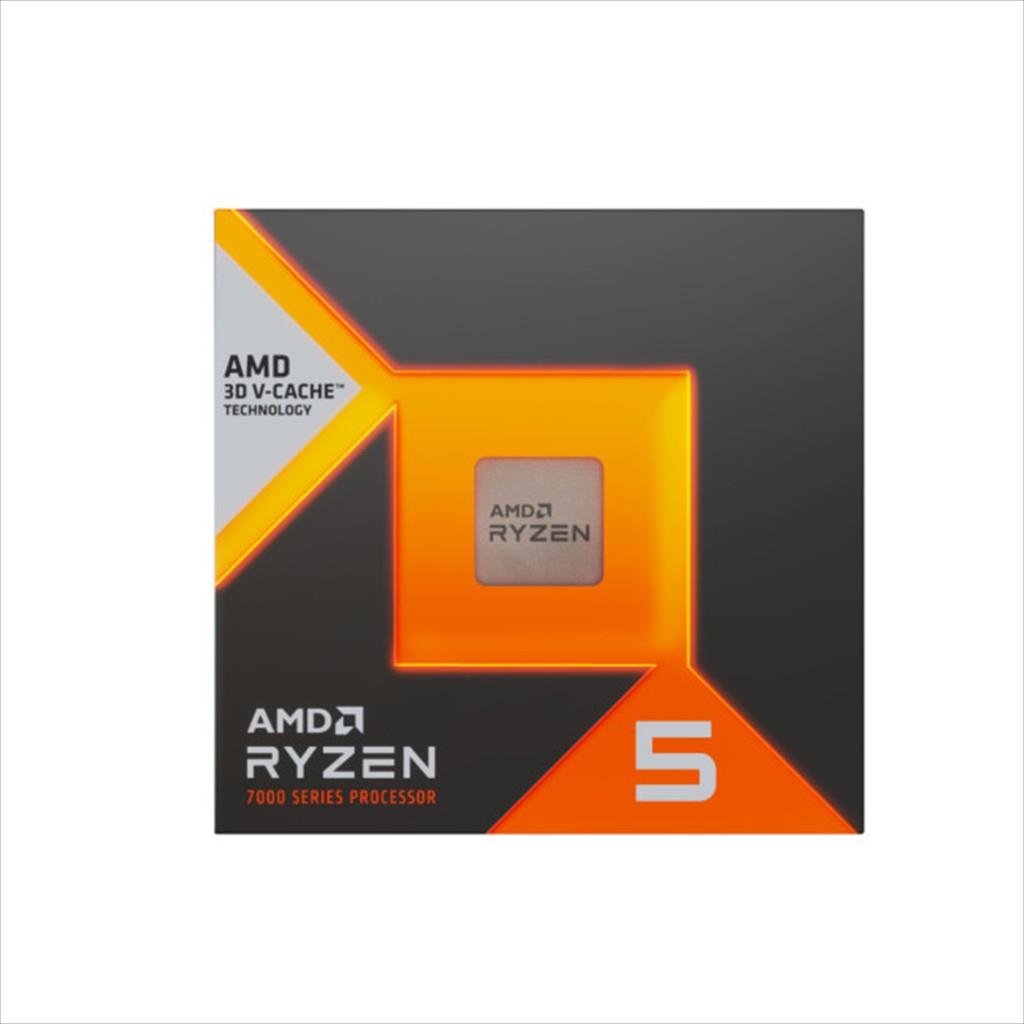

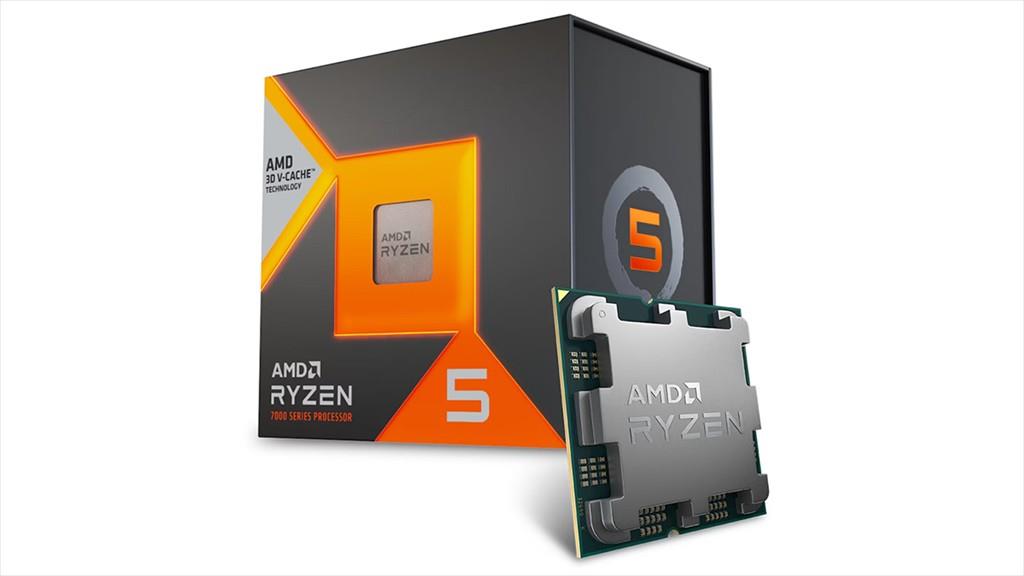

CPU AMD RYZEN 5 7500X3D, Six Core, 4.5GHz 102MB s.AM5 BOX w/o cooler, 100-100001904WOF

Model name: AMD RYZEN 5 7500X3D

Specification :

• # of CPU Cores: 6
• Multithreading (SMT): Yes
• # of Threads: 12
• Max. Boost Clock: Up to 4.5 GHz
• Base Clock: 4 GHz
• L1 Cache: 384 KB
• L2 Cache: 6 MB
• L3 Cache: 96 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• CPU Compute Die (CCD) Size: 71mm²
• I/O Die (IOD) Size: 122mm²
• Package Die Count: 2
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 89°C
• Native USB 3.2 Gen 2 (10Gbps): 4
• Native USB 3.2 Gen 1 (5Gbps): 0
• Native USB 2.0 (480Mbps): 1
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28, 24
• NVMe Support: Boot, RAID0, RAID1, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128 GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R: DDR5-5200
  • 2x2R: DDR5-5200
  • 4x1R: DDR5-3600
  • 4x2R: DDR5-3600
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
