Model Name: P12 Pro PST LN
Features
- Revised 120 mm fan blade design for an optimal balance of performance and smooth, quiet operation
- Optimised Fluid Dynamic Bearing with extended shaft for reduced vibration and quieter running
- Automated measuring and balancing process applies compound with pinpoint accuracy for ultra‑smooth rotation
- State‑of‑the‑art microcontroller reduces motor noise, compensates for load fluctuations and protects against inrush currents and reverse polarity
- Delivers higher airflow and static pressure at low speeds with only ~25 dB(A), ideal for quiet but powerful cooling
- Minimal blade‑to‑frame gap for maximum efficiency and improved static pressure
- 0 dB mode below 5% PWM – fan stops completely for silent idle operation

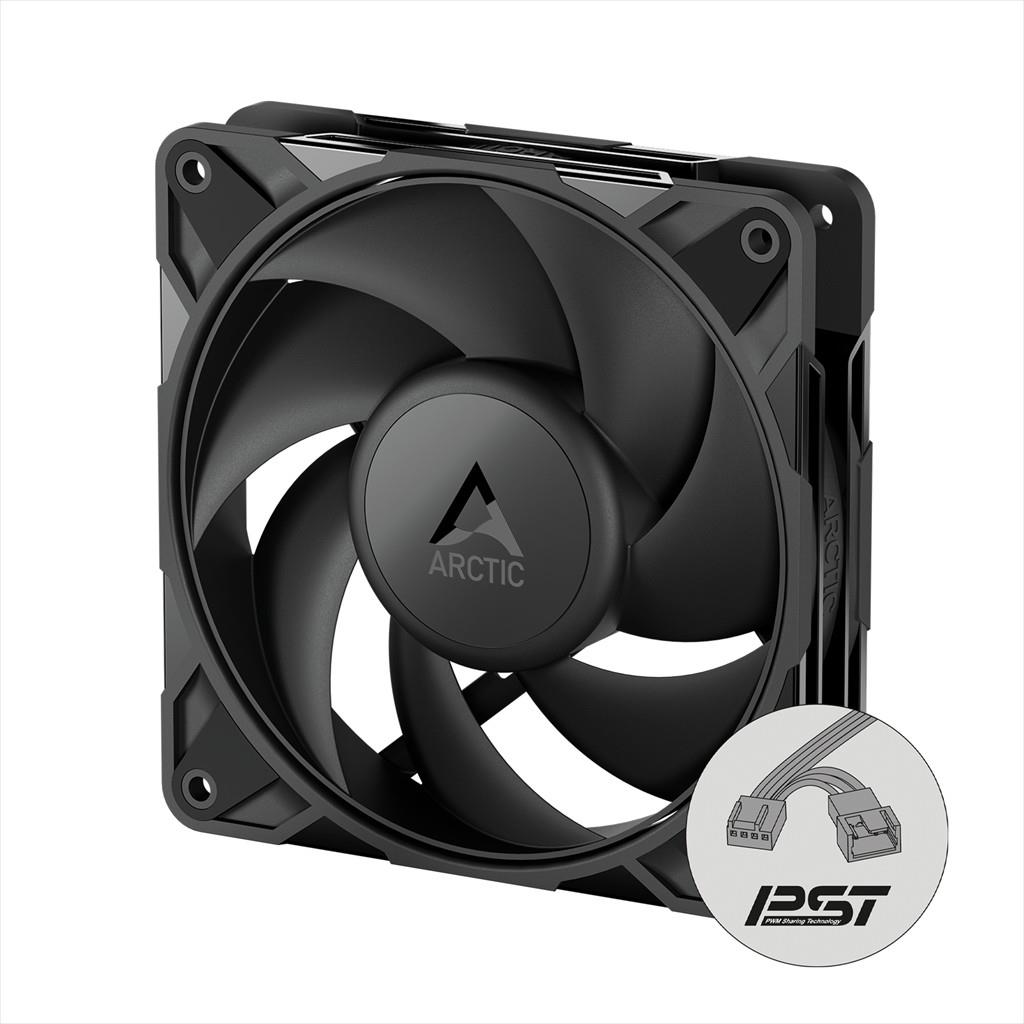

- PST (PWM Sharing Technology) with extra 4‑pin plug lets you daisy‑chain multiple fans to a single PWM header
- 400 mm cable and 4‑pin PWM connector for flexible placement and precise speed control
Specification
- Fan size: 120 × 120 × 25 mm
- Weight: 186 g
- Fan speed: 450–2000 rpm
- 0 dB mode: Fan off below 5% PWM
- Airflow: 49 CFM (≈ 83 m³/h)
- Static pressure: 3.5 mm H₂O
- Noise level: ~25 dB(A) at rated performance
- Bearing type: Fluid Dynamic Bearing (FDB)
- Voltage: 12 V DC
- Current: 0.11 A
- Start‑up voltage: 3.3 V DC
- Connectors: 1 × 4‑pin PWM fan connector, 1 × 4‑pin PWM plug (PST daisy‑chain)
- Cable length: 400 mm
- Operating ambient temperature: 0–40 °C
