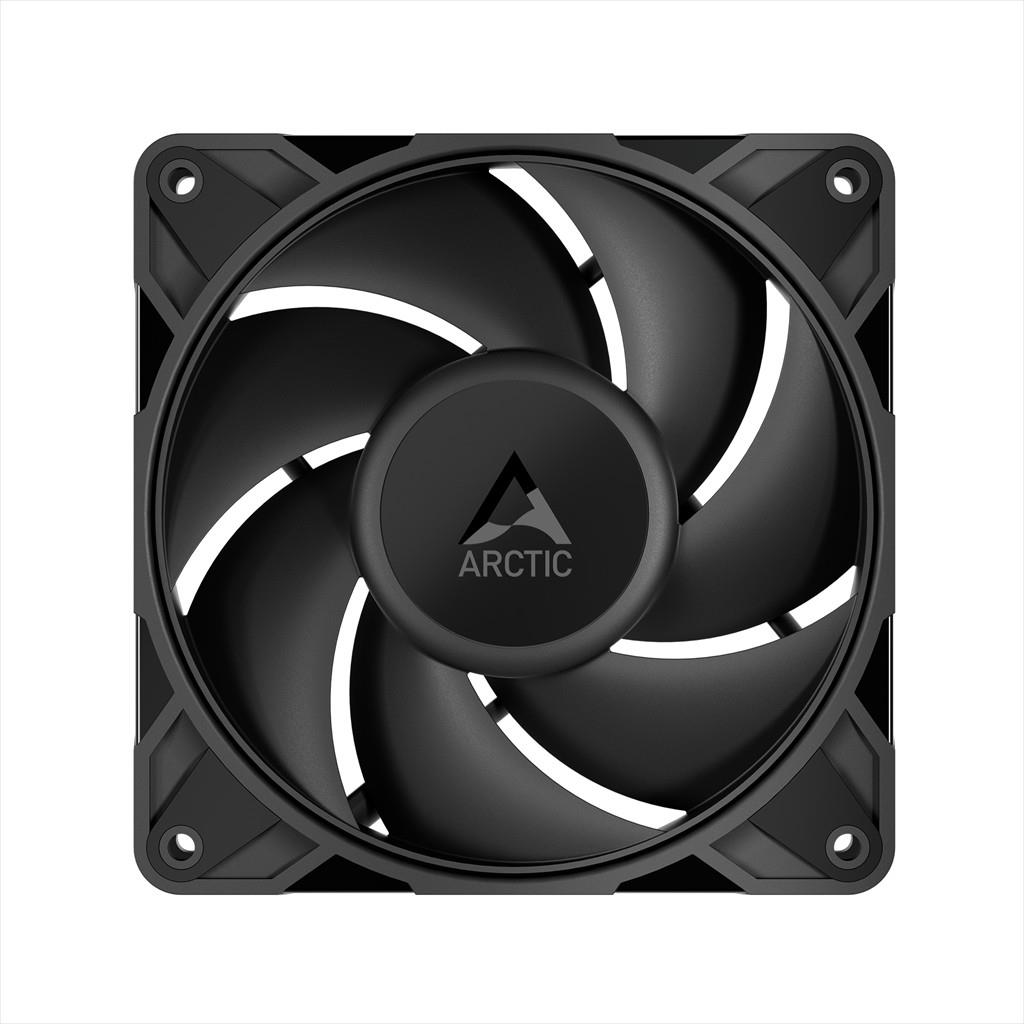

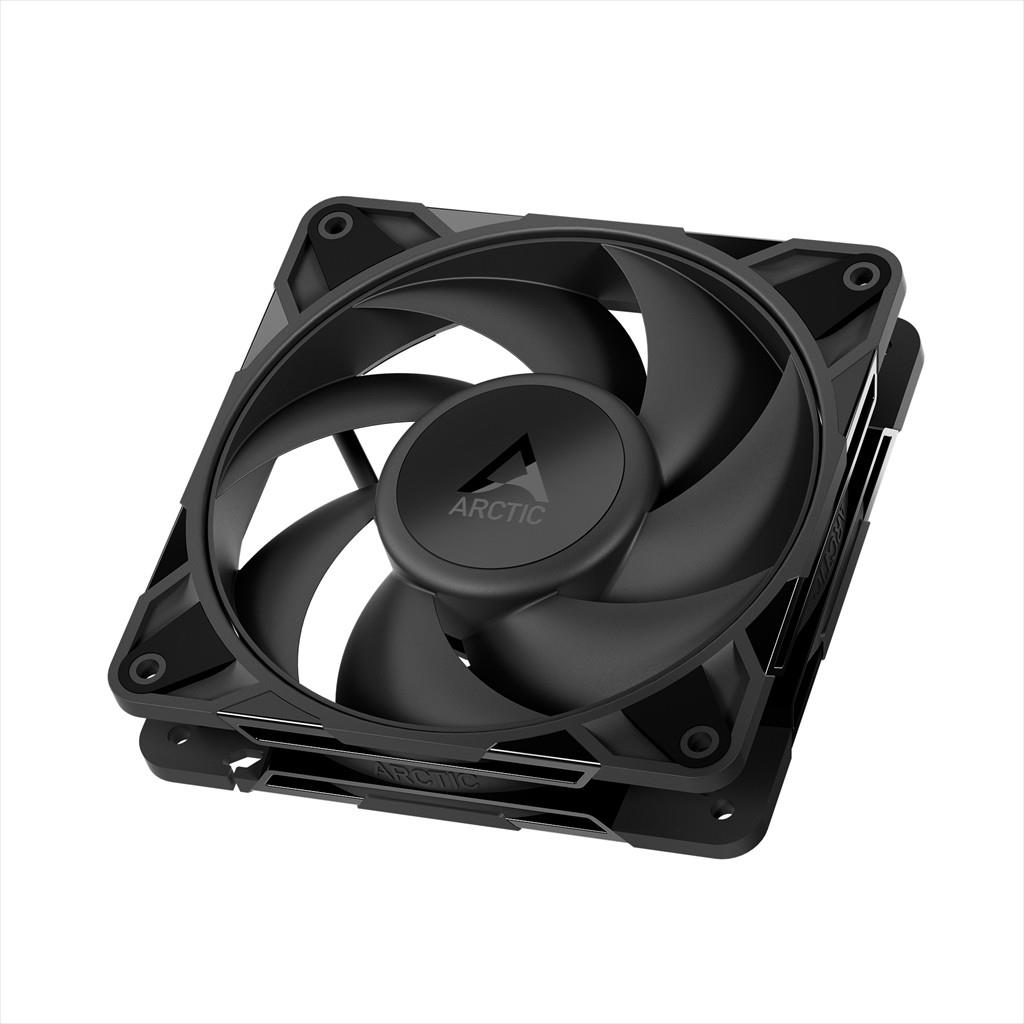

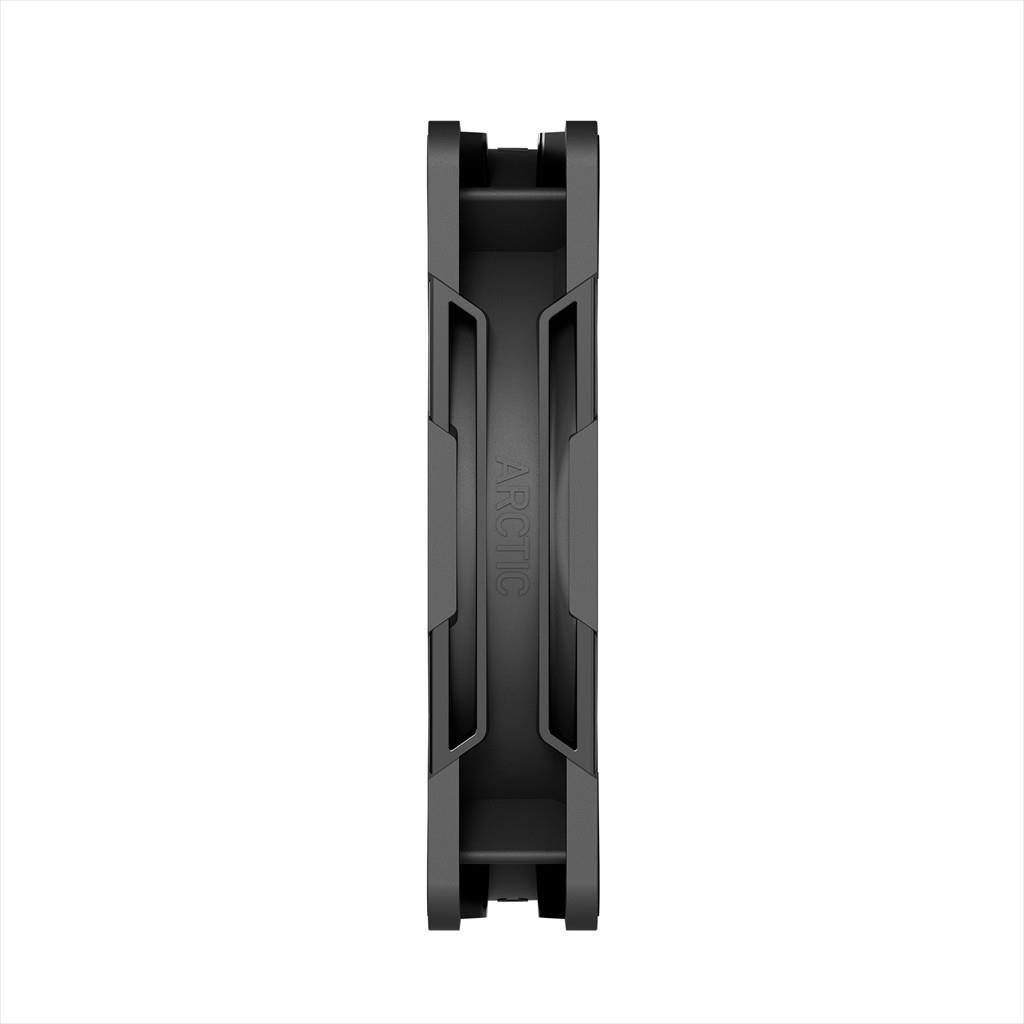

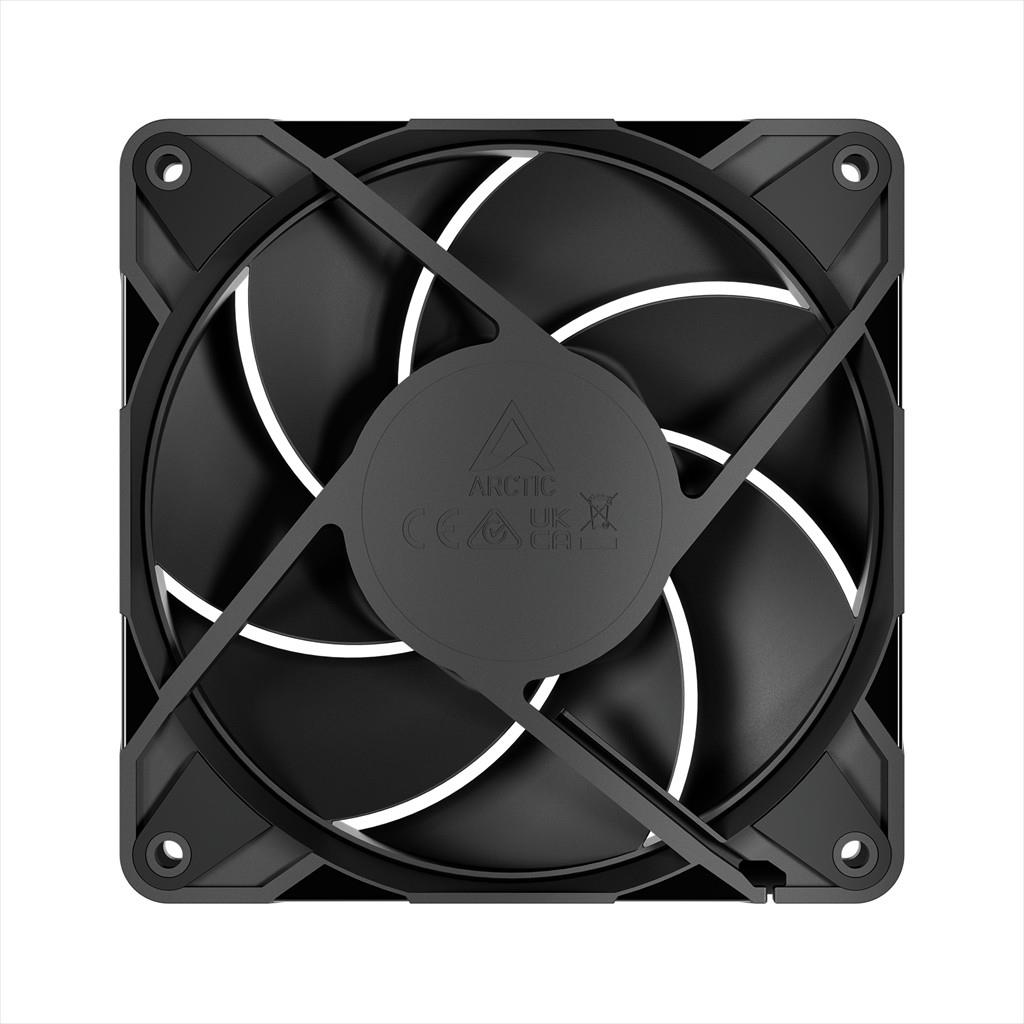

Model Name: P12 Pro LN Fan
Features
- Premium 120 mm fan tuned for a balanced ratio of performance and quiet operation
- Speed range of 450–2000 rpm optimised for silent PC builds and enthusiasts
- Optimised Fluid Dynamic Bearing (FDB) and shaft design for long life and smooth rotation
- Automated measuring and balancing process applies compound with pinpoint accuracy for ultra‑low vibration
- State‑of‑the‑art microcontroller reduces motor noise, compensates load fluctuations and protects against inrush currents and reverse polarity
- Delivers higher airflow and static pressure at low speed with just 25 dB(A), ideal for quiet but powerful cooling
- Minimal gap design between blades and frame for improved static pressure and airflow efficiency
- 0 dB mode below 5% PWM for complete silence at very low load (fan stops)
- 4‑pin PWM connector and 400 mm cable for flexible installation and precise speed control
Specification
- Fan size: 120 × 120 × 25 mm
- Weight: 184 g
- Fan speed: 450–2000 rpm
- 0 dB mode: Fan off below 5% PWM
- Airflow: 48 CFM (≈ 83 m³/h)
- Static pressure: 3.5 mm H₂O
- Noise level: ~25 dB(A) at rated performance
- Bearing type: Fluid Dynamic Bearing (FDB)
- Voltage: 12 V DC
- Current: 0.11 A
- Start‑up voltage: 3.3 V DC
- Connector: 4‑pin PWM
- Cable length: 400 mm
- Operating ambient temperature: 0–40 °C
