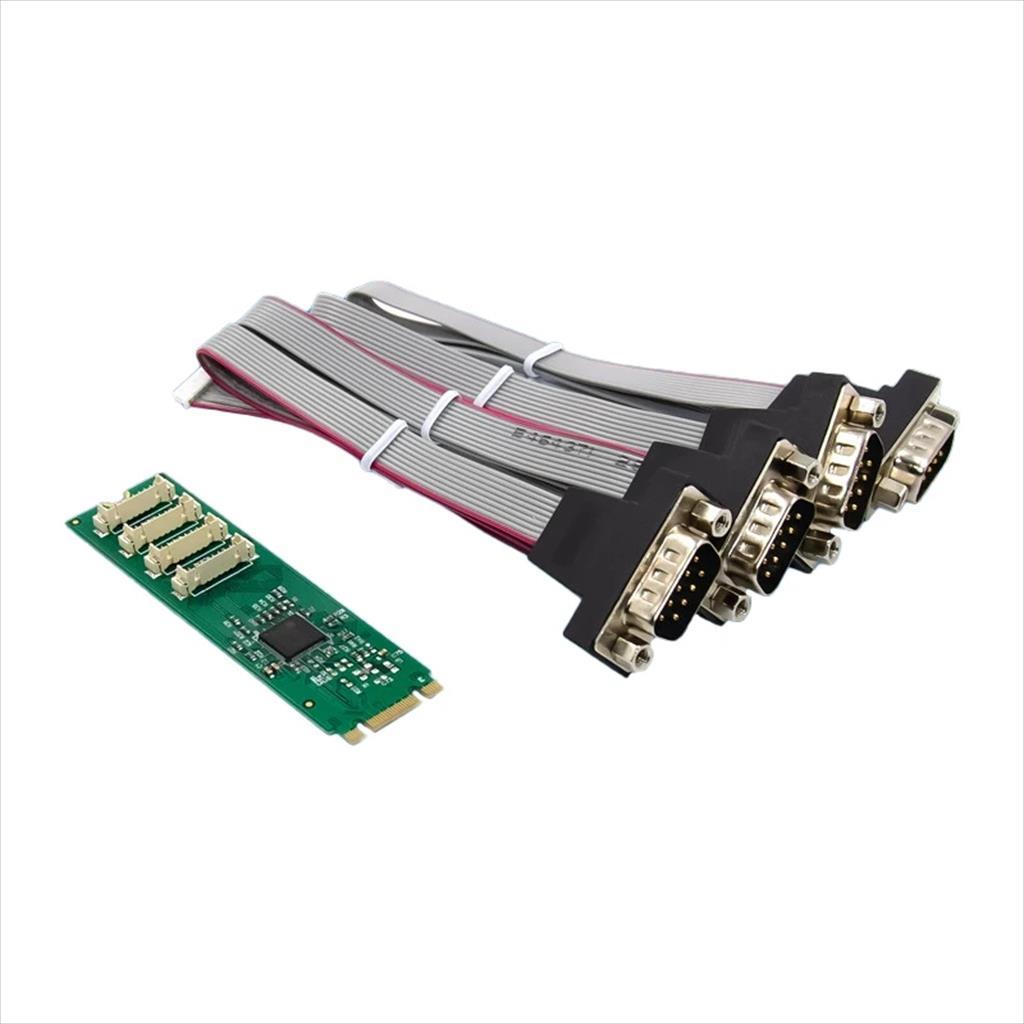

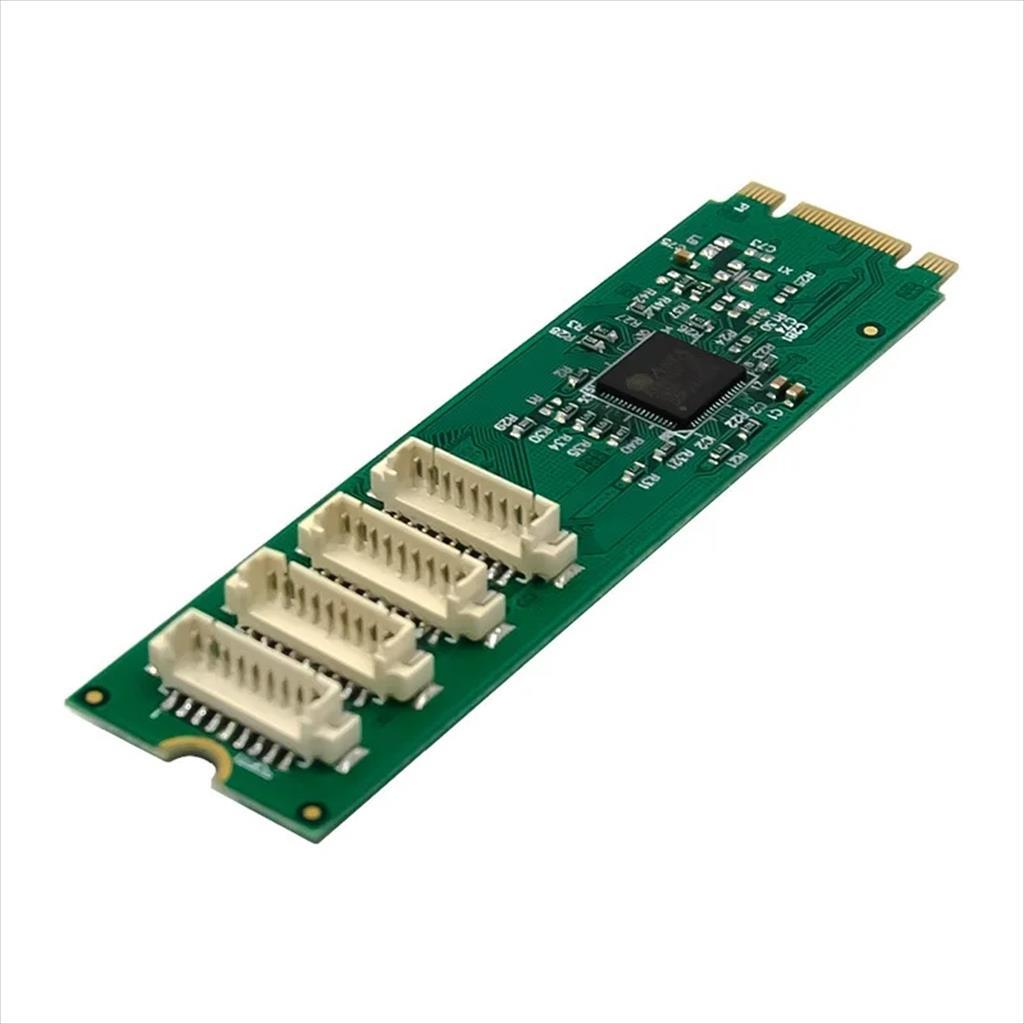

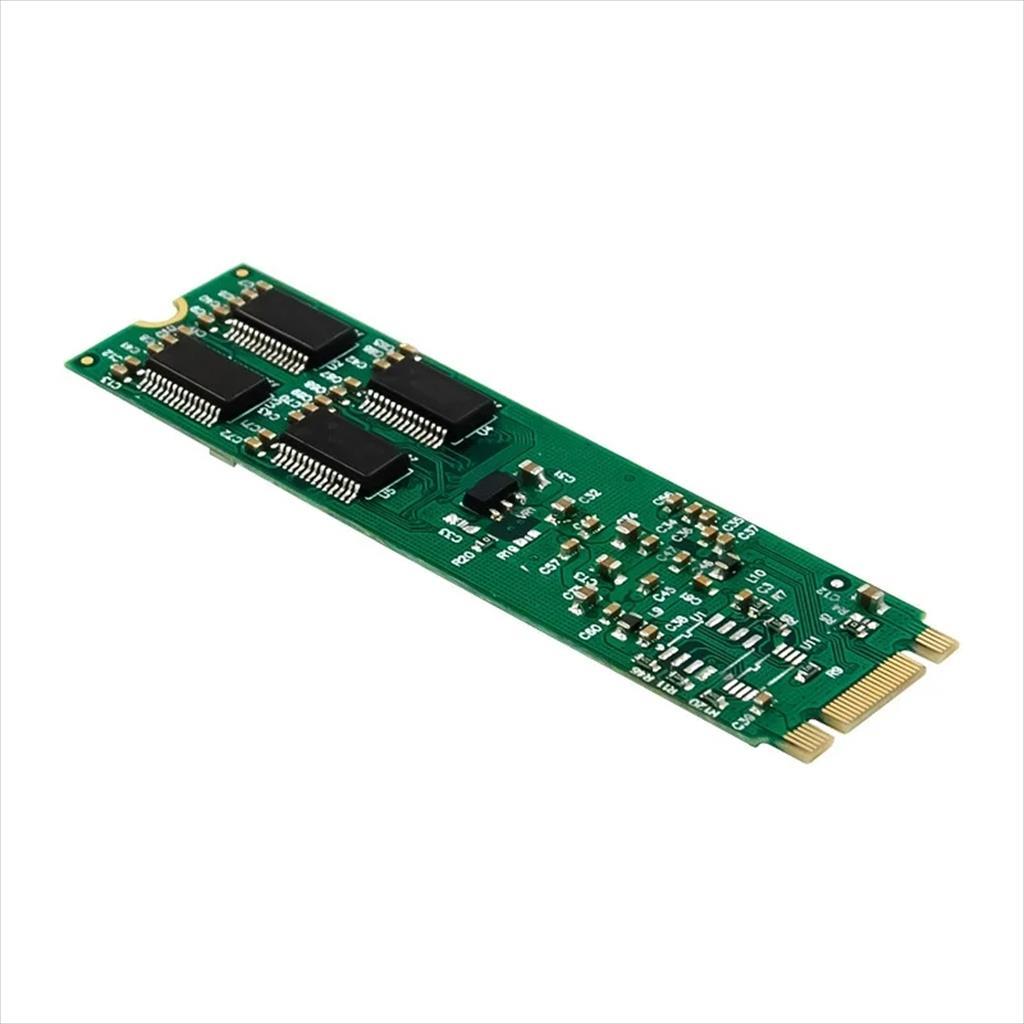

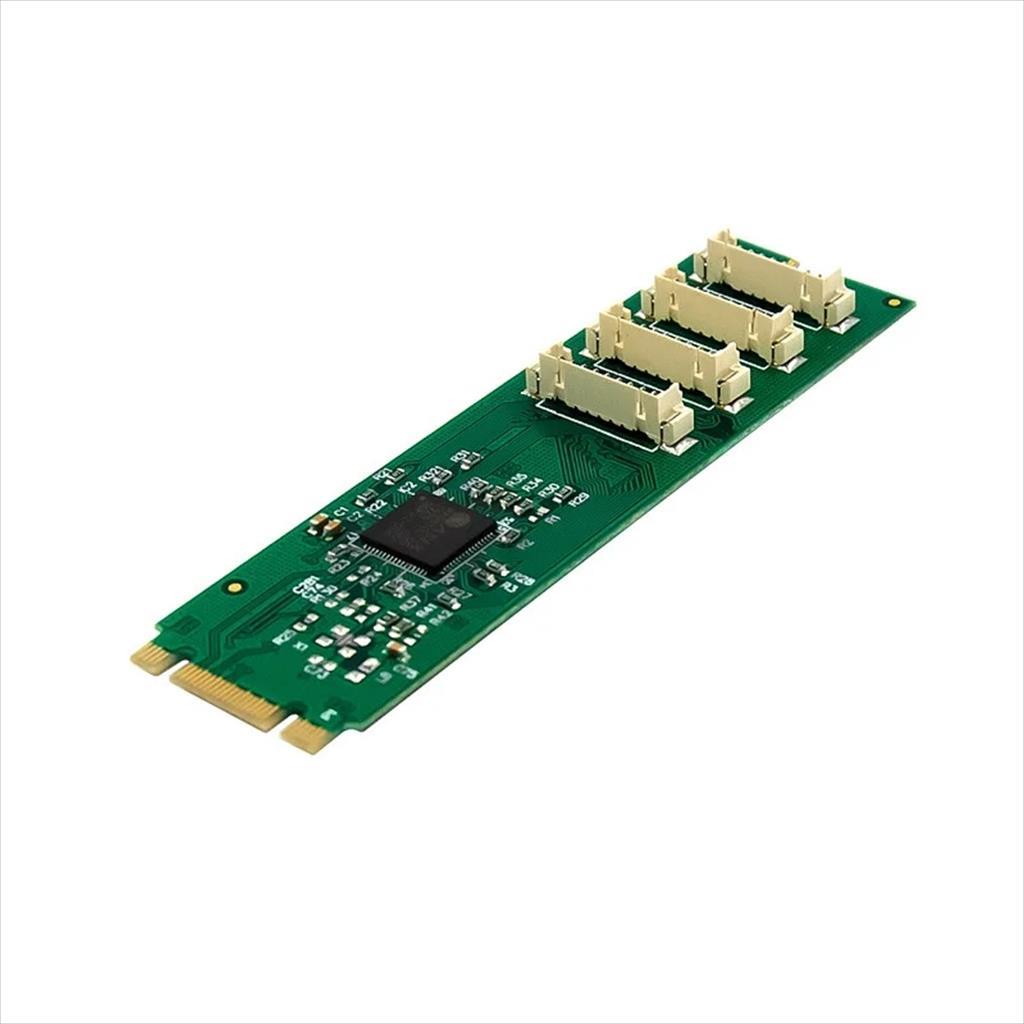

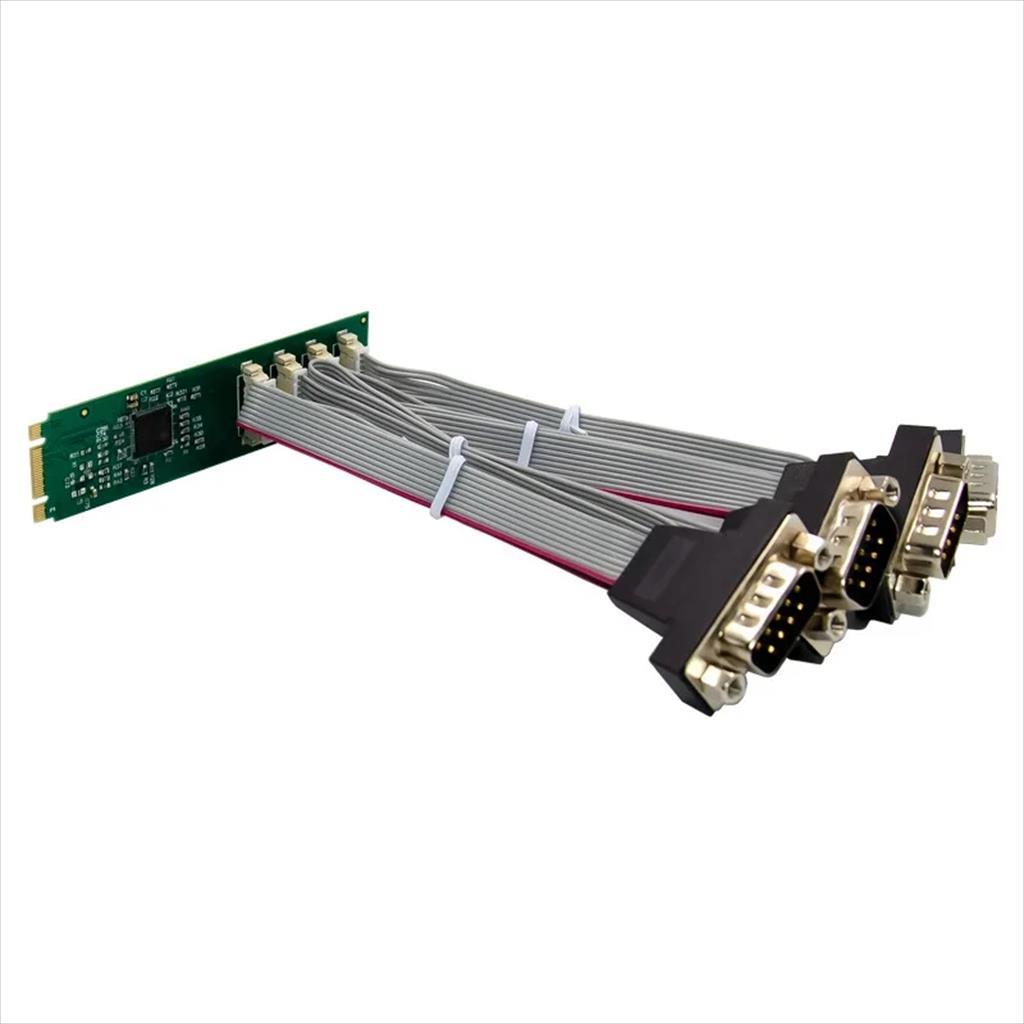

Model Name: CONVERTOR M.2 TO COM X4, TXB179
Specifications:
- Single-channel (x1) PCI-Express endpoint controller with integrated PHY
- Compliant with PCI Express 2.0 Gen 1
- Compliant with PCI Express M.2 specification version 1.0
- Compliance with PCI Power Management 1.2
- Connector type: M.2 B+M Key
- Size: 22 x 80mm
Serial Port Interface:
- Dual UART or Quad UART
- Support RS-232 / RS-422 / RS-485 multi-protocol
- Bi-directional speed of each port up to 25 Mbps
- Full serial modem control
- Support hardware and software flow control
- Support 5, 6, 7, 8, and 9-bit serial formats
- Support even, odd, none, space, and mark parity
- Support custom baud rate through internal PLL or external clock
- Support on-chip 256-byte deep FIFO in the transmission and reception path of each serial port
- Support remote wake-up and power management functions
- Support shutdown of serial port transceiver
- Support slow IrDA mode (up to 115200bps) on all serial ports
- Support multi-point applications in 9-bit mode
- Support DMA burst transmission
Hardware Application:
- Serial connected equipment
- Serial network/monitoring equipment
- Data acquisition system
- POS terminal and industrial PC
- Serial I/O/USB for add-on cards
- I/O expansion for embedded systems
System Requirements:
- Linux, Windows XP / Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64-bit
- An available M.2 M+B key slot
