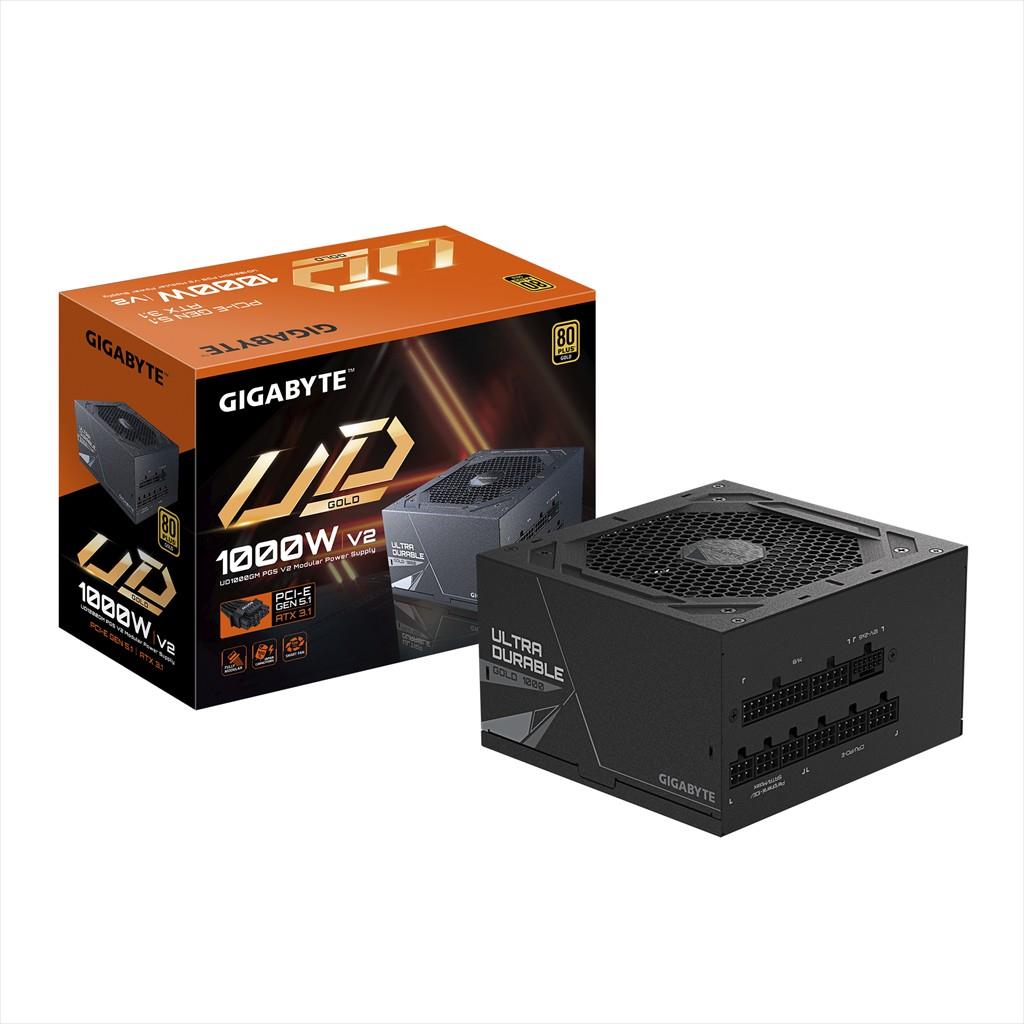

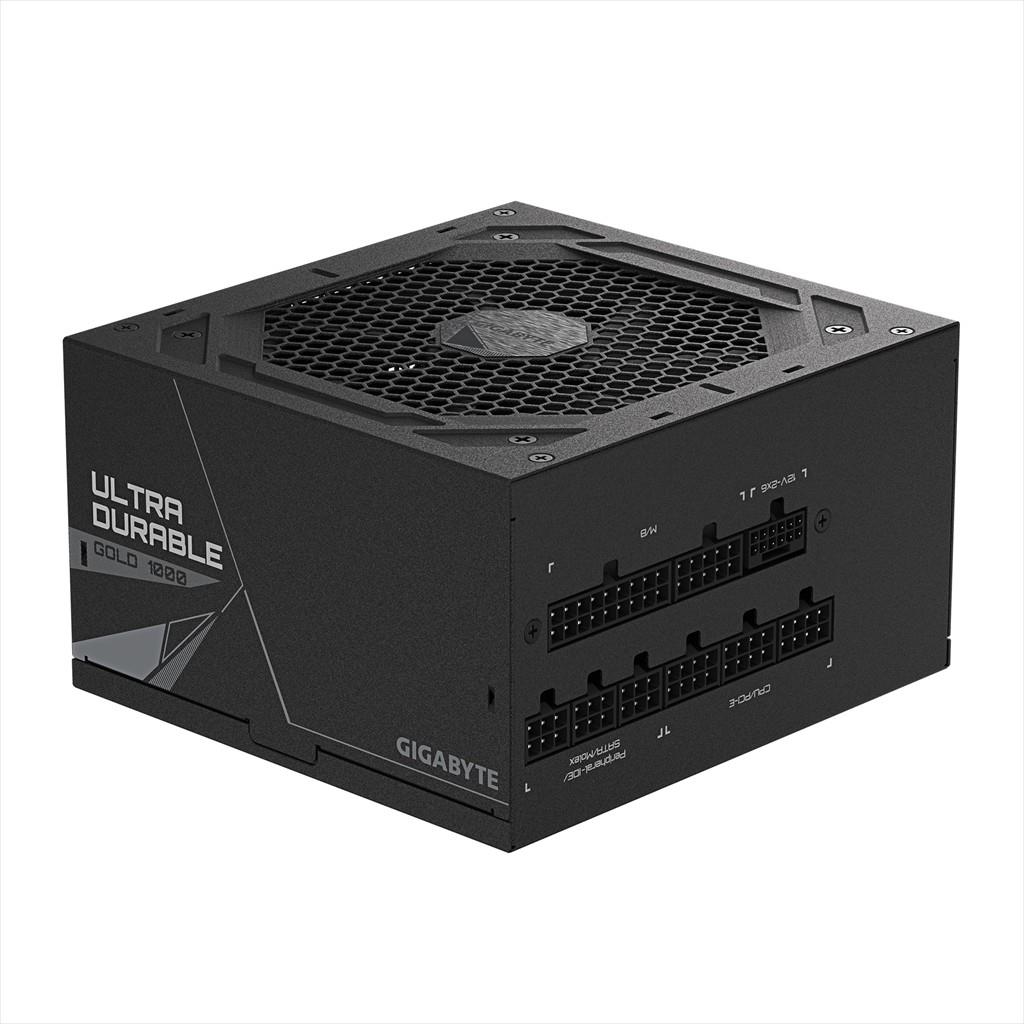

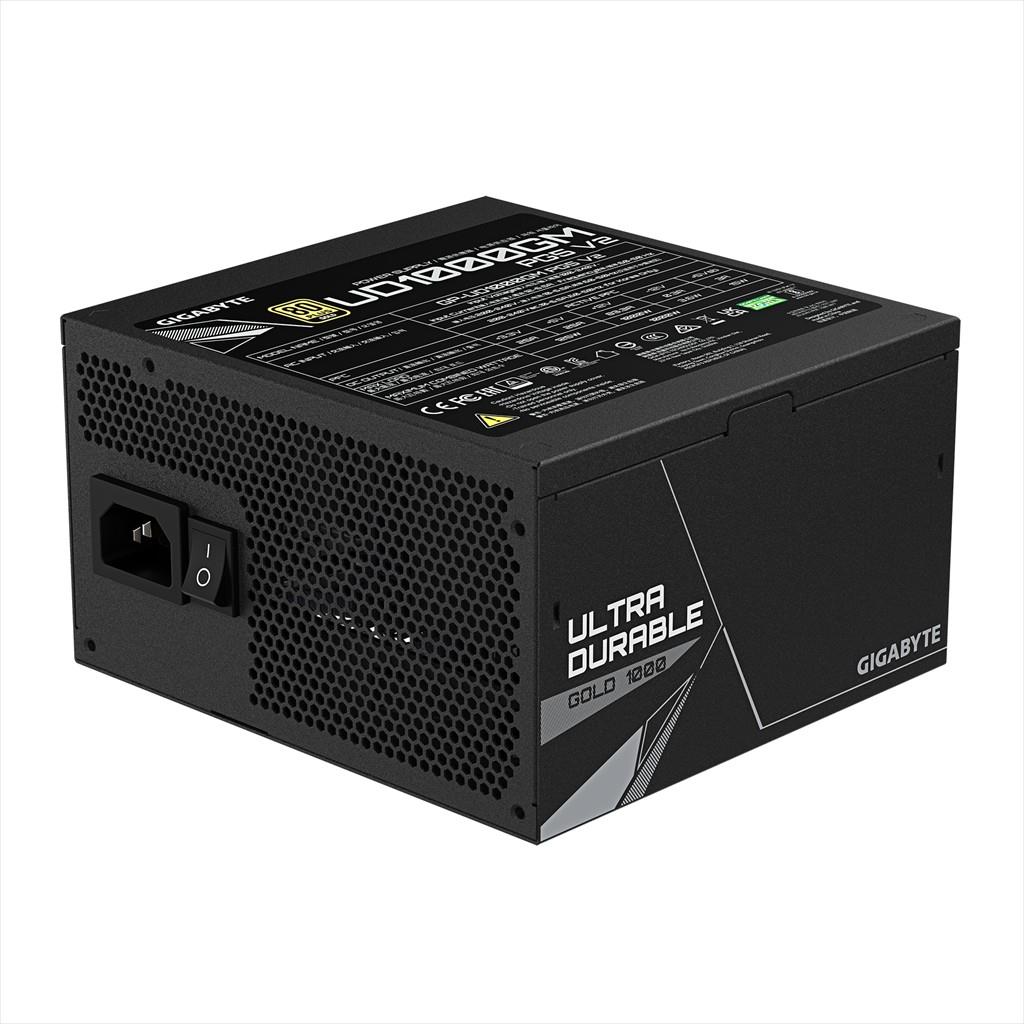

Model Name: UD1000GM PG5 V2
Features
- Ultra Durable design with 100% Japanese capacitors
- Intel ATX 3.1 and PCIe Gen 5.1 ready for latest platforms and GPUs
- 80 PLUS Gold certified with Cybenetics Platinum-level efficiency
- Fully modular cable design with embossed all-white cables for clean builds
- Powerful single +12 V rail for stable high-load performance
- Optimized thermal solution with 120 mm smart hydraulic bearing (HYB) fan
- Active PFC and up to 90% efficiency at typical load
- Comprehensive protections including OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP
- Compact 140 mm depth ATX housing for wider case compatibility

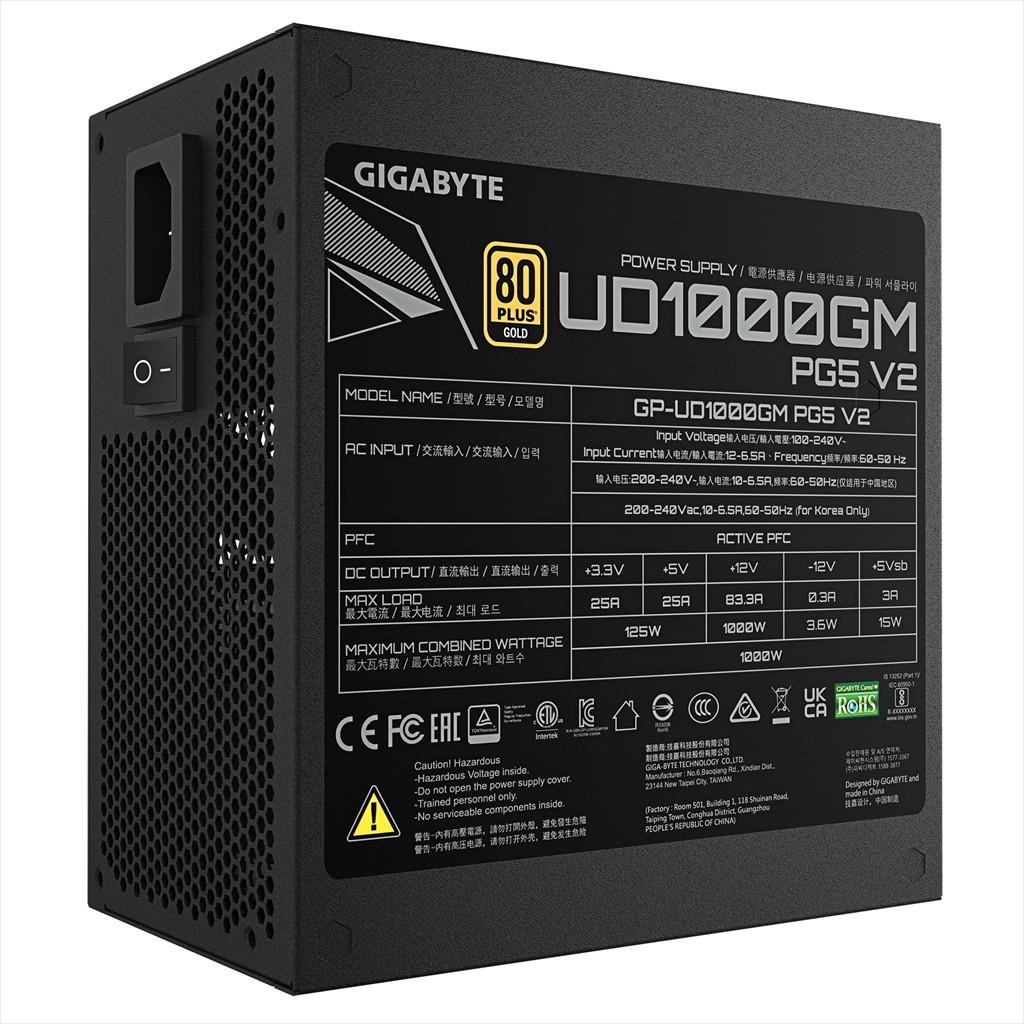

Specification
- Type / form factor: Intel ATX 12V v3.1
- Output capacity: 1000 W
- Input voltage: 100–240 Vac (full range)
- Input current: 15–6.5 A
- Input frequency: 50–60 Hz
- PFC: Active PFC (>0.9 typical)
- 80 PLUS certification: Gold
- Efficiency: Up to 90% at typical load
- Cybenetics rating: Platinum efficiency
- Rail design: Single +12 V rail
- Fan type: 120 mm hydraulic bearing (HYB) fan
- Dimensions (W × D × H): 150 × 140 × 86 mm
- MTBF: >100,000 hours
- Protections: OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP
- Power good signal: 100–150 ms
- Hold-up time: >16 ms
- Cable type: Embossed, all white (fully modular)

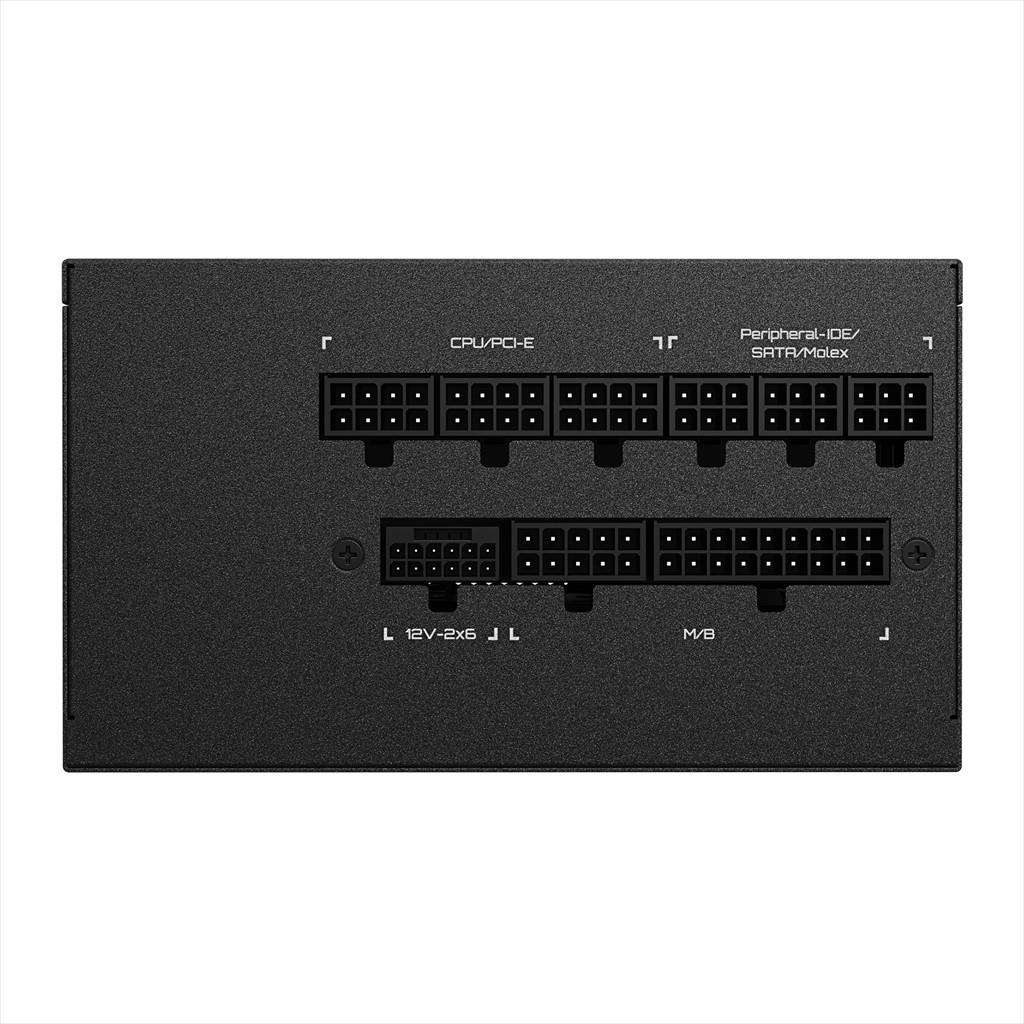

- Connectors:
- • 1 × ATX/MB 20+4-pin: 610 mm
- • 2 × CPU/EPS 4+4-pin: 650 mm + 200 mm (daisy-chain on one cable)
- • 4 × PCIe 6+2-pin: 600 mm + 150 mm (on 2 cables)
- • 1 × PCIe 12+4-pin (12VHPWR): 700 mm
- • 8 × SATA: 600 mm + 150 mm + 150 mm + 150 mm (×2 cables)
- • 3 × 4-pin peripheral + 1 × 4-pin floppy: 500 mm + 150 mm + 150 mm + 150 mm
