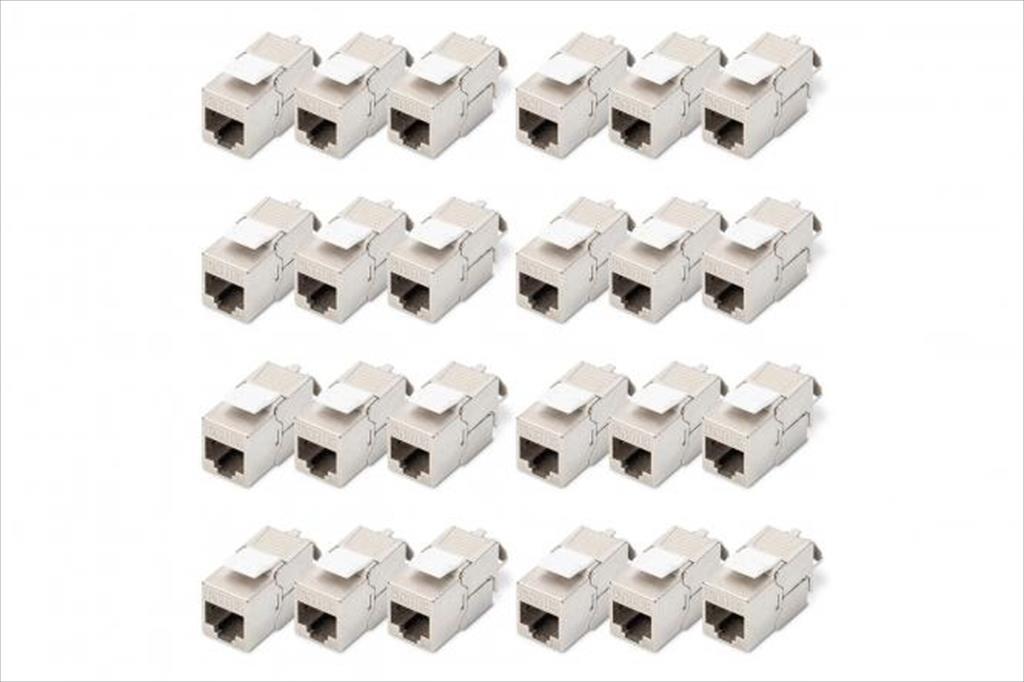

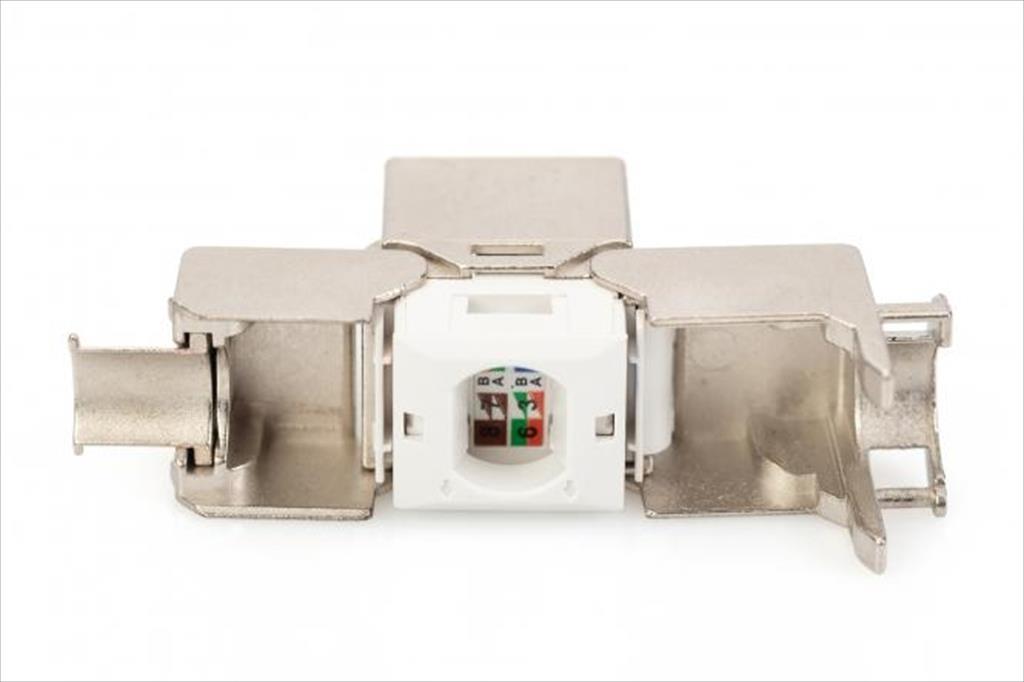

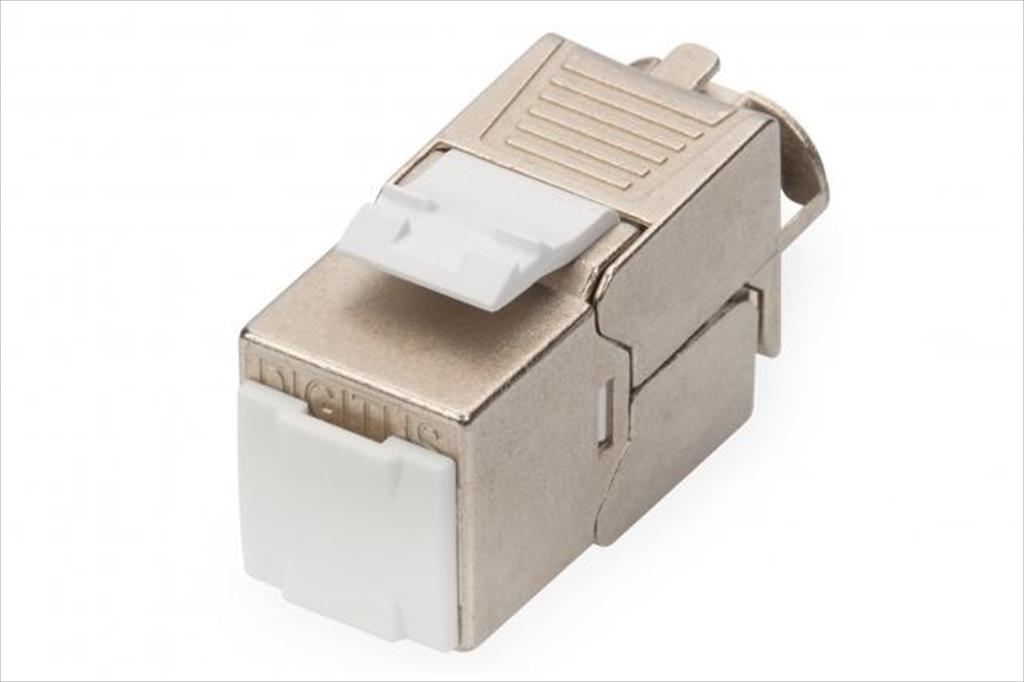

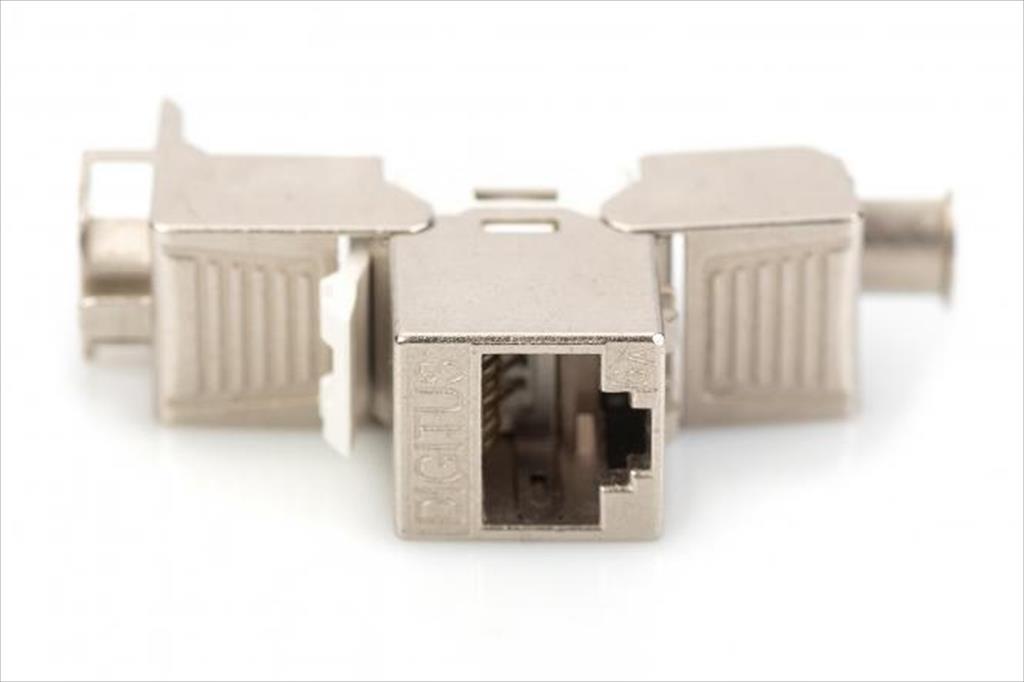

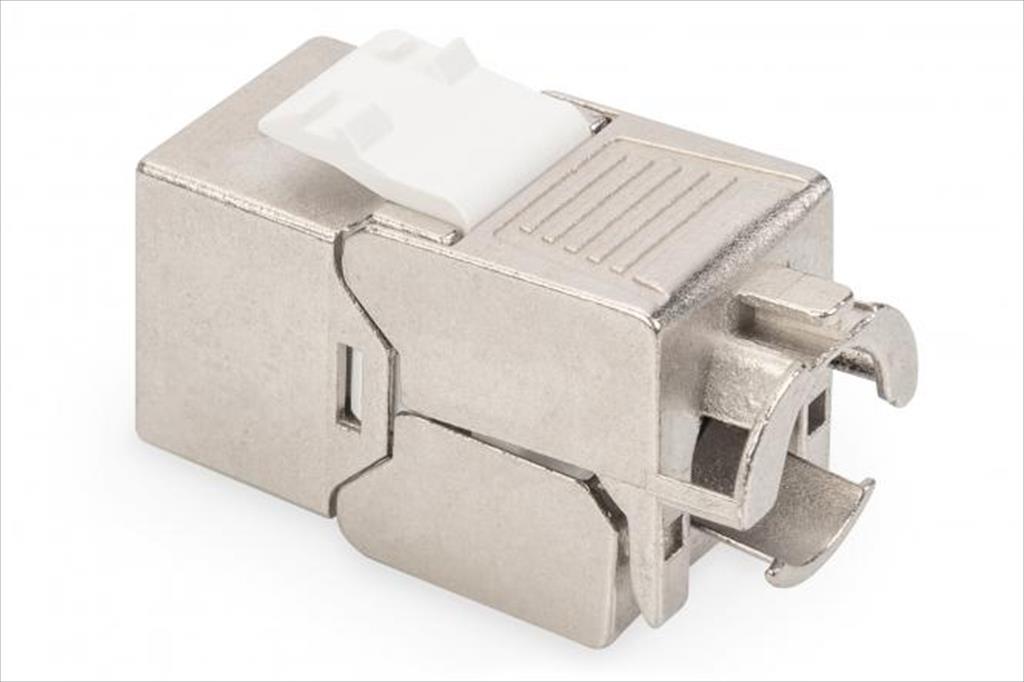

NET MODUL RJ-45 Cat6A Keystone Jack, 360 degree shielded, toolfree, DIGITUS, DN-93615-24

Model name: DIGITUS Cat6A Keystone Jack

Specifications:

• Category: 6A 10G Base-T, 500 MHz
• ISO/IEC 11801: 3rd edition
• EN 50173-1: Yes
• Suitable for PoE/PoE+/4PPoE: IEEE 802.3af, 802.3at, 802.3bt
• Suitable for distribution panel and junction box mounting: Yes
• RJ45 Jack: 8P8C
• Cable installation via insulation-displacement connectors: Color coded in accordance with EIA/TIA 568 A & B
• Cable grip and fixation: Intelligent cable manager
• Tool-free mounting connection: Yes
• 360° shield contact: Yes
• Case material: Zinc die-cast – nickel-plated
• Contact material: Phosphor bronze
• Contact coating: Nickel, gold-plated 0.5 µ
• Insertion force: Max. 30N (as per IEC 60603-7-51)
• Holding force: 7.7 kg between jack and plug
• Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
• Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
• Tested with AWG 22/1 solid installation cable: DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Tool-free installation: Yes, using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
• Intelligent cable manager: Resealable
• CAT 6A Keystone Module: Shielded, set= 24 pieces
