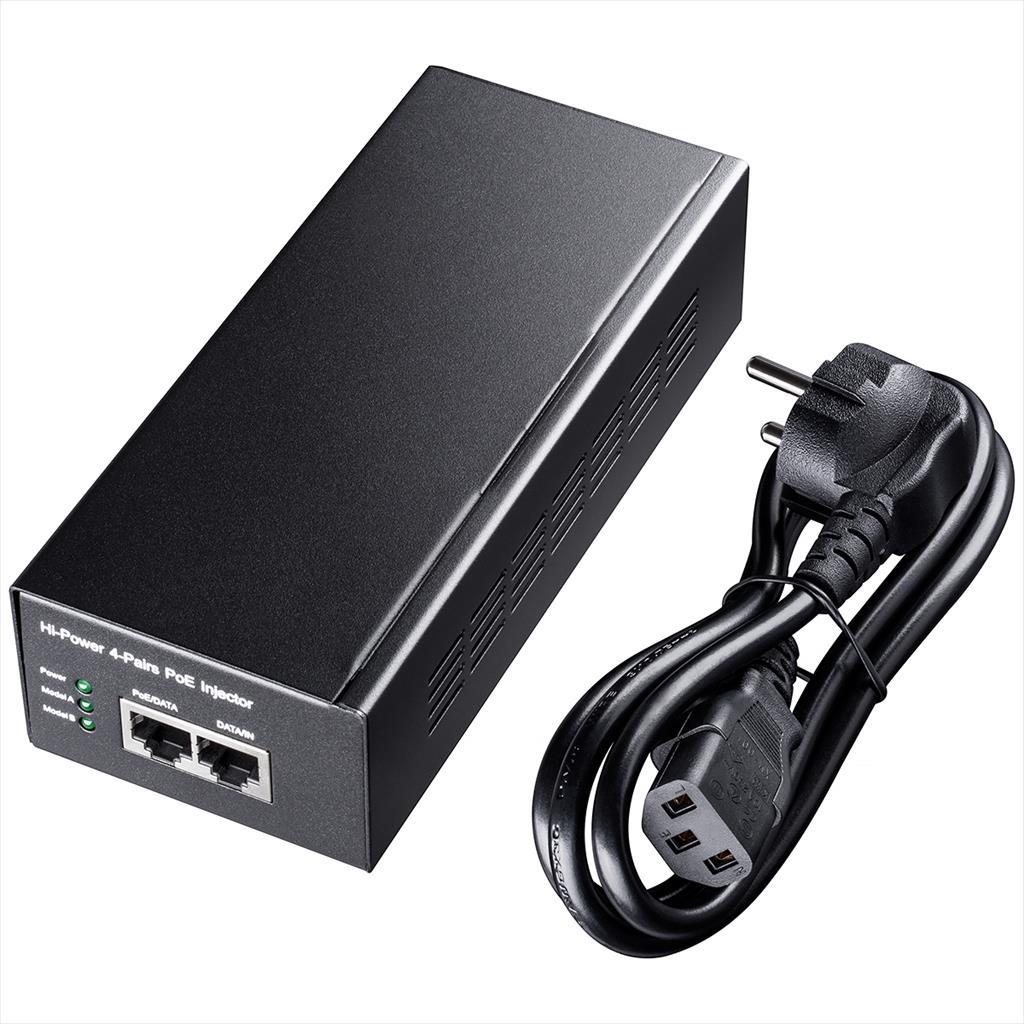

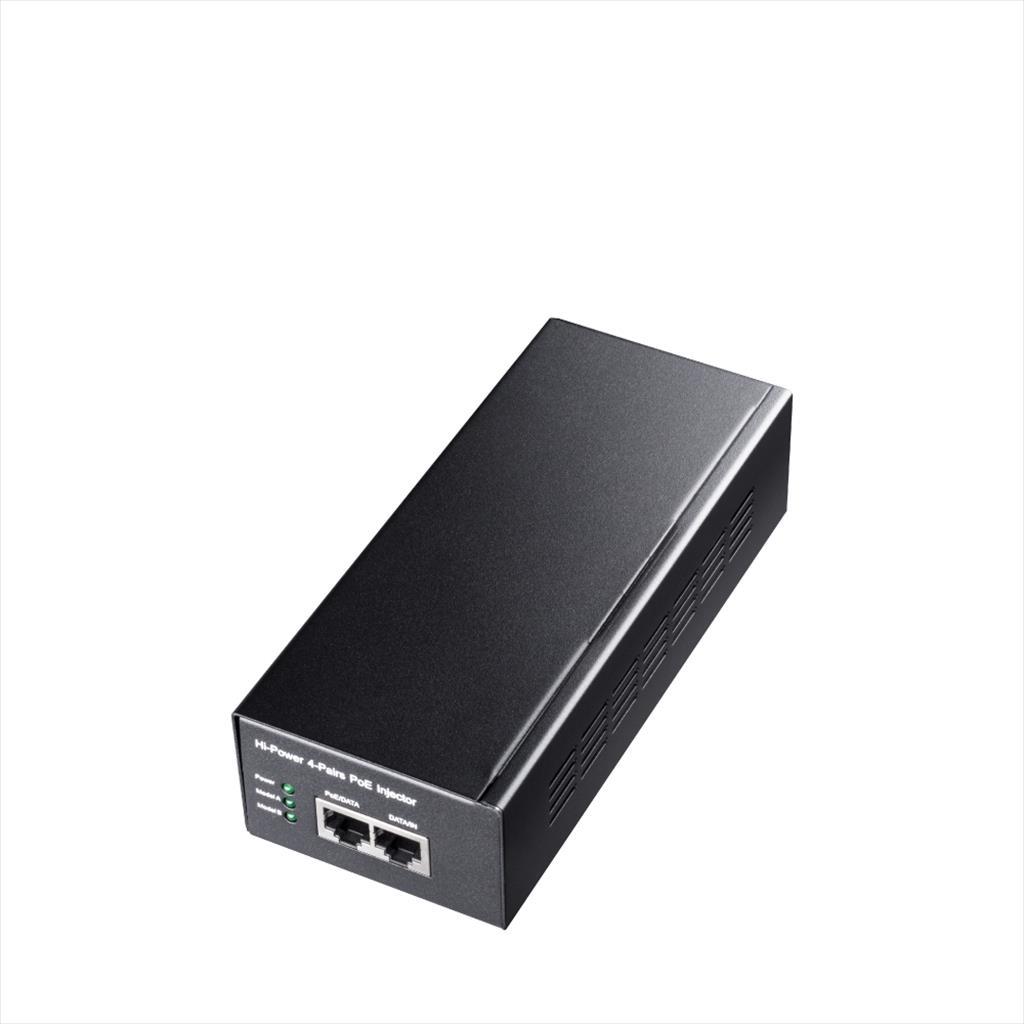

NET INJECTOR CUDY POE++ 60W POE300

Model Name: CUDY POE300

Specifications

• No. of Channels: 1
• Pass Through Data Rates: 10/100/1000 Mbps
• Power over Ethernet Output:
  • Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
  • Output Power Voltage: 53Vdc
  • User Port Power: 60W
• Input Power Requirements:
  • AC Input Voltage: 100 to 240 VAC
  • AC Input Current: 0.5A 100-240 VAC
  • AC Frequency: 50 to 60 Hz
• Dimensions: 145mm x 60mm x 40mm
• Indicators:
  • System Indicator: AC Power
  • User Indicator: Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt (60W)

Environmental Conditions

• Operating Ambient Temperature: 0 to 40℃
• Operating Humidity: Maximum 85%, Non-condensing
• Storage Temperature: -40 to 60℃
• Storage Humidity: Maximum 85%, Non-condensing
