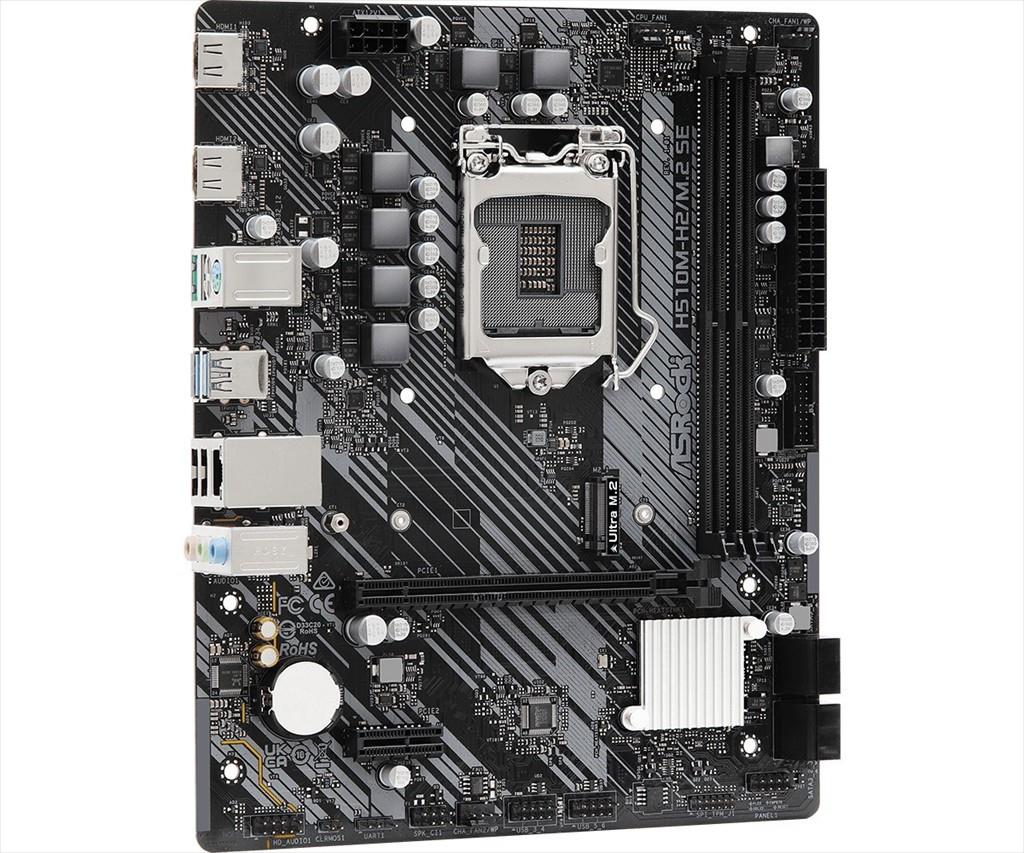

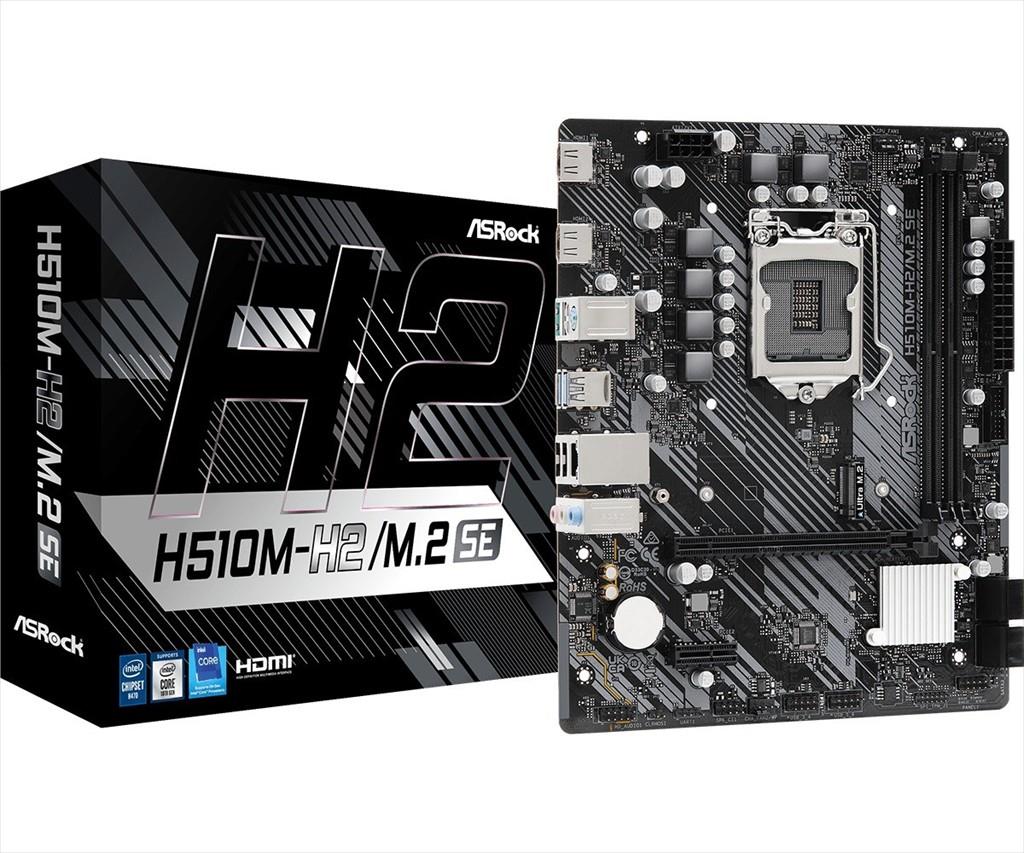

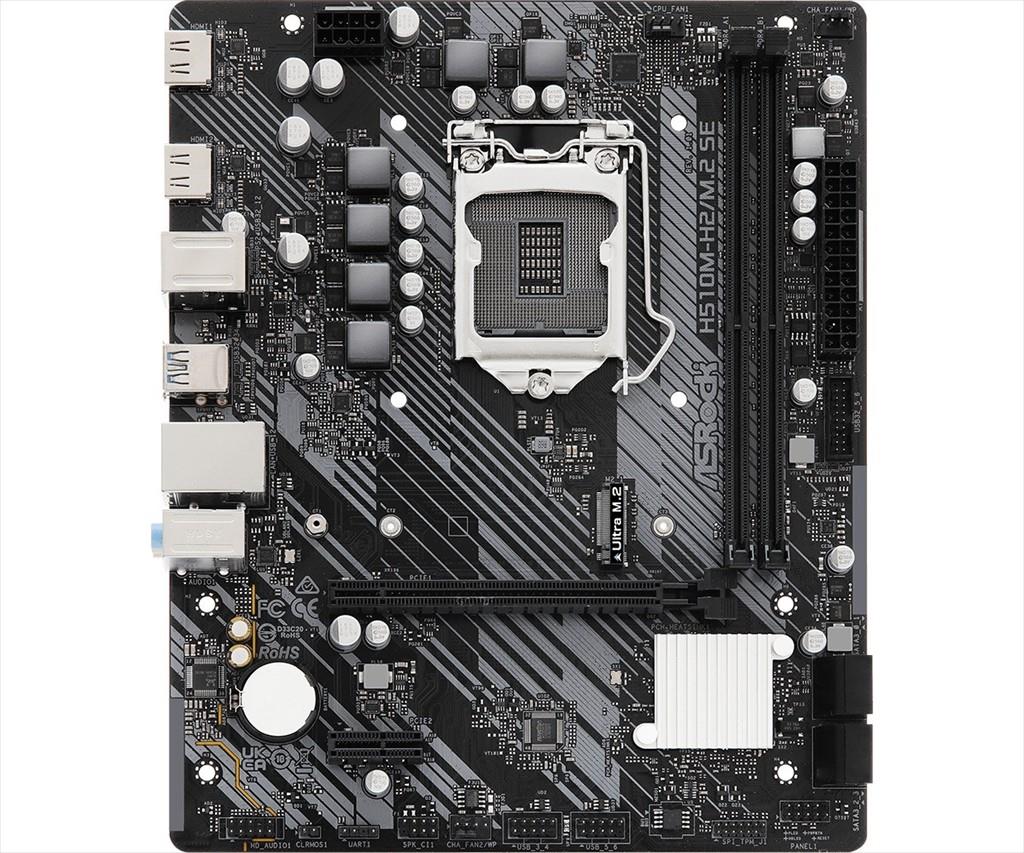

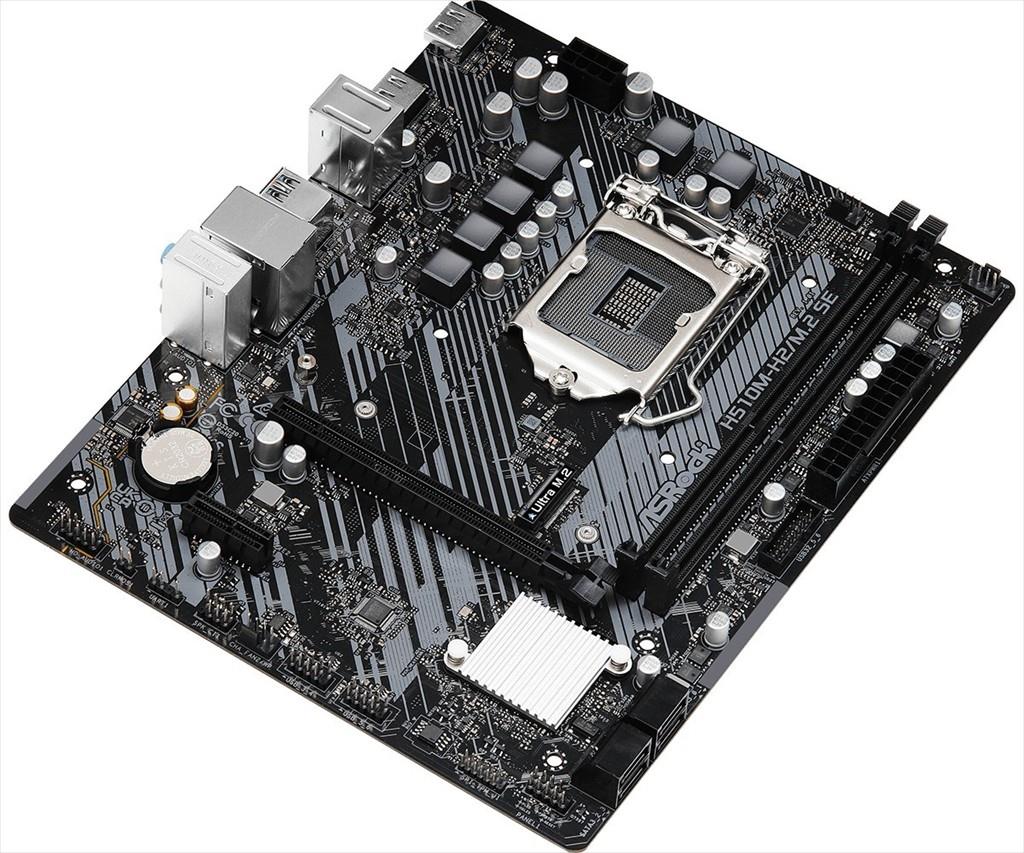

MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE
MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE - Image 2
MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE - Image 3
MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE - Image 4
MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE - Image 5
бесплатна достава

MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE

4.200 ден

На залиха

Сакаш дополнителен попуст? Стани член со активирање на 1337 членство!
Цена со 1337 членство: 3.950 ден
Дознај повеќе

Додади во омилени
SKU: 18662 Категорија: Ознаки: ,
Brand:ASROCK

Model Name: ASRock H510M-H2/M.2 SE

microATX Intel LGA 1200 motherboard · DDR4
PCIe 4.0 x16 · M.2 & 4× SATA III · Gigabit LAN · HDMI ×2

Features

  • microATX motherboard for Intel® Core™ i3/i5/i7/i9 (LGA 1200)
  • Dual‑channel DDR4 memory support up to 64 GB (2 × DIMM)
  • PCIe 4.0 x16 slot for modern graphics cards plus PCIe 3.0 x1 expansion slot
  • M.2 and 4 × SATA III ports for HDD and SSD storage with RAID 0/1/5/10 support
  • Realtek 8111H Gigabit Ethernet for reliable wired networking
  • Realtek ALC897 7.1‑channel HD audio via 3 audio jacks
  • Two HDMI outputs supporting up to 7680 × 4320 resolution plus PS/2 and USB legacy support
  • PC health monitoring (voltage, temperature, CPU, fan) via UEFI AMI BIOS
  • Includes SATA cables and drivers for easy setup

Specification

  • Form factor: micro ATX
  • Dimensions (W × D): 231 × 187 mm
  • Chipset family: Intel
  • Chipset: Intel H470
  • CPU socket: LGA 1200
  • Processor manufacturer: Intel
  • Supported CPU series: Intel® Core™ i3 / i5 / i7 / i9, Pentium® Gold, Celeron® (LGA 1200)
  • Max SMP processors: 1
  • Memory type: DDR4‑SDRAM (unbuffered)
  • Memory channels: Dual‑channel
  • Memory slots: 2 × DIMM
  • Max memory: 64 GB
  • Supported memory speeds: 2133 / 2400 / 2666 / 2800 / 2933 / 3200 MHz
  • Graphics outputs: 2 × HDMI, 1 × VGA (D‑Sub)
  • Max resolution: 7680 × 4320 pixels
  • HDCP: Yes
  • PCIe slots:
  • • 1 × PCIe x16 (Gen 4.x)
  • • 1 × PCIe x1 (Gen 3.x)
  • Storage interfaces: M.2, SATA III
  • Storage types: HDD & SSD
  • M.2 support: Yes
  • SATA III ports: 4
  • RAID support: Yes (RAID 0, 1, 5, 10)
  • LAN: Realtek 8111H Gigabit Ethernet
  • Ethernet: 1 × RJ‑45 (1 Gbit/s)
  • Wi‑Fi: No
  • Audio codec: Realtek ALC897
  • Audio jacks: 3 × 3.5 mm
  • Front panel audio header: Yes
  • Power connectors: 1 × 24‑pin ATX, 1 × 12 V (8‑pin) CPU
  • CPU fan connector: Yes
  • TPM connector: Yes
  • USB (internal headers): 2 × USB 2.0, 1 × USB 3.2 Gen 1 (5 Gb/s)
  • USB (rear I/O): 2 × USB 2.0, 4 × USB 3.2 Gen 1 Type‑A (5 Gb/s)
  • Other rear I/O: 1 × PS/2 (keyboard or mouse), audio connectors, LAN
  • Supported OS: Windows 10 x64, Windows 11 x64
  • BIOS: UEFI AMI
  • PC health monitoring: Voltage, temperature, CPU, fan
  • Cables included: SATA
  • Drivers included: Yes
