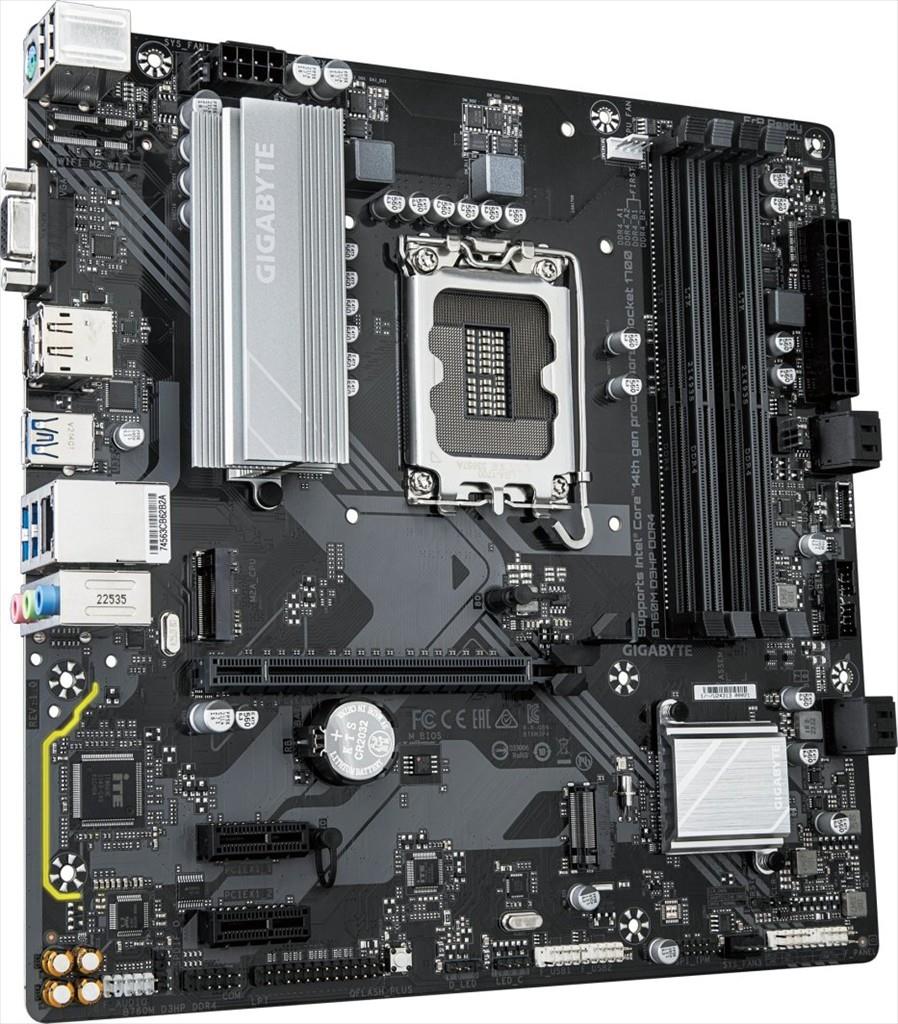

MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN
MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN - Image 2
MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN - Image 3
MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN - Image 4
уште 1 на залиха
бесплатна достава

MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN

6.380 ден

На залиха

Сакаш дополнителен попуст? Стани член со активирање на 1337 членство!
Цена со 1337 членство: 5.900 ден
Дознај повеќе

Додади во омилени
SKU: 18666 Категорија: Ознаки: ,
Brand:GIGABYTE

Model Name: B760M D3HP DDR4

microATX Intel B760 motherboard · LGA 1700 · DDR4
4× DIMM up to 128 GB · 2× PCIe 4.0 M.2 · GbE LAN · USB‑C front header

Features

  • Supports Intel® Core™ 14th / 13th / 12th Gen processors (LGA 1700)
  • Hybrid 4+1+1 phase digital VRM solution for stable CPU power delivery
  • Dual-channel DDR4 with 4 × DIMM slots and XMP support up to 128 GB
  • Next‑gen storage with 2 × PCIe 4.0 x4 M.2 connectors (2280 / 22110)
  • Fast networking via Gigabit Ethernet (GbE LAN)
  • Extended connectivity with front USB‑C 5 Gb/s, DP, HDMI and D‑Sub video outputs
  • Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
  • Q‑Flash Plus enables BIOS updates without installing CPU, memory or GPU
  • RAID 0/1/5/10 support on SATA for flexible storage configurations
  • High Definition 7.1‑channel audio powered by Realtek codec

Specification

  • Form factor: microATX (244 × 244 mm)
  • CPU socket: Intel LGA 1700
  • Chipset: Intel B760
  • Memory type: DDR4
  • Memory slots: 4 × DIMM
  • Max total memory: 128 GB
  • Memory mode: Dual‑channel
  • Supported memory: Non‑ECC UDIMM, Unbuffered ECC memory (support), XMP profiles
  • PCIe slots:
  • • 1 × PCIe 4.0 x16 (x16 mode)
  • • 2 × PCIe 3.0 x1
  • M.2 slots: 2 × M.2 PCIe 4.0 (x4/x2, 2280 / 22110)
  • SATA ports: 4 × SATA III 6 Gb/s
  • RAID support: RAID 0 / 1 / 5 / 10 (SATA)
  • LAN: 1 × 1 Gbit/s (1000Base‑T), Realtek
  • Audio codec: Realtek High Definition Audio
  • Audio channels: 7.1 (8‑channel)
  • Rear video outputs: 1 × DisplayPort 1.2, 1 × HDMI 2.1, 1 × D‑Sub
  • Rear I/O (USB):
  • • 3 × USB‑A 5 Gb/s (USB 3.2 Gen 1)
  • • 2 × USB‑A 2.0
  • Rear I/O (other): 1 × RJ‑45 LAN, 3 × 3.5 mm audio jacks, 1 × PS/2 (keyboard or mouse)
  • Internal USB headers:
  • • 2 × USB 2.0 headers (up to 2 ports)
  • • 1 × USB 5 Gb/s (USB 3.2 Gen 1) header (up to 1 port)
  • • 1 × USB‑C header (USB 5 Gb/s, up to 1 port)
  • Front panel headers: Front panel audio, front panel connector
  • Legacy headers: 1 × serial port header, 1 × parallel port header
  • Power connectors: 1 × 24‑pin ATX main, 1 × 8‑pin ATX 12 V
  • Fan headers: 2 × 4‑pin fan connectors
  • Standards & features: UEFI BIOS, Q‑Flash Plus, Smart Fan 6
